Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical - 3.4L.
  2. Remove the power steering hoses from the power steering hose retainers.

    Important:  Do NOT disconnect the power steering hoses from the power steering pump.

  3. Remove the power steering pump from the engine for clearance. Refer to POWER STEERING PUMP REPLACEMENT   .
  4. Use J 37609-A  in order to remove the pump pulley.

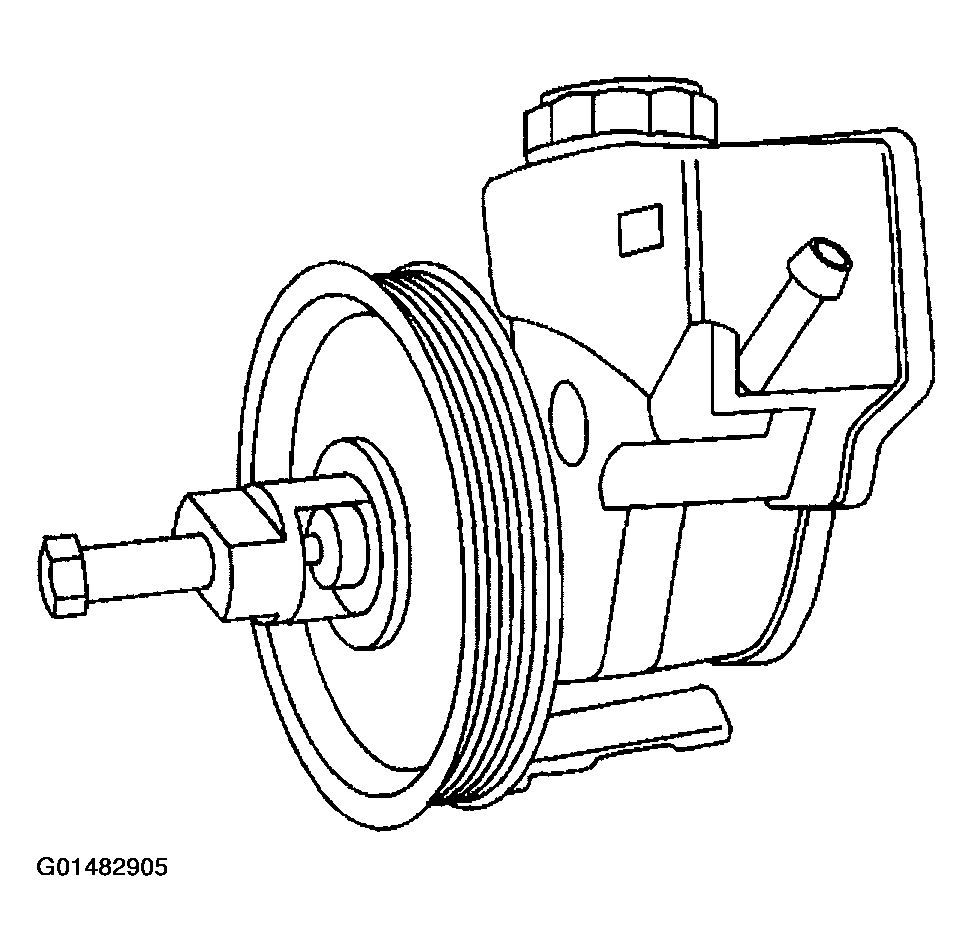

    Fig 1: Identifying Power Steering Pulley
    G01482905Courtesy of GENERAL MOTORS CORP.
