Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering gear heat shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the steering gear heat shield bolts.

    Tighten

    Tighten the steering gear heat shield bolts to 14 N.m (124 lb ft).

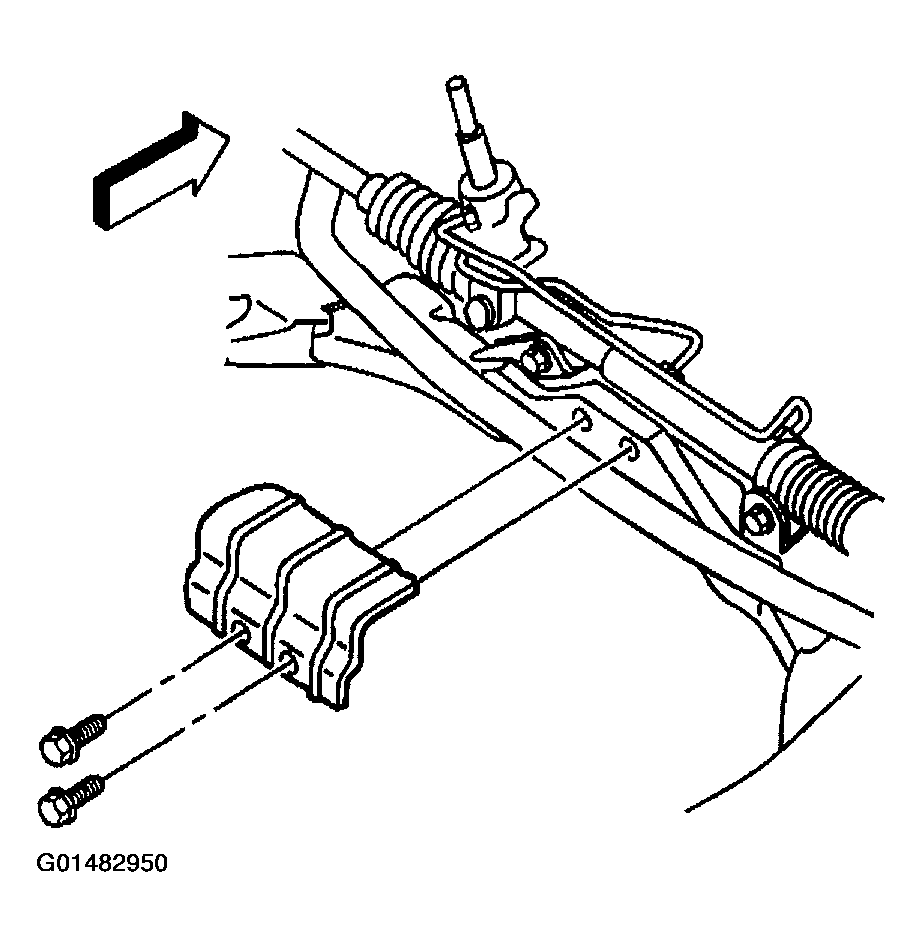

    Fig 1: Installing Steering Gear Heat Shield Bolts
    G01482950Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is equipped with all wheel drive, install the right side engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE  in Body Front End.
  4. Lower the vehicle.

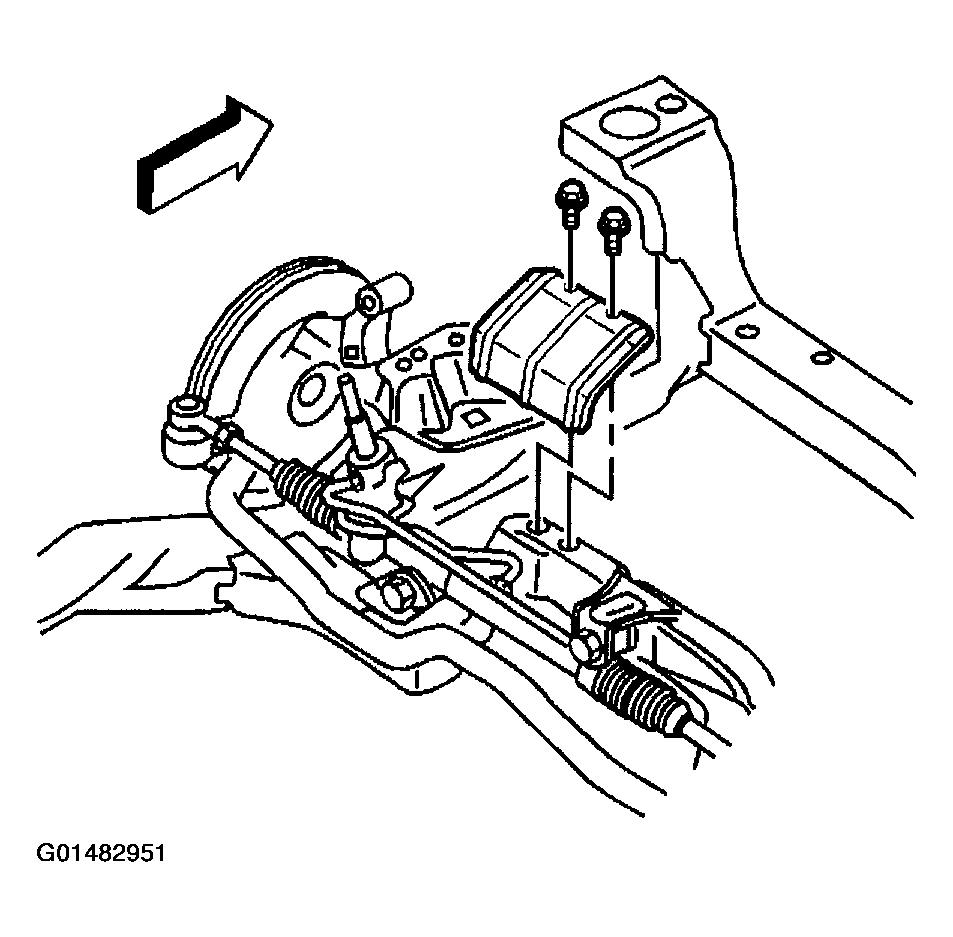

    Fig 2: Replacing Power Steering Gear
    G01482951Courtesy of GENERAL MOTORS CORP.
