Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Place the drain pan under the power steering pump and the power steering gear.
  3. Remove the return hose from the cooler pipe.
    CAUTION: Failure to disconnect the intermediate shaft from the rack and pinion stub shaft can result in damage to the steering gear and/or intermediate shaft. This damage can cause loss of steering control which could result in personal injury.
  4. Remove the intermediate shaft from the steering gear. Refer to INTERMEDIATE STEERING SHAFT REPLACEMENT  in Steering Wheel and Column.
    Fig 1: Removing Return Hose From Cooler Pipe
    G01482934Courtesy of GENERAL MOTORS CORP.
  5. Use a utility stand in order to support the frame rear.
  6. Remove the frame rear bolts.
  7. Use the utility stand in order to lower the frame rear to gain access.
  8. Remove the power steering gear hose clip.
  9. Remove the cooler pipe from the steering gear.

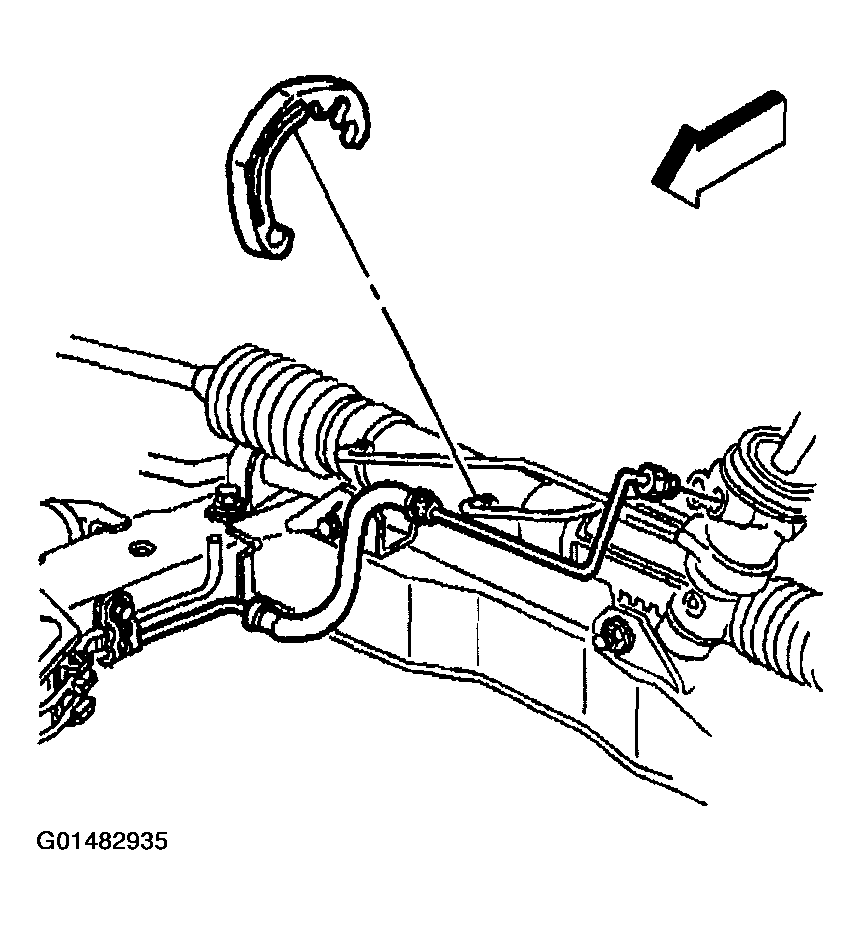

    Fig 2: Removing Power Steering Gear Hose Clip
    G01482935Courtesy of GENERAL MOTORS CORP.
  10. Remove the cooler pipe retainer bolt/screw.
  11. Remove the cooler pipe retainer.
  12. Remove the cooler pipe from the retainers on the frame.
  13. Remove the cooler pipe.

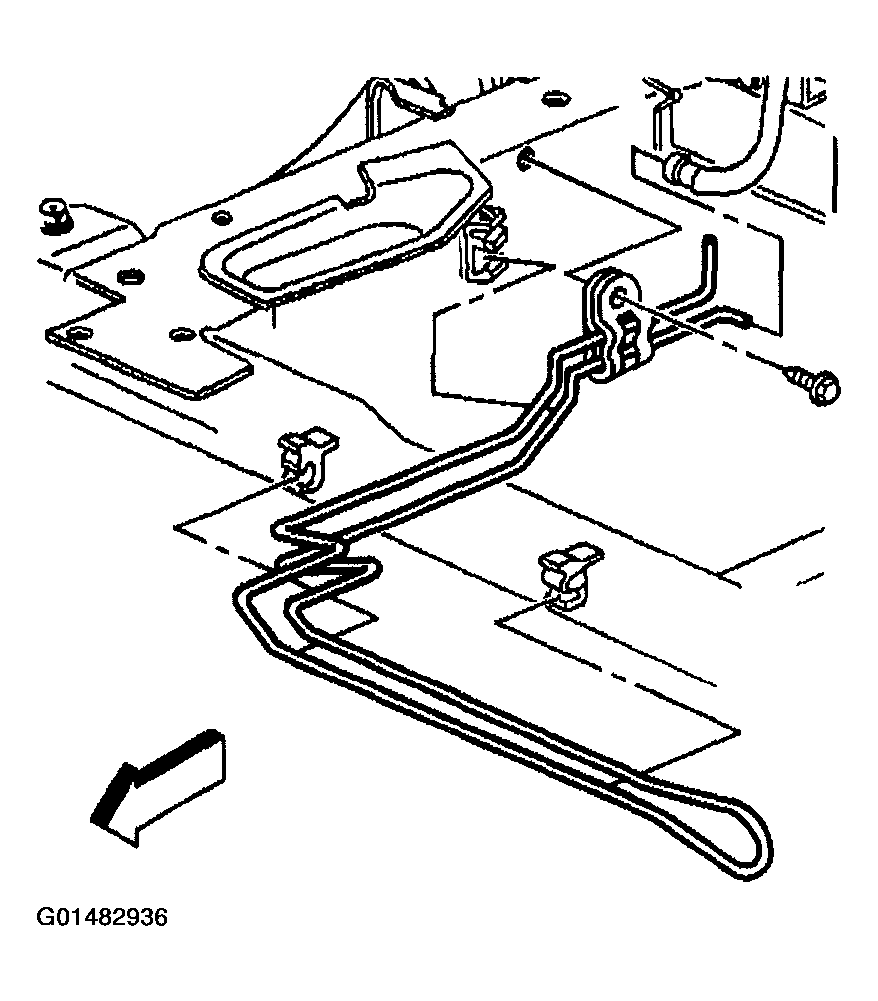

    Fig 3: Removing Cooler Pipe Retainer Bolt/Screw
    G01482936Courtesy of GENERAL MOTORS CORP.
