Rattle, Clunk, or Shudder Noise from the Power Steering System

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

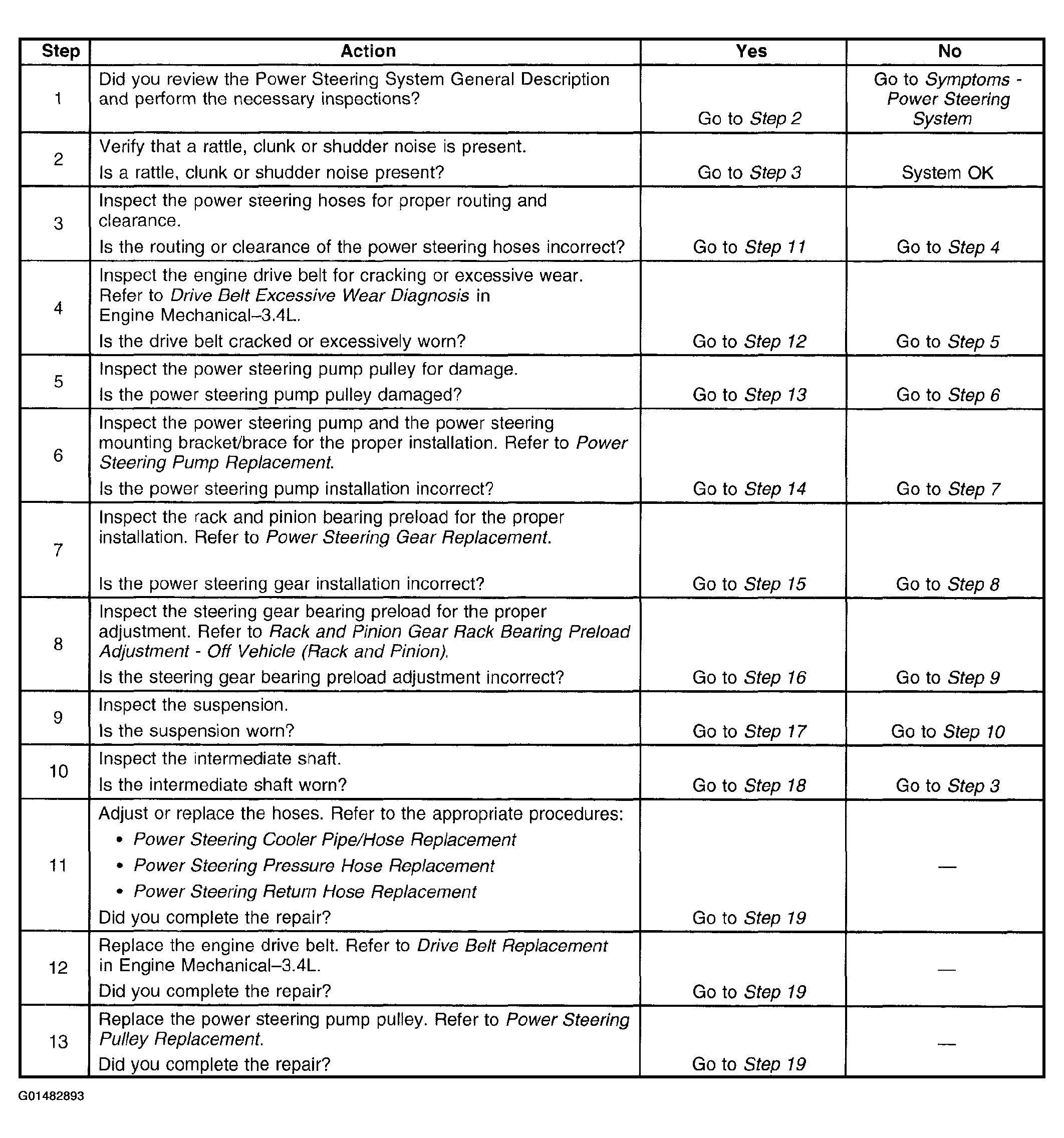

Fig 1: Shudder Noise Specification (1 Of 2)
G01482893Courtesy of GENERAL MOTORS CORP.

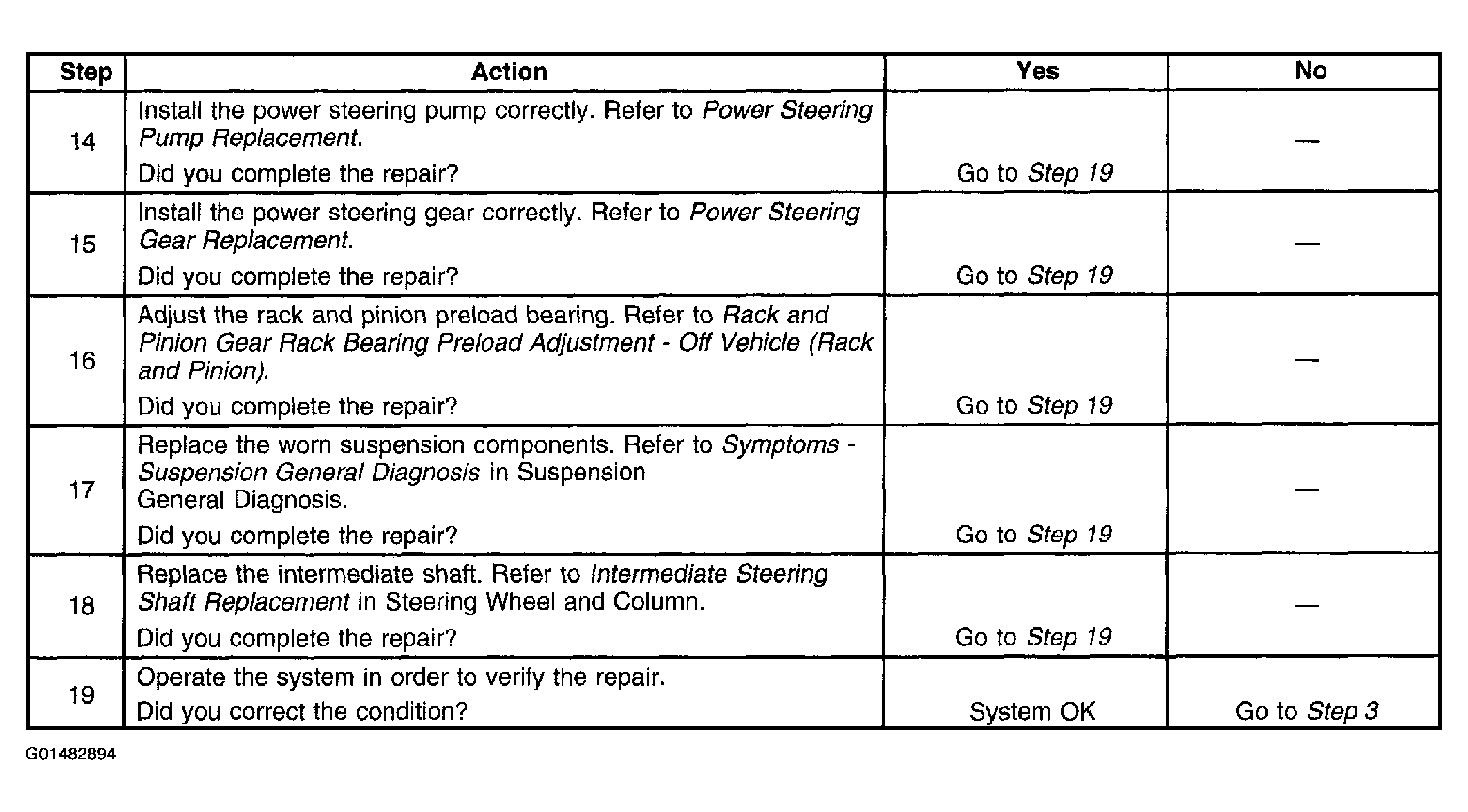

Fig 2: Shudder Noise Specification (2 Of 2)
G01482894Courtesy of GENERAL MOTORS CORP.
