Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper I/P trim pad. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  2. Disconnect the recirculation actuator electrical connector.

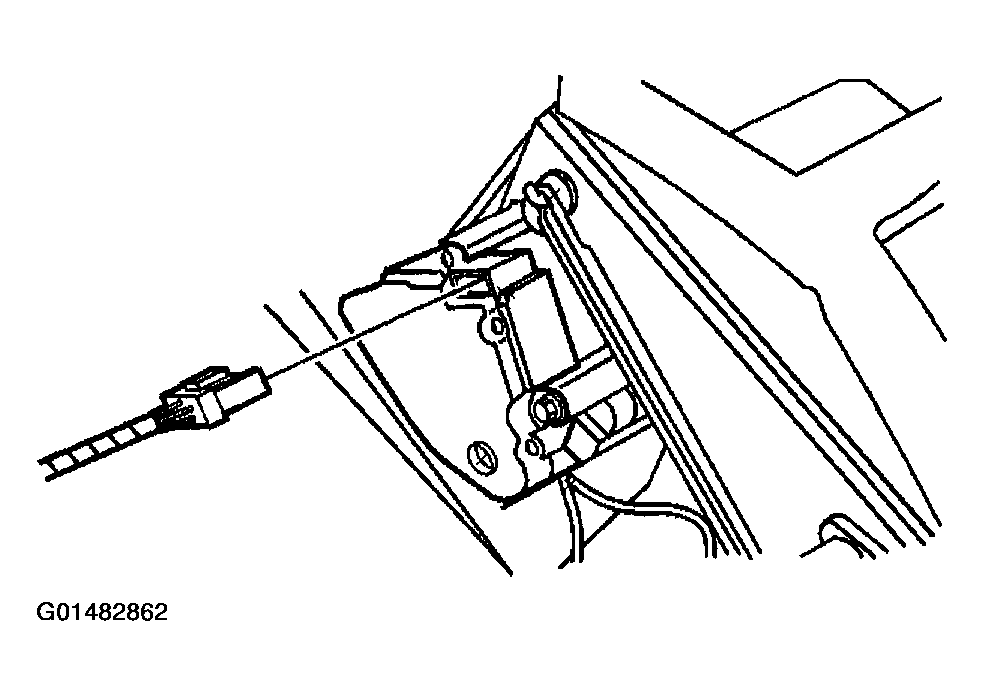

    Fig 1: Disconnecting Recirculation Actuator Electrical Connector
    G01482862Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining screws from the recirculation actuator.

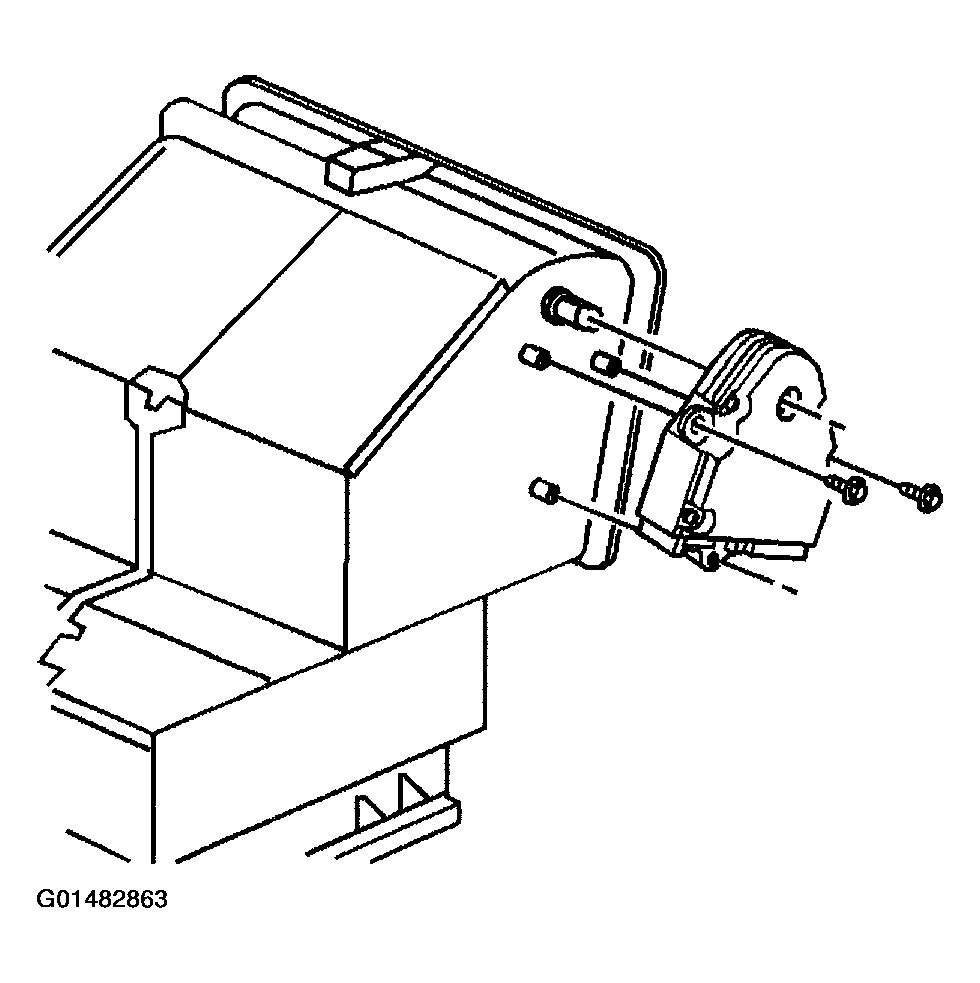

    Fig 2: Removing Recirculation Actuator
    G01482863Courtesy of GENERAL MOTORS CORP.
  4. Remove the recirculation actuator.
