Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

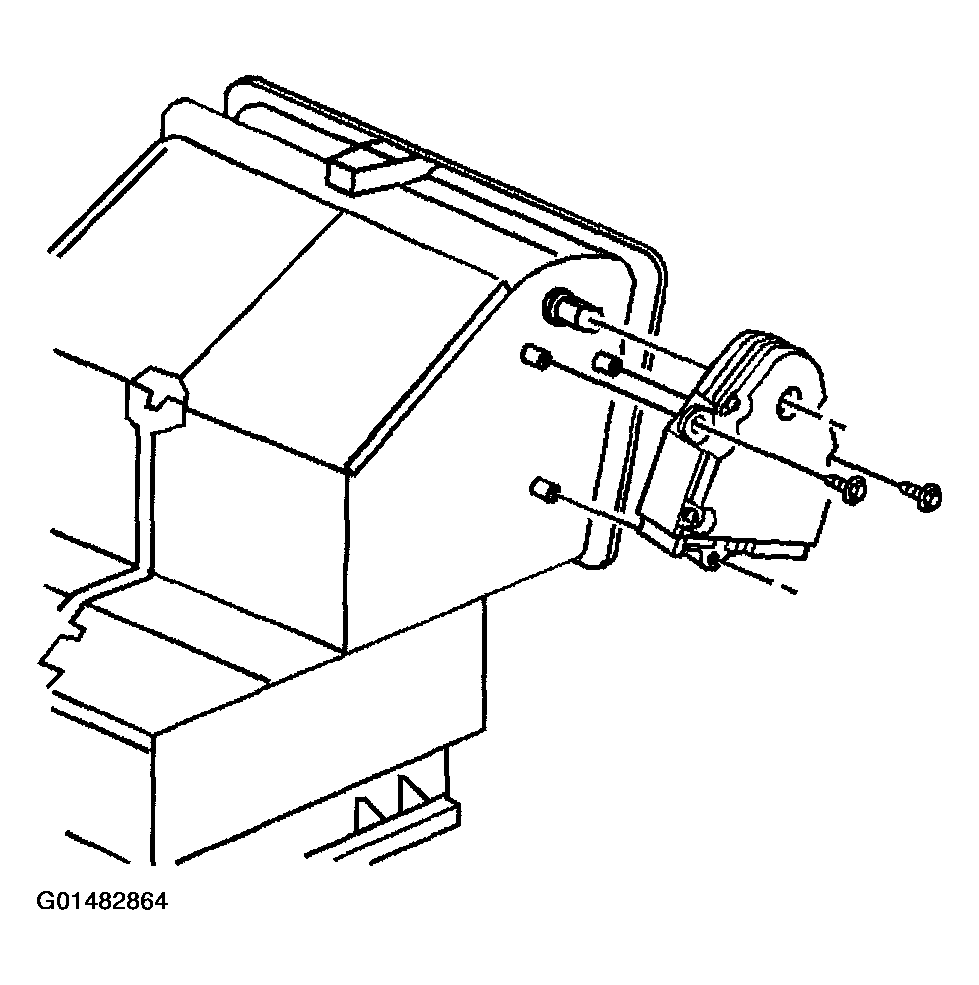

    Fig 1: Installing Recirculation Actuator
    G01482864Courtesy of GENERAL MOTORS CORP.
  2. Install the recirculation actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Connect the recirculation actuator electrical connector.
    Fig 2: Connecting Recirculation Actuator Electrical Connector
    G01482865Courtesy of GENERAL MOTORS CORP.
  4. Install the upper I/P trim pad. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
