Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster from the instrument panel. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Disconnect the mode actuator electrical connector.

    Important:  Count the number of threads showing from the tip of the mode actuator push rod to the end of the retainer clip.

  3. Open the mode actuator push rod retainer clip (1) with a small flat bladed screwdriver.
  4. Disconnect the mode actuator push rod (2) from the retainer clip (1).

    Important:  Disconnect the IP wiring harness clip from the IP support bracket to help access the mode actuator screws.

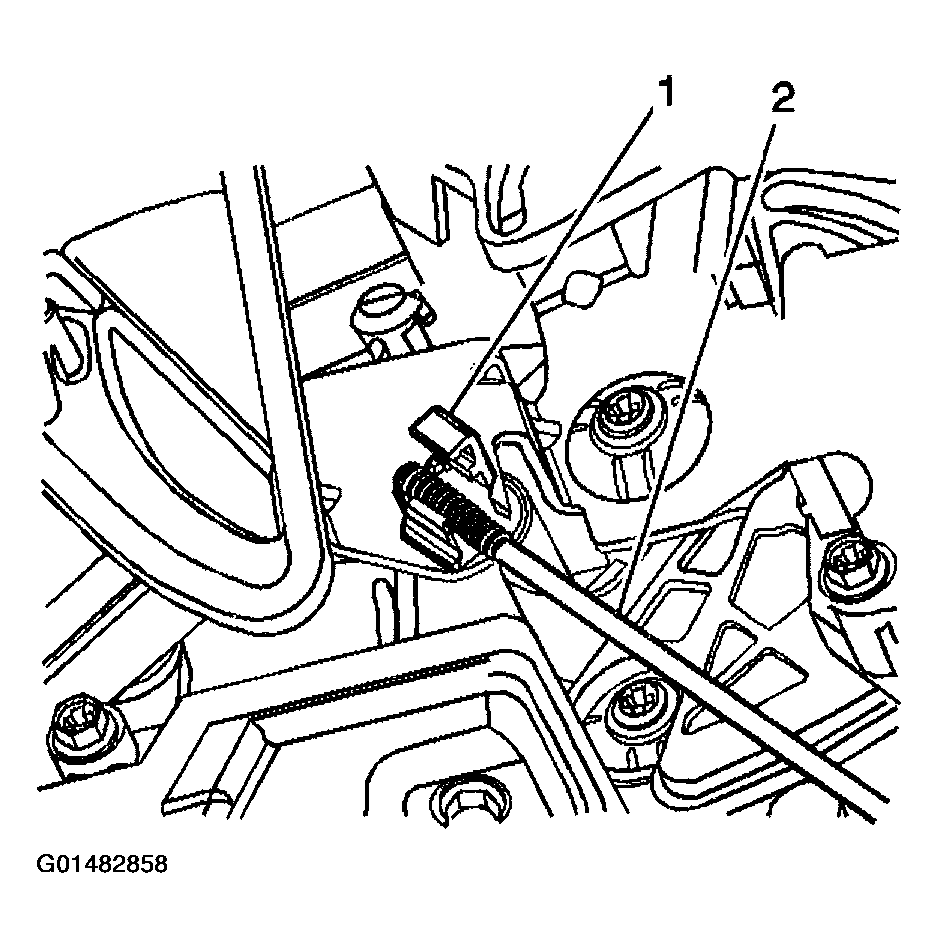

    Fig 1: Disconnecting Mode Actuator Push Rod From Retainer Clip
    G01482858Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the IP wiring harness clip from the IP support bracket.
  6. Remove the mode actuator mounting screws.
  7. Remove the mode door actuator.

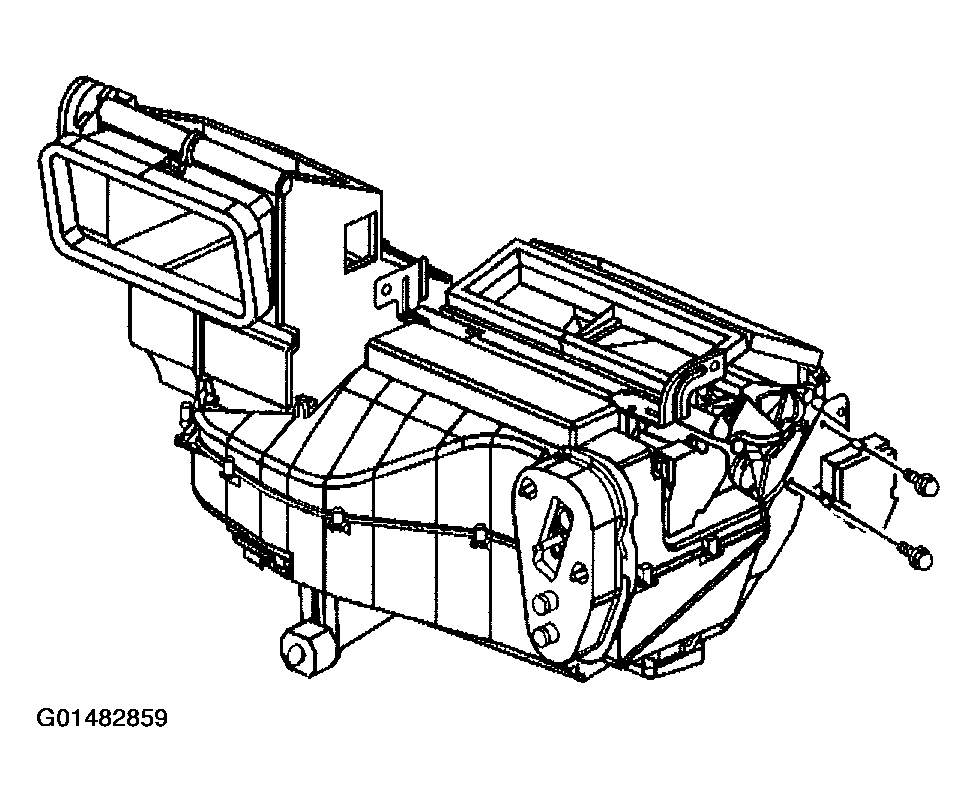

    Fig 2: Removing Mode Door Actuator
    G01482859Courtesy of GENERAL MOTORS CORP.
