Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the mode actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

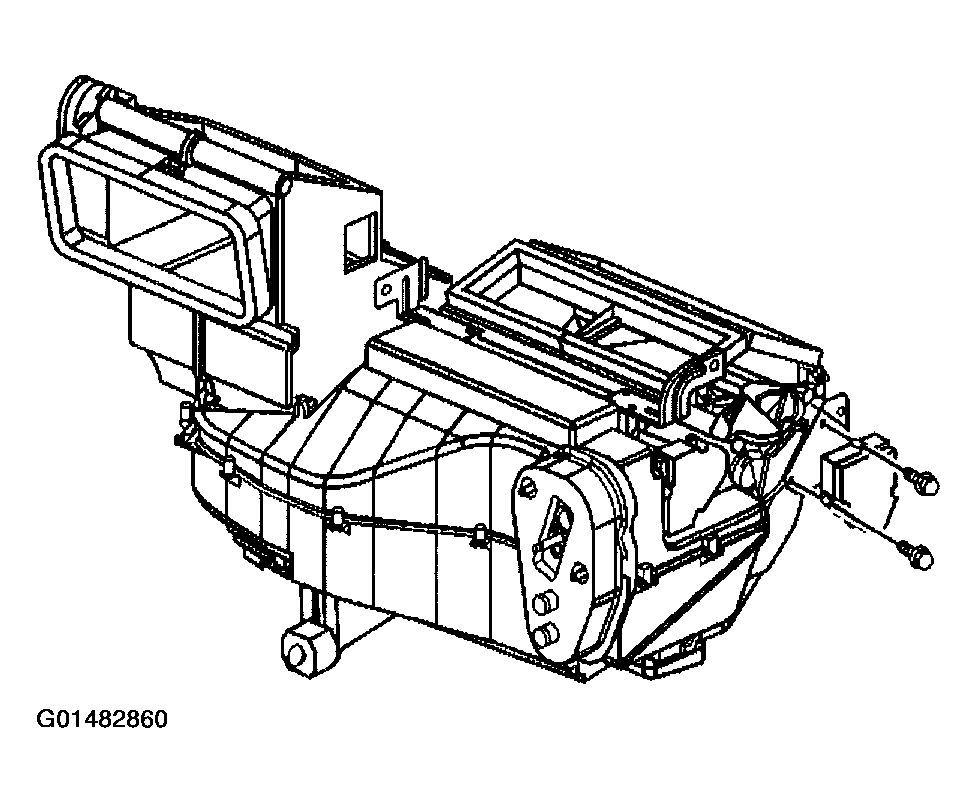

    Fig 1: Installing Mode Door Actuator
    G01482860Courtesy of GENERAL MOTORS CORP.
  3. Connect the IP wiring harness clip to the IP support bracket.

    Important:  Align the counted number of threads on the mode actuator push rod (2) with the tip of the retainer clip (1).

  4. Connect the mode actuator push rod (2) to the retainer clip (1).

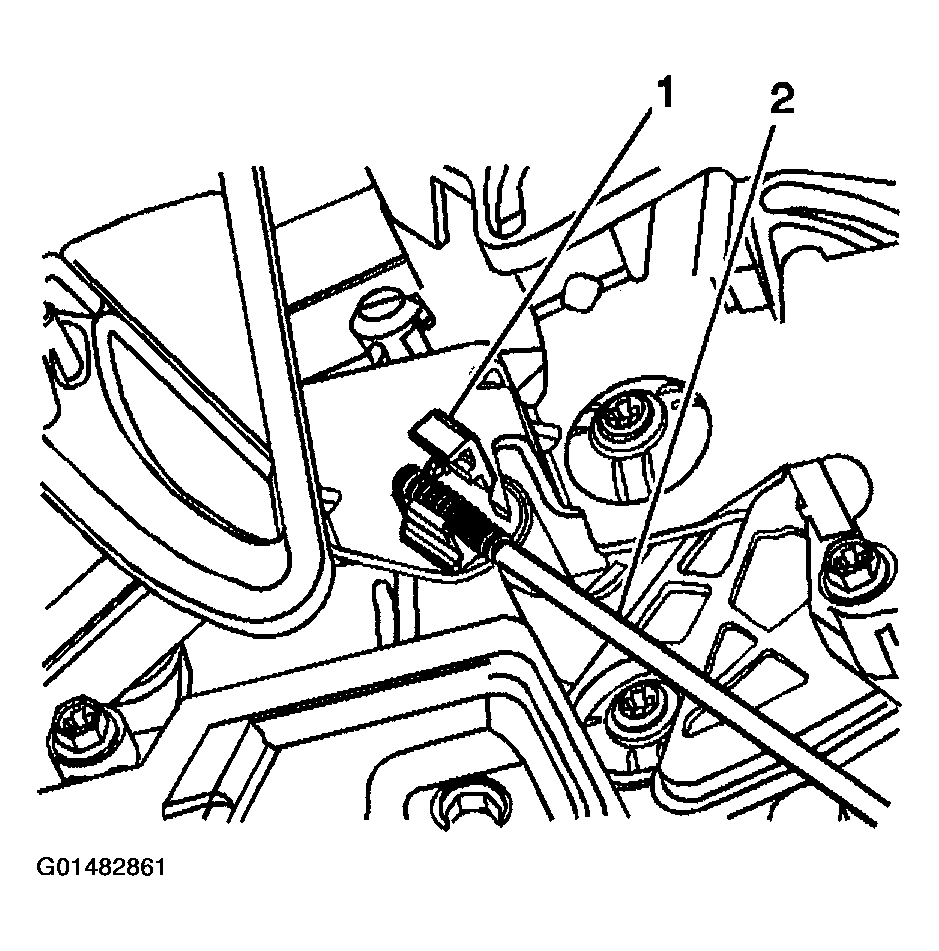

    Fig 2: Connecting Mode Actuator Push Rod To Retainer Clip
    G01482861Courtesy of GENERAL MOTORS CORP.
  5. Close the push rod retainer clip (1).
  6. Connect the mode actuator electrical connector.
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.
