Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
  2. Disconnect the auxiliary mode actuator electrical connector.
  3. Remove the auxiliary mode actuator retaining screws.

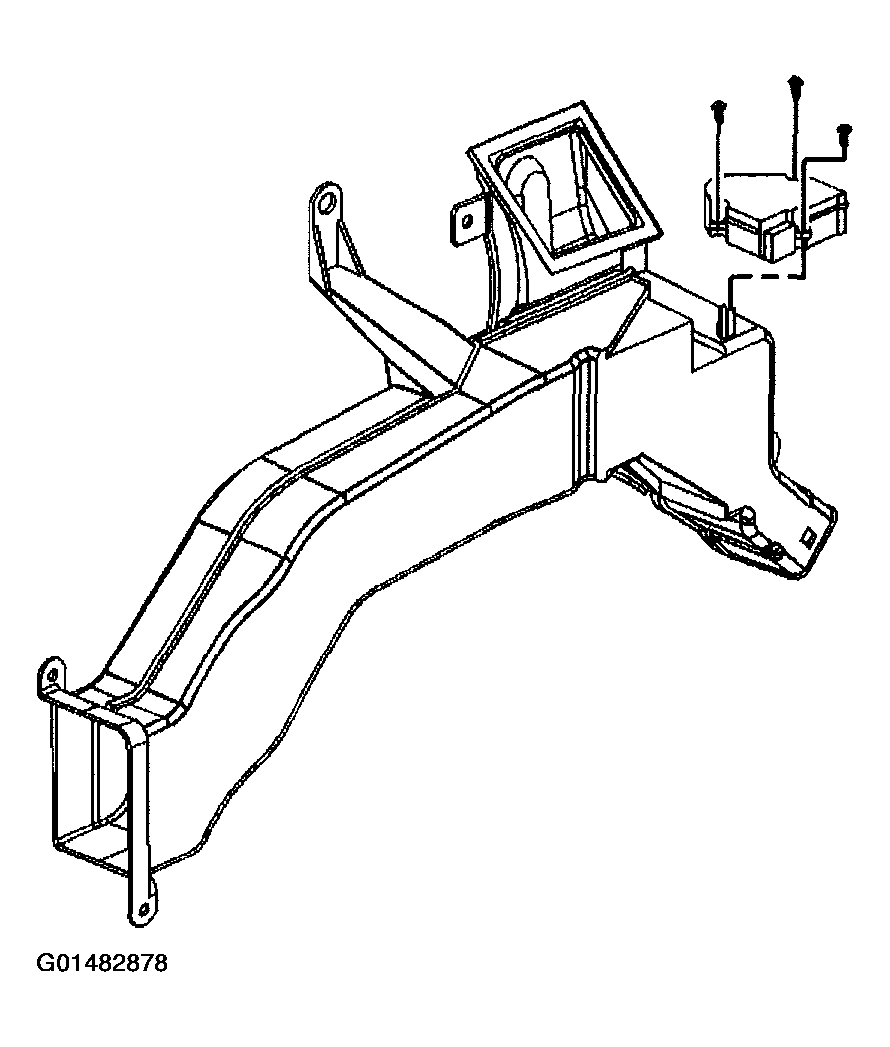

    Fig 1: Removing Auxiliary Mode Actuator
    G01482878Courtesy of GENERAL MOTORS CORP.
  4. Remove the auxiliary mode actuator from the air distribution duct.
