Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary mode actuator to the air distribution duct.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the auxiliary mode actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

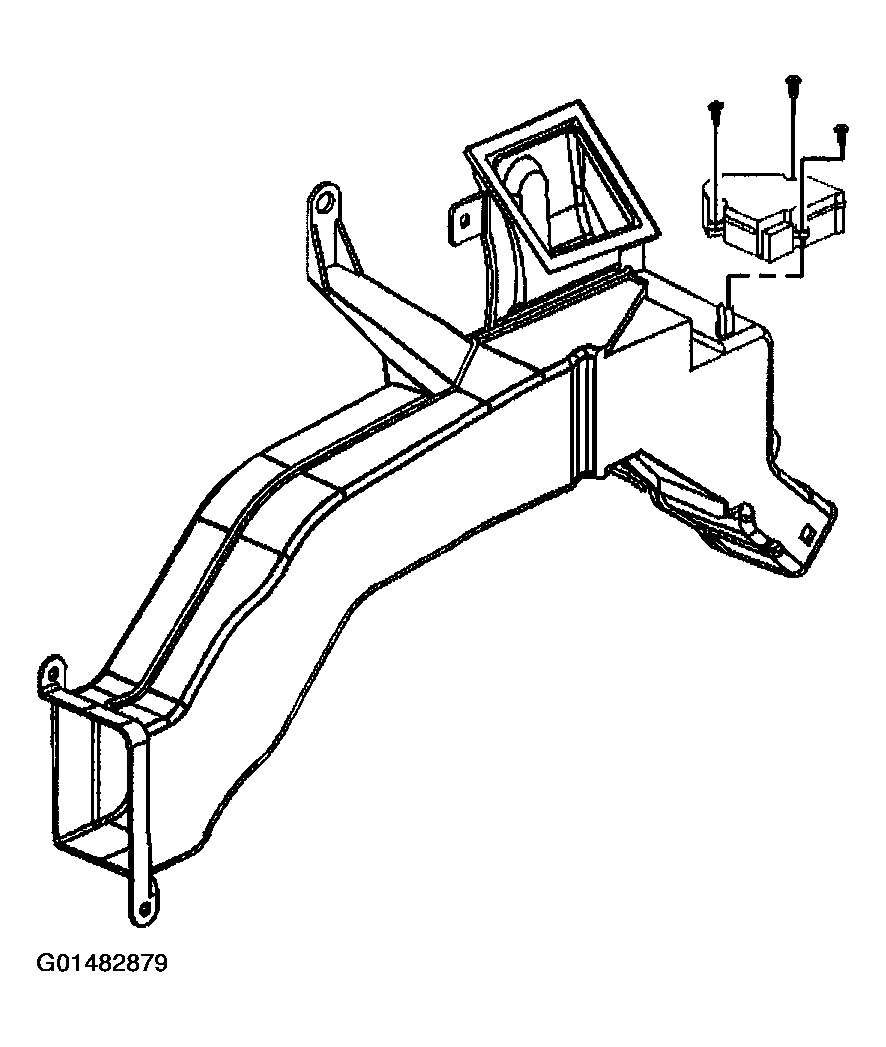

    Fig 1: Installing Auxiliary Mode Actuator
    G01482879Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary mode actuator electrical connector.
  4. Install the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
