Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P accessory trim plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  2. Remove the HVAC control module retaining screws.
  3. Pull the HVAC control module straight out from the instrument panel.
  4. Disconnect the HVAC control module electrical connectors.
  5. Remove the HVAC control module.

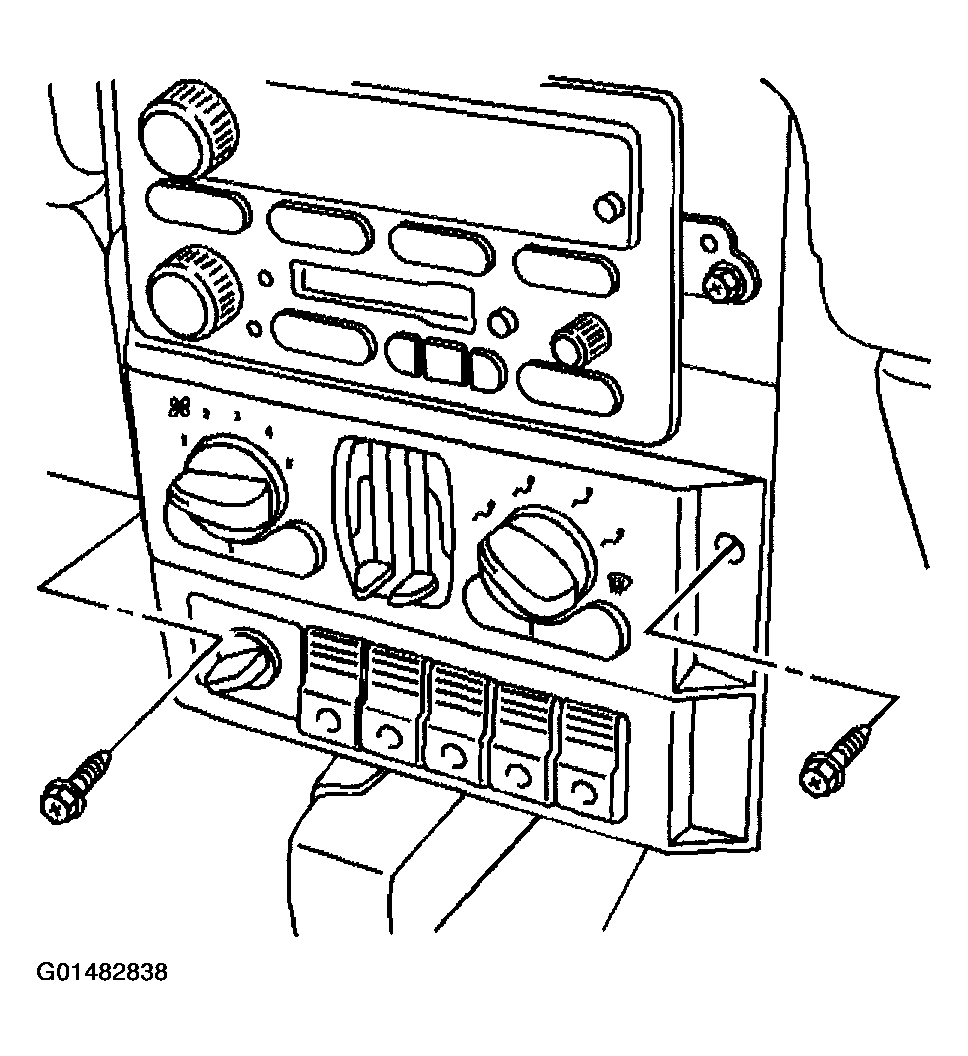

    Fig 1: Removing HVAC Control Module Retaining Screws
    G01482838Courtesy of GENERAL MOTORS CORP.
