Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
    Fig 1: Removing I/P Trim Plate
    G01482868Courtesy of GENERAL MOTORS CORP.
  2. Remove the auxiliary blower motor switch retaining screws.

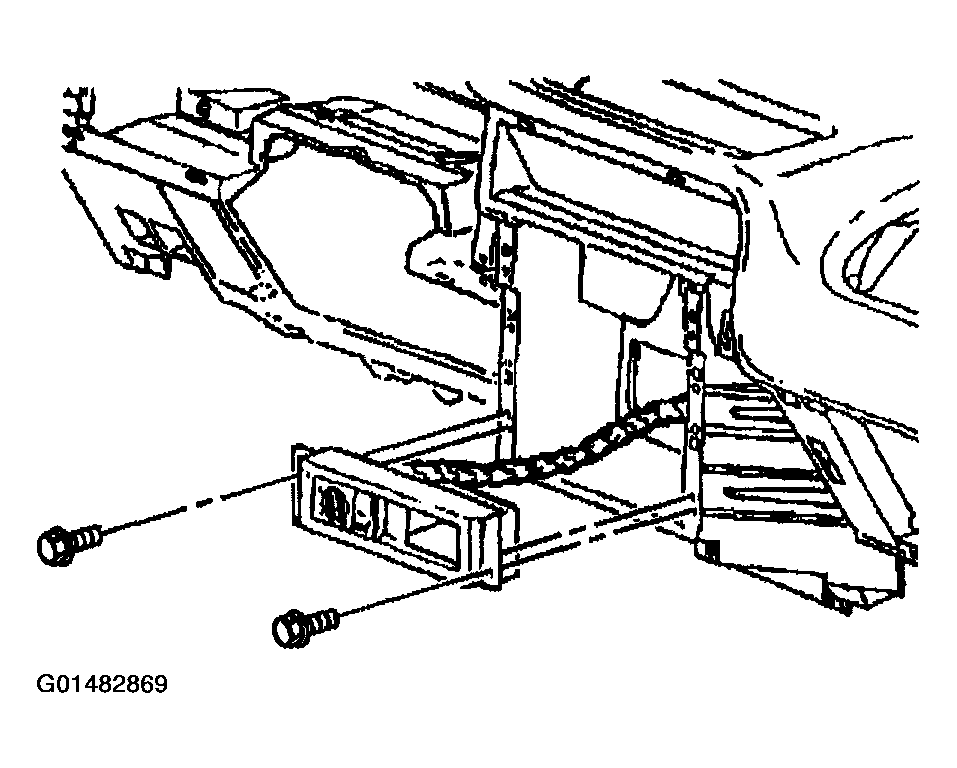

    Fig 2: Removing Auxiliary Blower Motor Switch
    G01482869Courtesy of GENERAL MOTORS CORP.
  3. Pull straight out from the I/P in order to remove the auxiliary blower motor switch.
  4. Disconnect the electrical connectors from the blower motor switch.

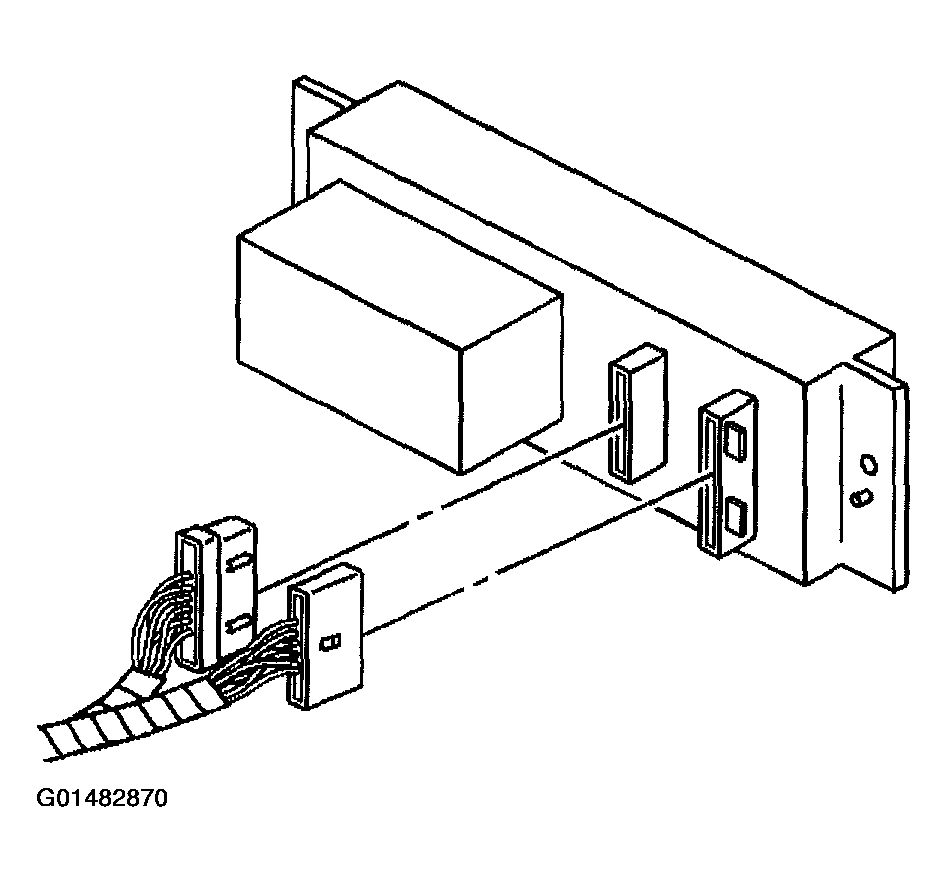

    Fig 3: Disconnecting Electrical Connectors From Blower Motor Switch
    G01482870Courtesy of GENERAL MOTORS CORP.
