Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors to the blower motor switch.

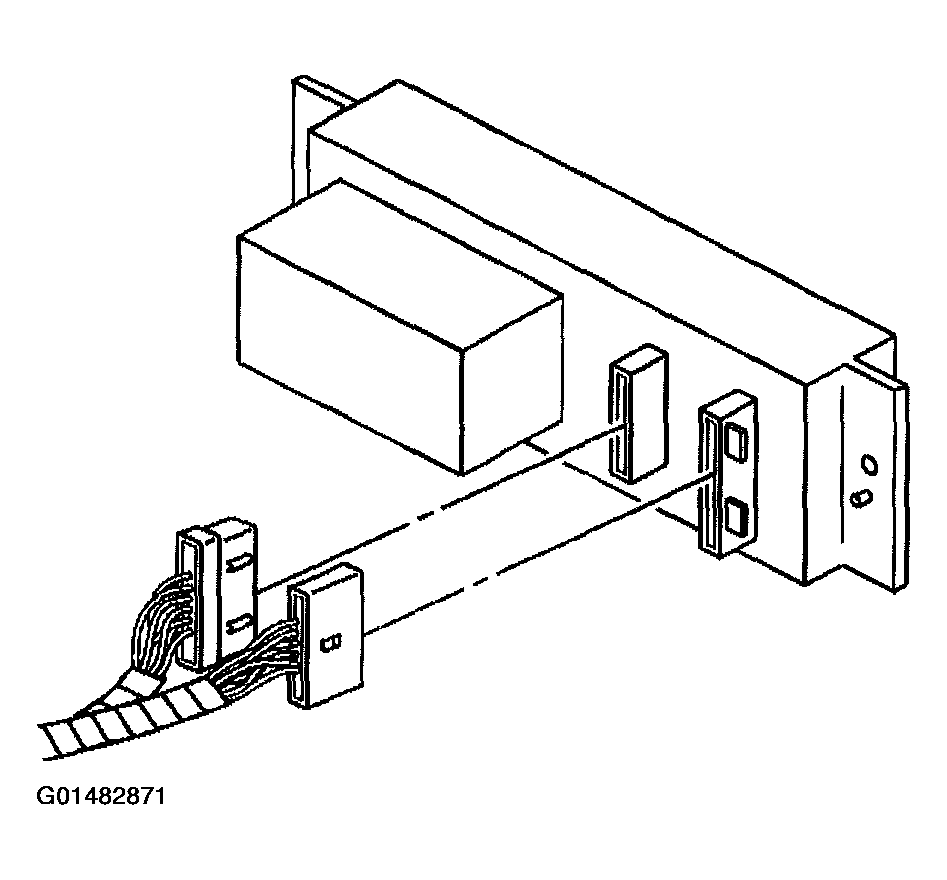

    Fig 1: Connecting Electrical Connectors To Blower Motor Switch
    G01482871Courtesy of GENERAL MOTORS CORP.
  2. Push in on the blower motor switch in order to install the blower motor switch.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

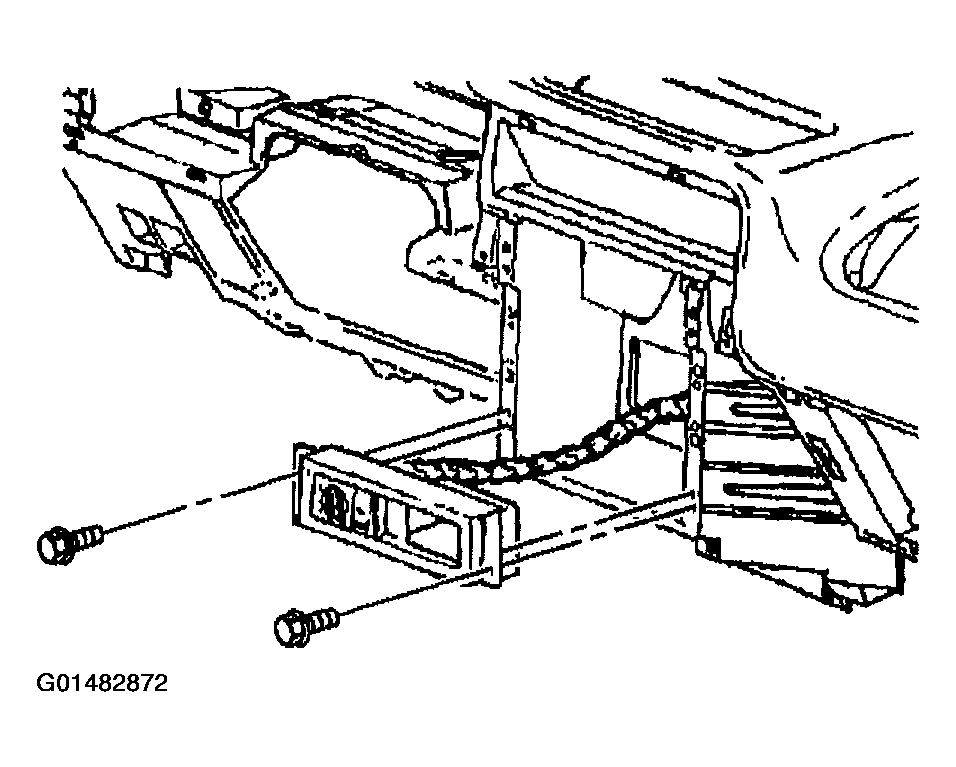

    Fig 2: Installing Blower Motor Switch
    G01482872Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary blower motor switch retaining screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

  4. Install the I/P trim plate. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
    Fig 3: Installing I/P Trim Plate
    G01482873Courtesy of GENERAL MOTORS CORP.
