Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
  2. Remove the air distribution duct to HVAC module assembly bolts.

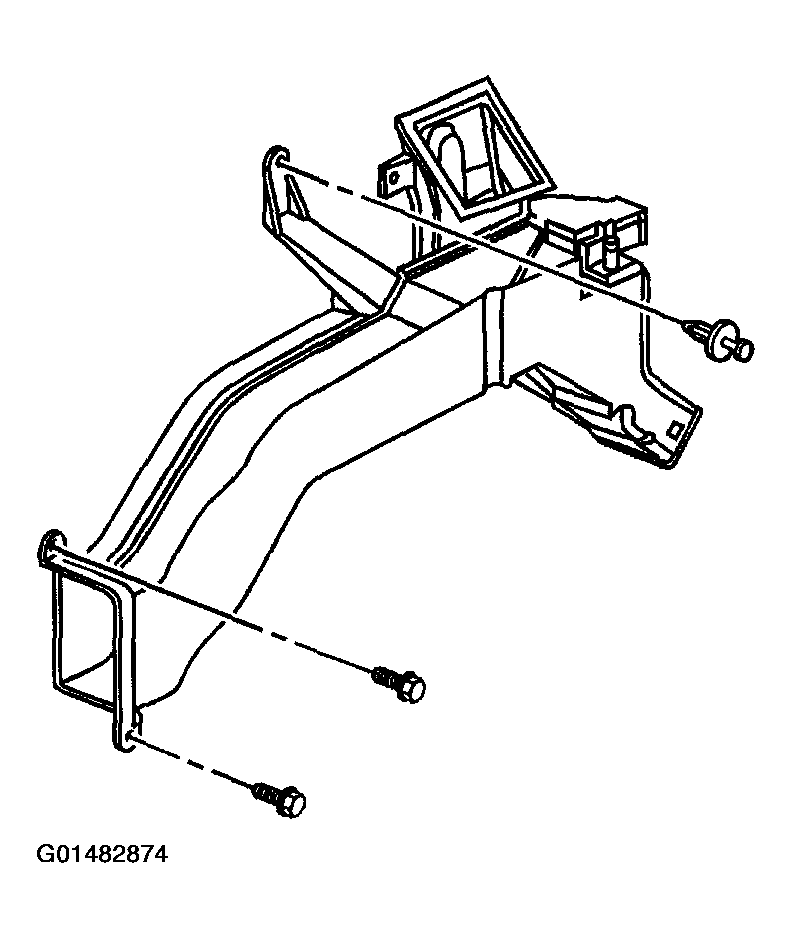

    Fig 1: Removing Air Distribution Duct To HVAC Module Assembly Bolts
    G01482874Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the air distribution duct and re-position for access to the blower motor relay.
  4. Remove the blower motor relay from the mounting bracket.

    Slide the relay up to disconnect from the relay bracket.

  5. Disconnect blower motor relay electrical connector.
  6. Remove the blower motor relay.
