Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

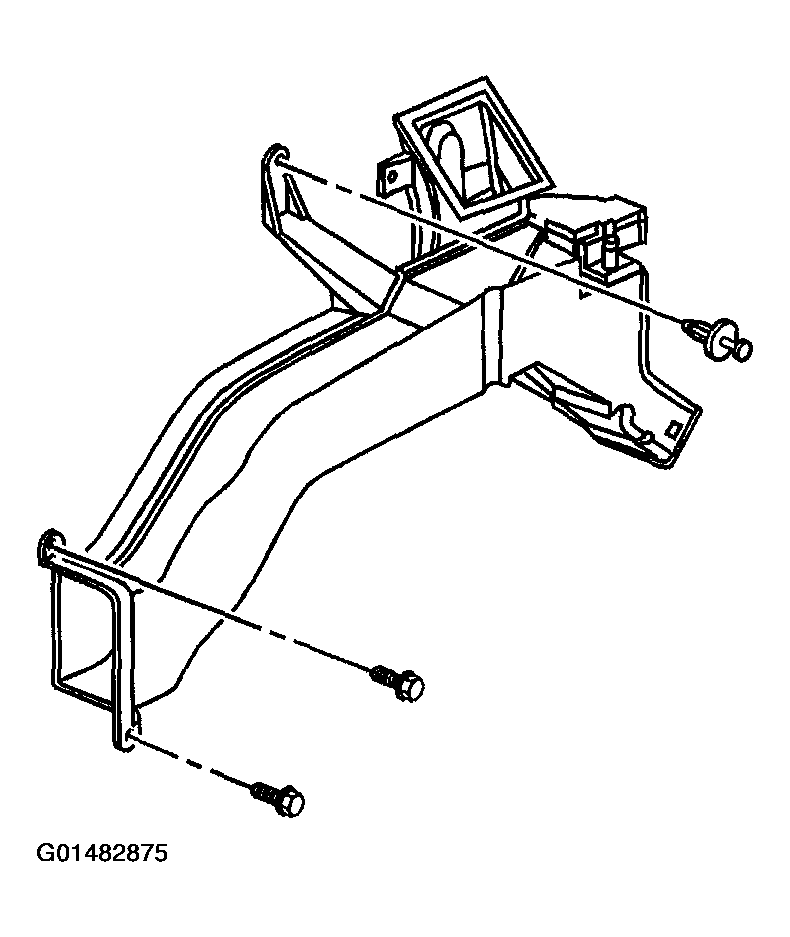

Fig 1: Installing Air Distribution Duct To HVAC Module Assembly Bolts
G01482875Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor relay.
  2. Connect the blower motor relay electrical connector.
  3. Install the blower motor relay to the mounting bracket.
  4. Connect the air distribution duct to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the air distribution duct to HVAC module assembly bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  6. Install the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
