Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air temperature actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

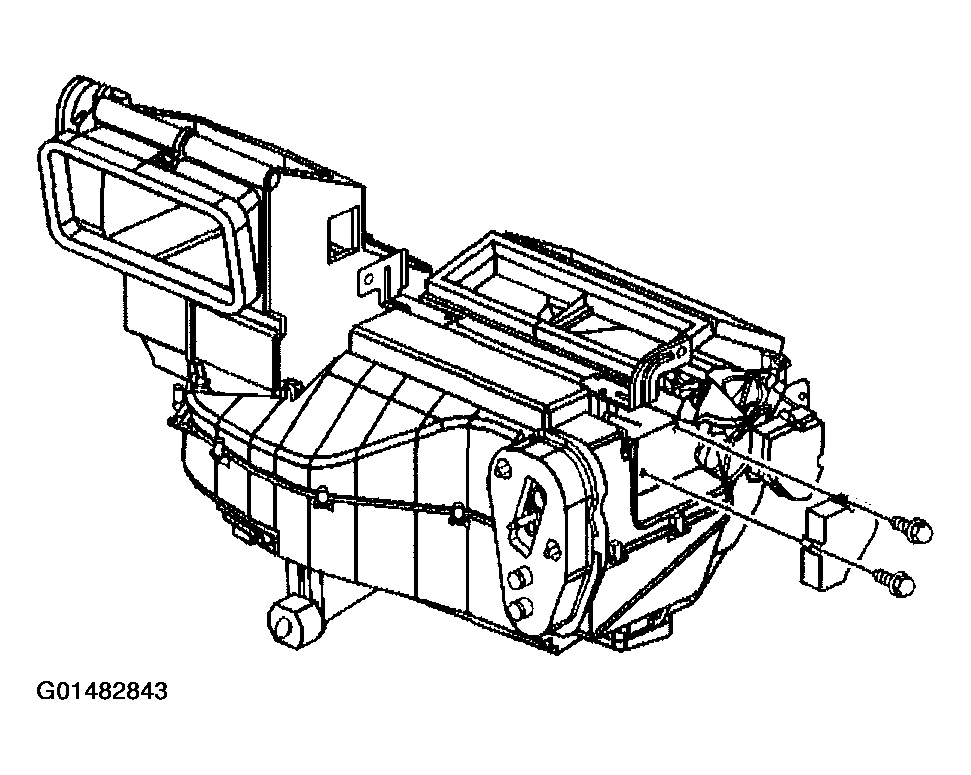

    Fig 1: Installing Air Temperature Actuator Mounting Screws
    G01482843Courtesy of GENERAL MOTORS CORP.
  3. Connect the air temperature actuator electrical connector.

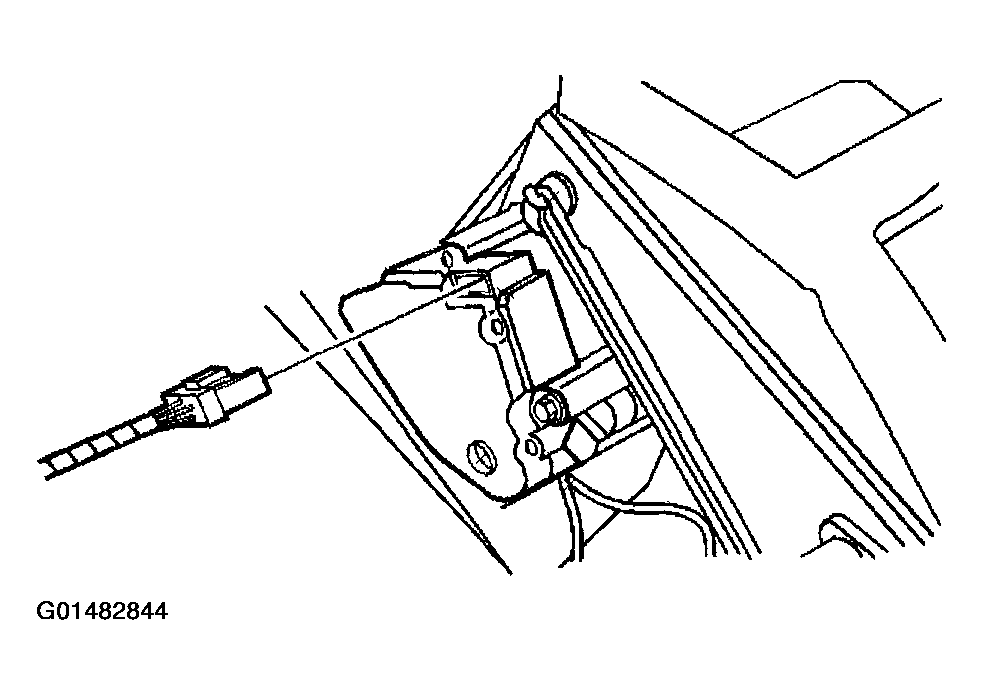

    Fig 2: Connecting Air Temperature Actuator Electrical Connector
    G01482844Courtesy of GENERAL MOTORS CORP.

    Important:  Align the pin on the air temperature actuator with the slot in the temperature door lever.

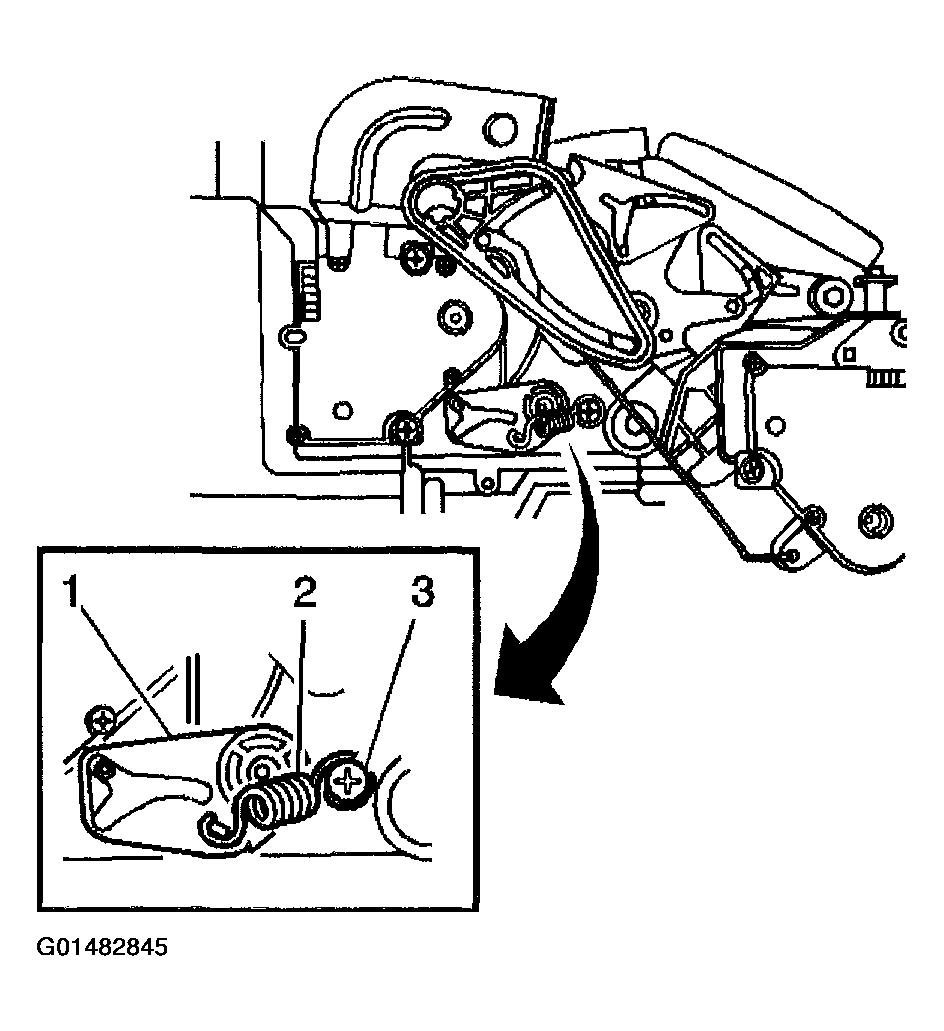

    Fig 3: Installing Temperature Door Lever, Lever Spring And Lever Bolt
    G01482845Courtesy of GENERAL MOTORS CORP.
  4. Install the temperature door lever (1) to the temperature door.
  5. Connect the temperature door lever spring (2) to the temperature door lever (1) and HVAC module case.
  6. Install the temperature door lever bolt (3) to the HVAC module case.

    Tighten

    Tighten the bolt to 0.9 N.m (8 lb in).

  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.
