Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel compartment. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  2. Disconnect and remove the right hand temperature door lever spring (2).
  3. Disconnect and remove the right hand temperature lever (1) from the right hand temperature door.

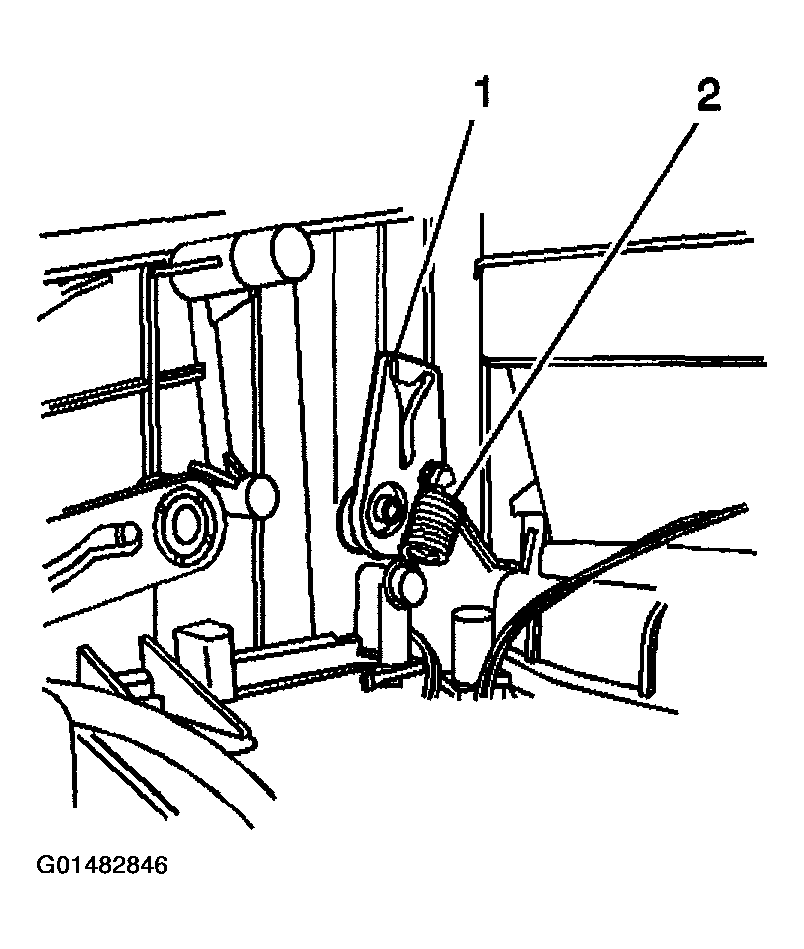

    Fig 1: Removing Right Hand Temperature Door Lever Spring And Temperature Lever
    G01482846Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the right hand temperature actuator electrical connector.
    Fig 2: Disconnecting Right Hand Temperature Actuator Electrical Connector
    G01482847Courtesy of GENERAL MOTORS CORP.
  5. Remove the right hand temperature actuator mounting screws.
  6. Remove the right hand temperature actuator.

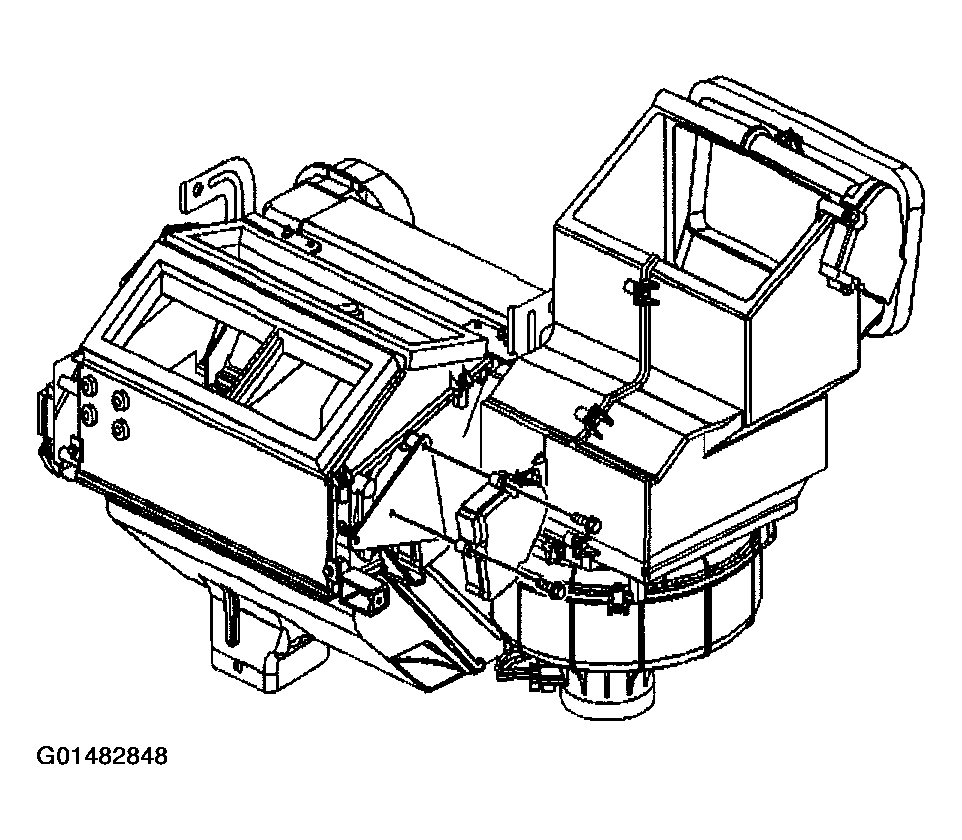

    Fig 3: Removing Right Hand Temperature Actuator
    G01482848Courtesy of GENERAL MOTORS CORP.
