Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right hand temperature actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the right hand temperature actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

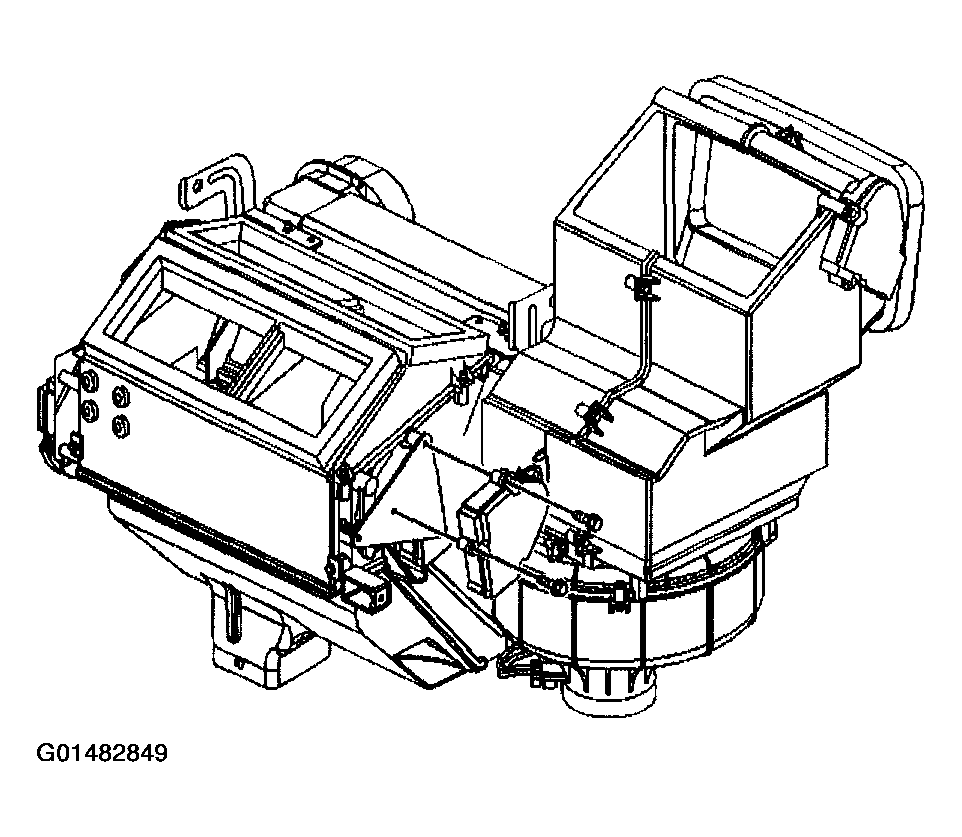

    Fig 1: Installing Right Hand Temperature Actuator
    G01482849Courtesy of GENERAL MOTORS CORP.
  3. Connect the right hand temperature actuator electrical connector.

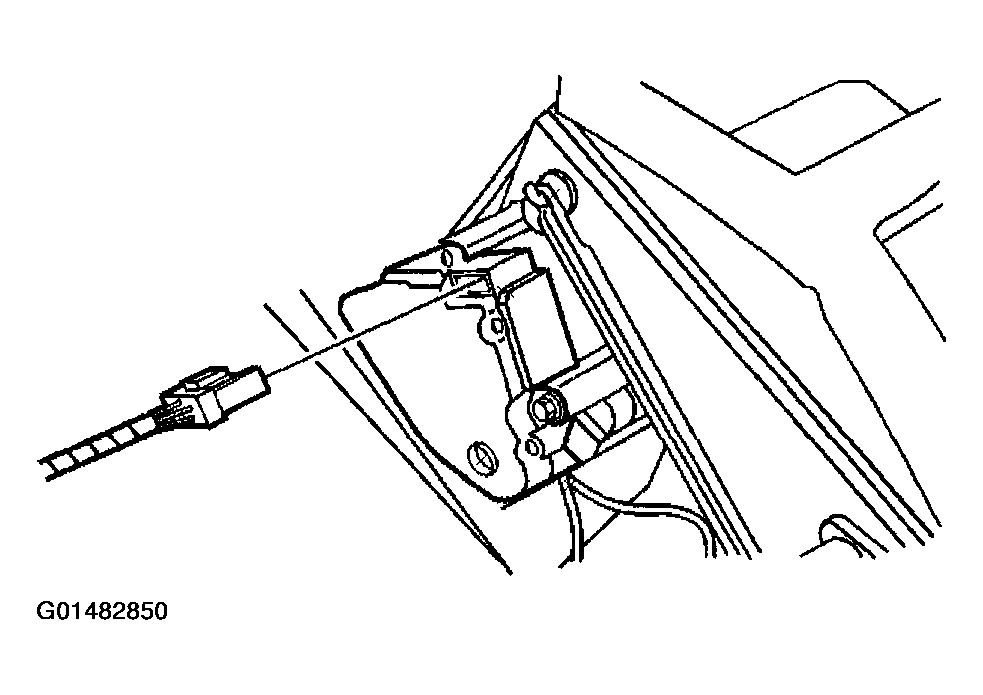

    Fig 2: Connecting Right Hand Temperature Actuator Electrical Connector
    G01482850Courtesy of GENERAL MOTORS CORP.

    Important:  Align the pin on the right hand air temperature actuator with the slot in the right hand temperature door lever.

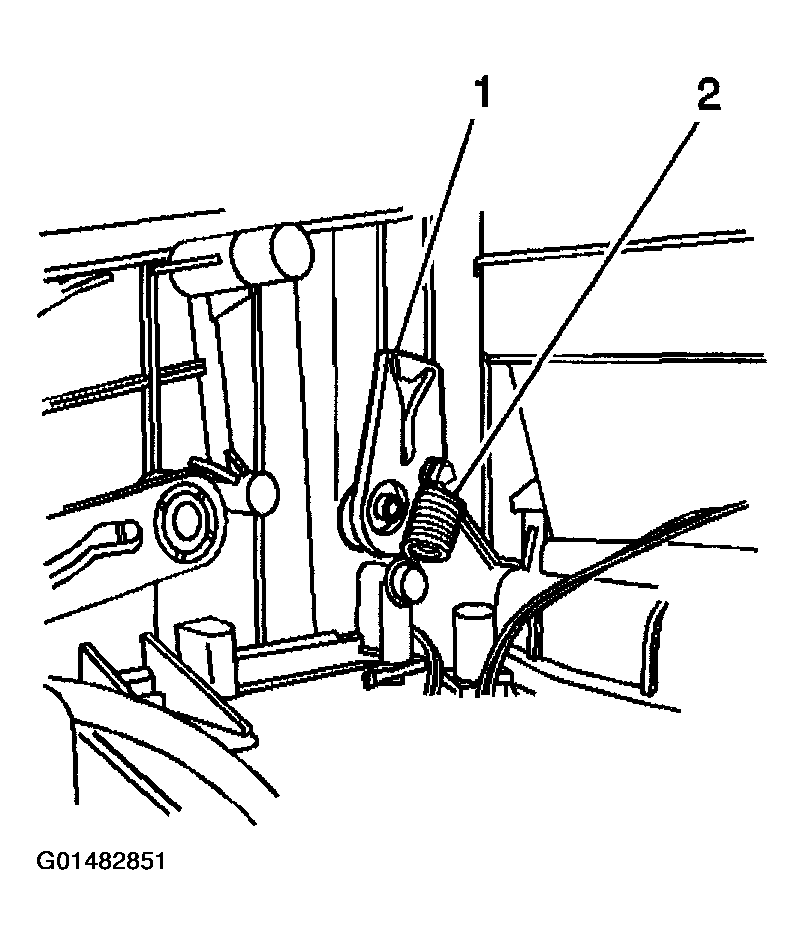

    Fig 3: Installing Right Hand Temperature Door Lever Spring And Temperature Lever
    G01482851Courtesy of GENERAL MOTORS CORP.
  4. Install the right hand temperature lever (1) to the right hand temperature door.
  5. Connect the right hand temperature door lever spring (2) to the right hand temperature door lever (1) and HVAC module case.
  6. Install the instrument panel compartment. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
