Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT  in Instrument Panel, Gages and Console.

    Important:  The HVAC controls must be set to the vent mode to position the defroster door lever for access to the air temperature actuator.

  2. Set the HVAC controls to the vent mode to position the defroster door lever.
  3. Remove the left hand temperature door lever bolt (3) from the HVAC module.
  4. Disconnect and remove the left hand temperature door lever spring (2).
  5. Disconnect and remove the left hand temperature door lever (1) from the left hand temperature door.

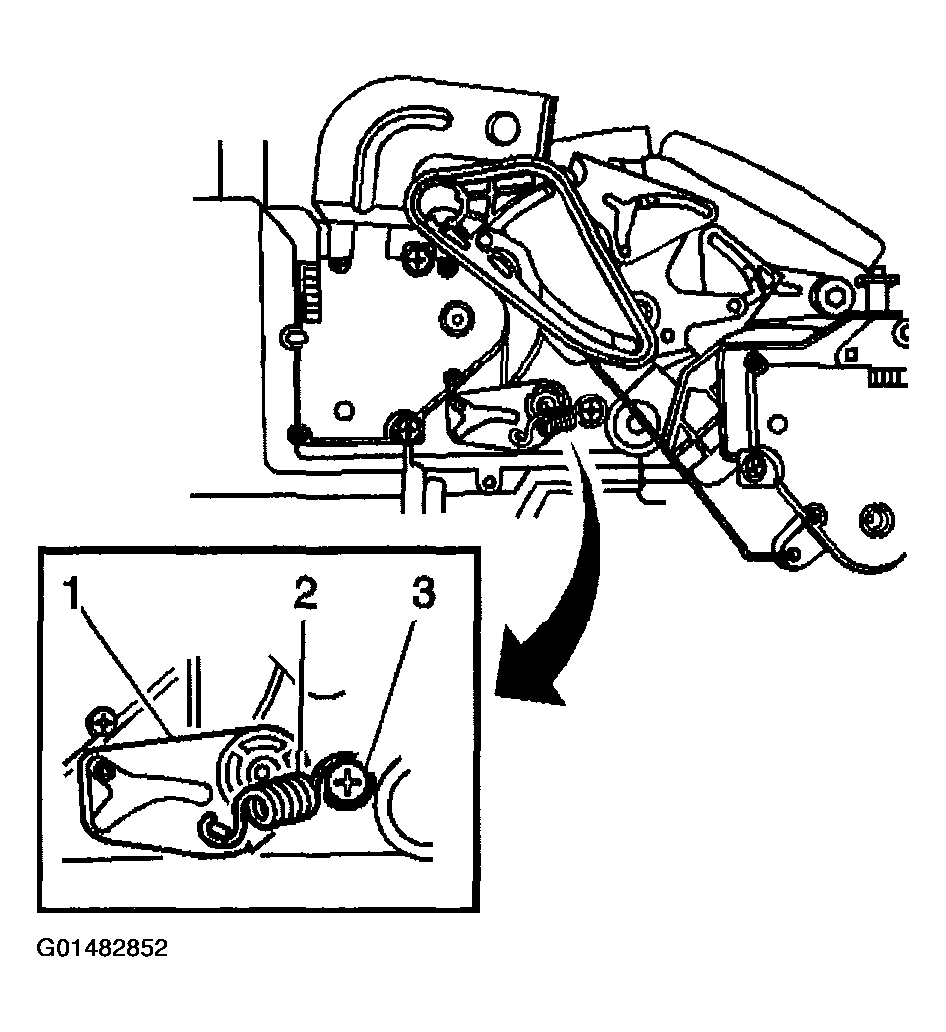

    Fig 1: Removing Left Hand Temperature Door Lever Spring And Temperature Lever
    G01482852Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the left hand air temperature actuator electrical connector.
    Fig 2: Disconnecting Left Hand Air Temperature Actuator Electrical Connector
    G01482853Courtesy of GENERAL MOTORS CORP.
  7. Remove the left hand air temperature actuator mounting screws.

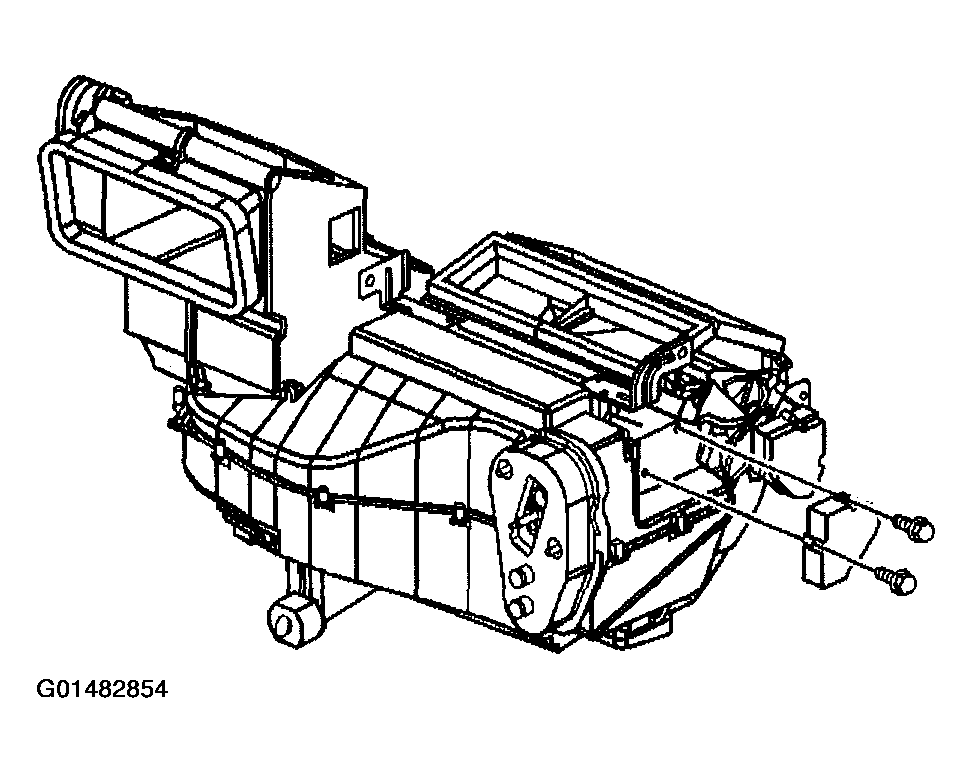

    Fig 3: Removing Left Hand Air Temperature Actuator Mounting
    G01482854Courtesy of GENERAL MOTORS CORP.
  8. Remove the left hand air temperature actuator.
