Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the left hand air temperature actuator.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the left hand air temperature actuator mounting screws.
Tighten

Tighten the screws to 1.6 N.m (14 lb in).

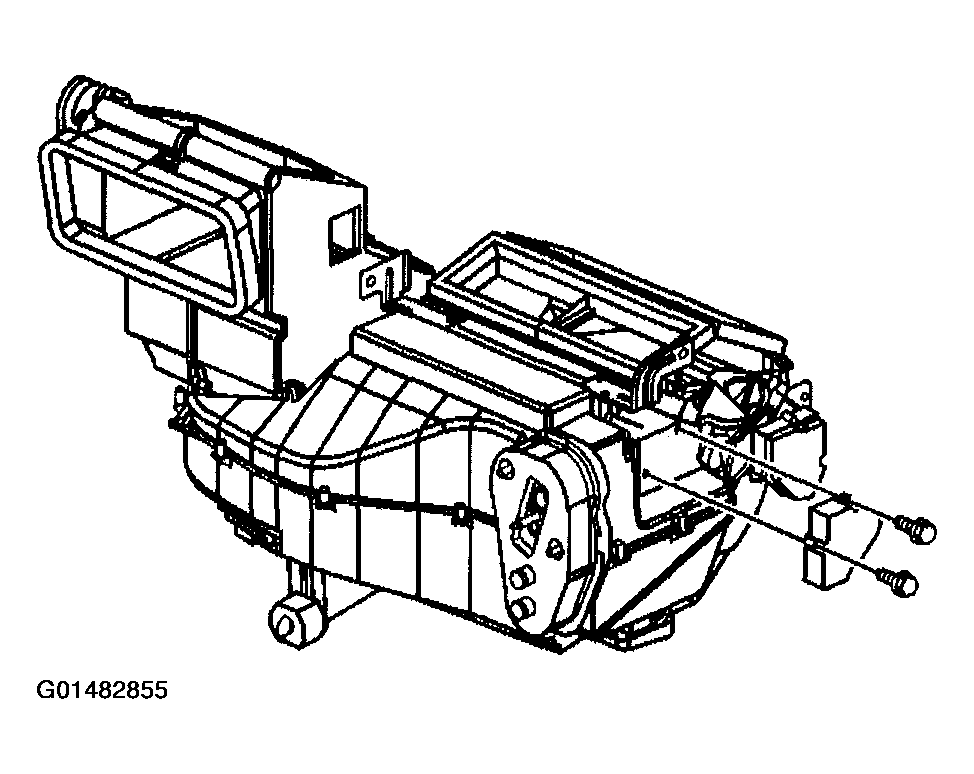

Fig 1: Install the left hand air temperature actuator
Courtesy of GENERAL MOTORS CORP.
Connect the left hand air temperature actuator electrical connector.

Fig 2: Connecting Left Hand Air Temperature Actuator Electrical Connector
Courtesy of GENERAL MOTORS CORP.

Important: Align the pin on the left hand air temperature actuator with the slot in the left hand temperature door lever.

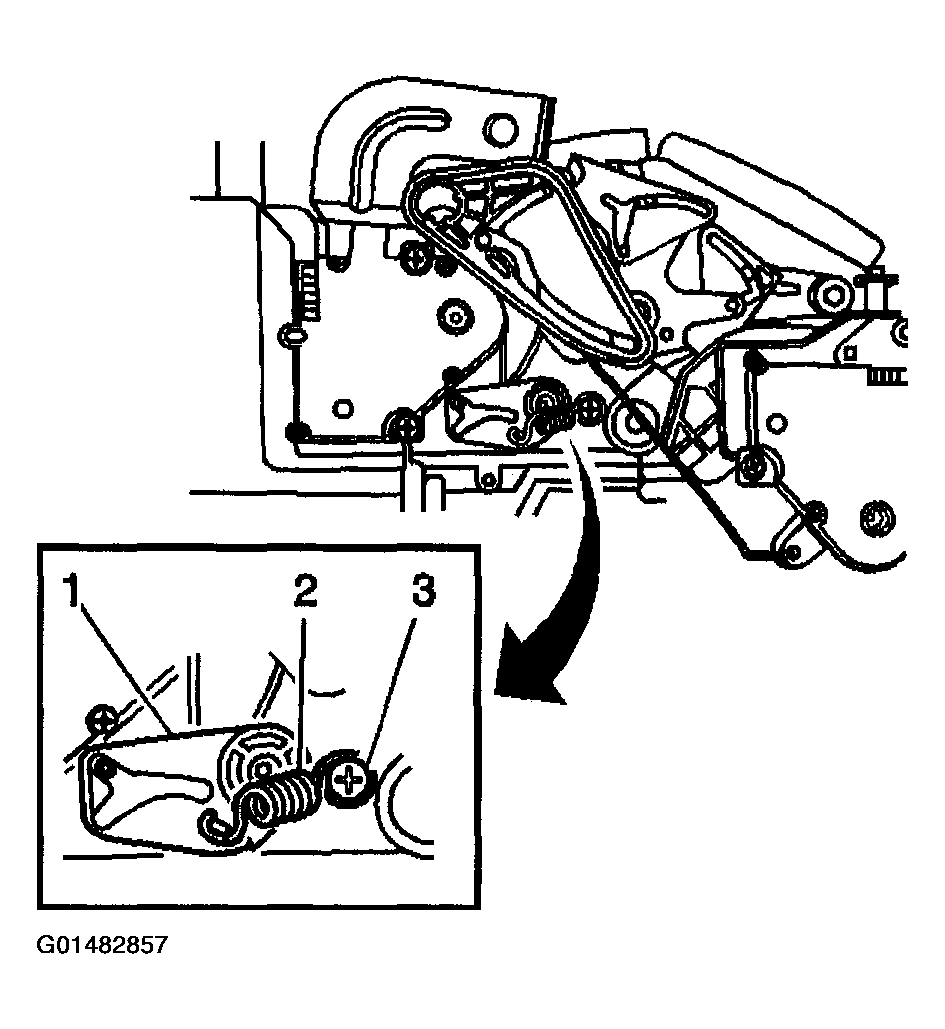

Fig 3: Installing Left Hand Temperature Door Lever Spring And Temperature Lever
Courtesy of GENERAL MOTORS CORP.
Install the left hand temperature door lever (1) to the left hand temperature door.
Connect the left hand temperature door lever spring (2) to the left hand temperature door lever (1) and HVAC module case.
Install the left hand temperature door lever bolt (3) to the HVAC module case.
Tighten

Tighten the bolt to 0.9 N.m (8 lb in).
Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages and Console.
