Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
  2. Disconnect auxiliary air temperature actuator electrical connector.
  3. Remove the auxiliary air temperature actuator retaining screws.
  4. Remove the auxiliary air temperature actuator from the HVAC module assembly.

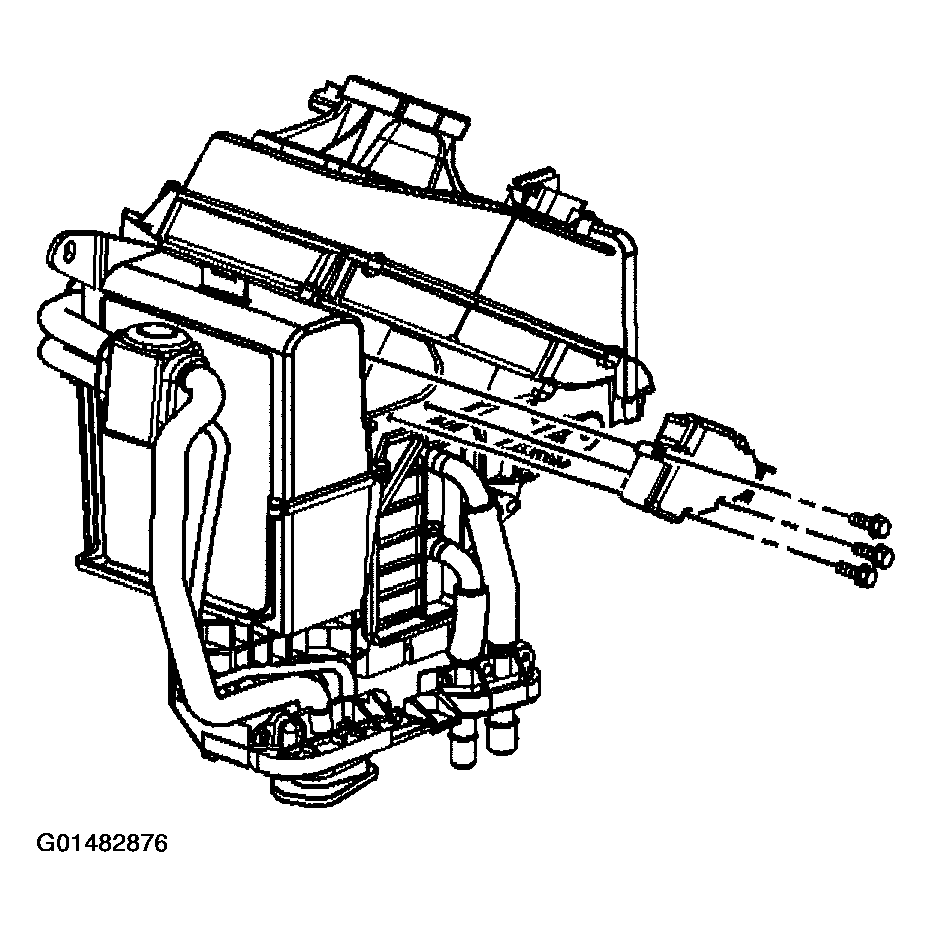

    Fig 1: Removing Auxiliary Air Temperature Actuator
    G01482876Courtesy of GENERAL MOTORS CORP.
