Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary air temperature actuator to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the auxiliary air temperature actuator retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

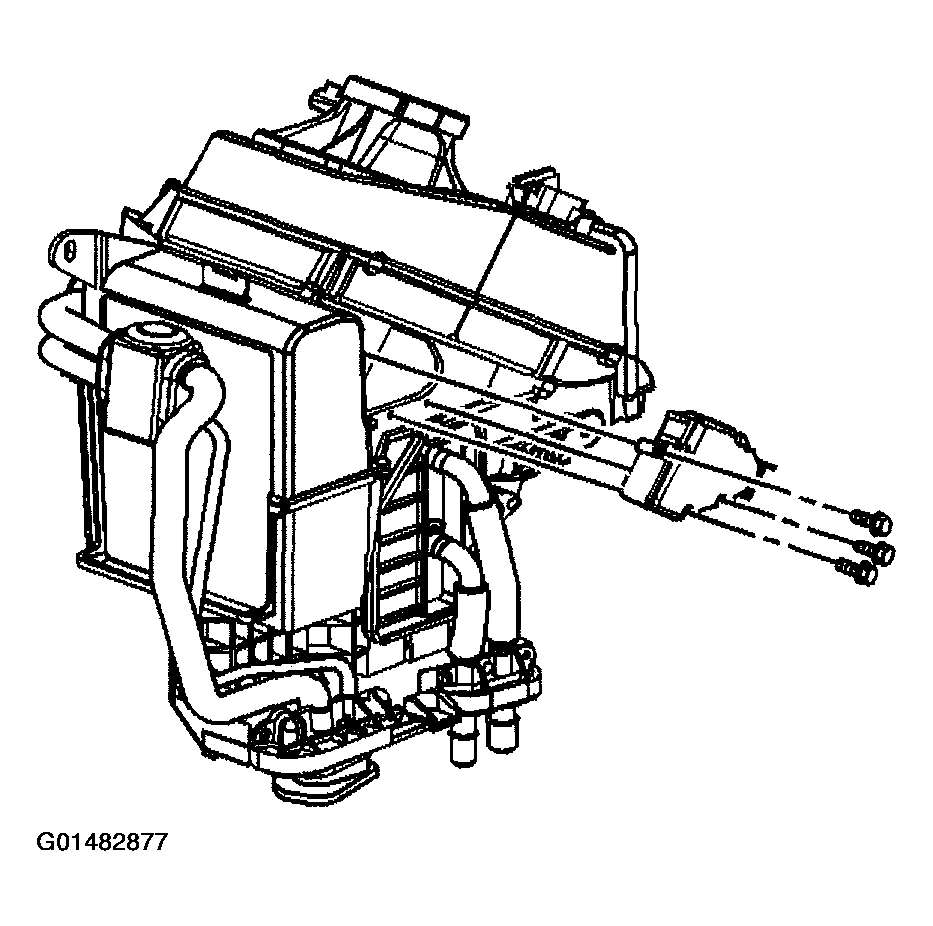

    Fig 1: Installing Auxiliary Air Temperature Actuator
    G01482877Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary air temperature actuator electrical connector.
  4. Install the left lower quarter trim panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Interior Trim.
