Test Description
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

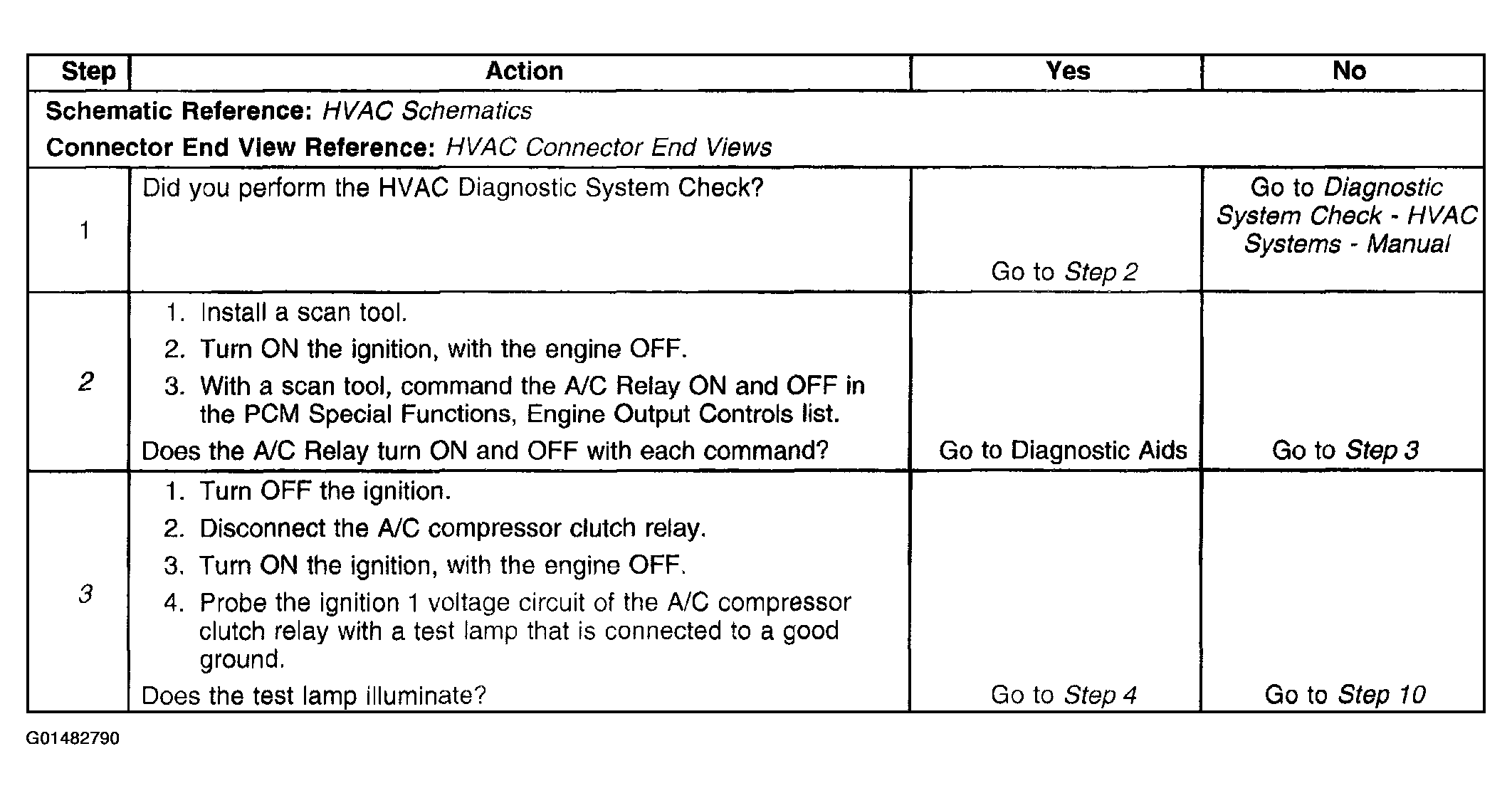

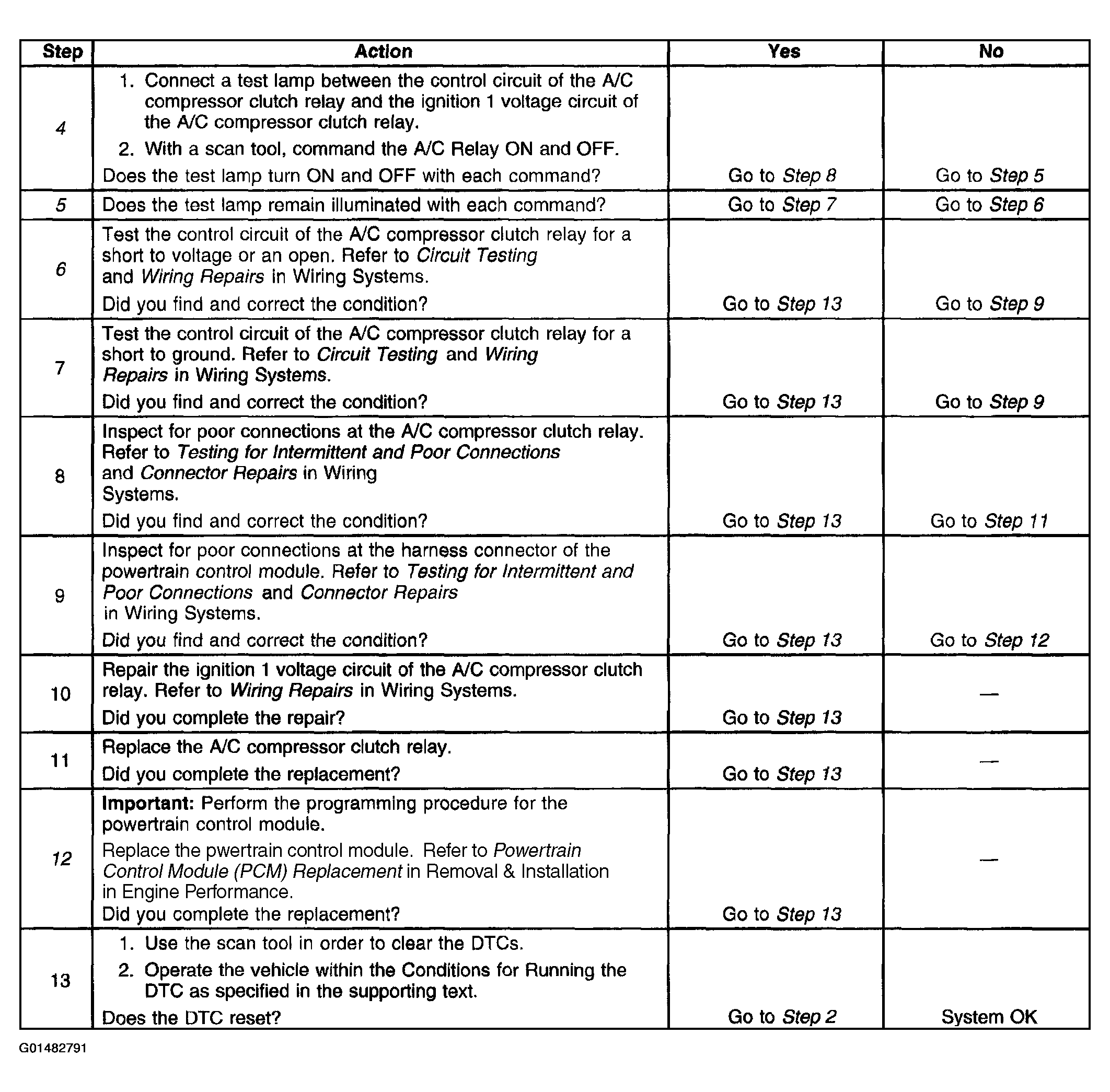

The numbers below refer to the step numbers on the diagnostic table.
2. Listen for an audible click when the A/C compressor clutch relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests for voltage at the coil side of the A/C compressor clutch relay. The 10-Amp fuse supplies ignition 1 voltage to the coil side of the A/C compressor clutch relay.
4. Verifies that the powertrain control module is providing ground to the A/C compressor clutch relay.
5. Tests if ground is constantly being applied to the A/C compressor clutch relay.
6. Tests for a short to voltage or an open.
12. Perform the programming procedure for the powertrain control module.
