Blower Motor Malfunction - Auxiliary (C69 with U32)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

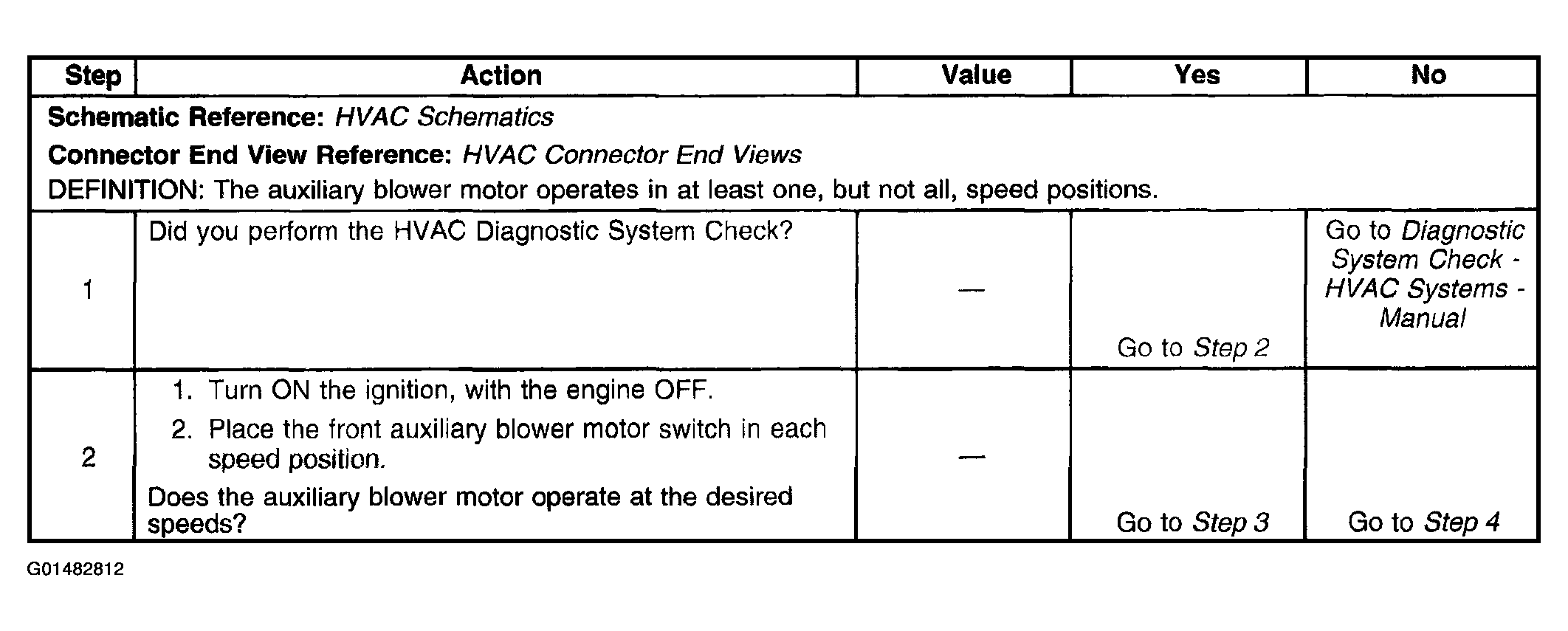

Fig 1: Diagnostic System Check - Blower Motor Malfunction - Auxiliary - C69 With U32 (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

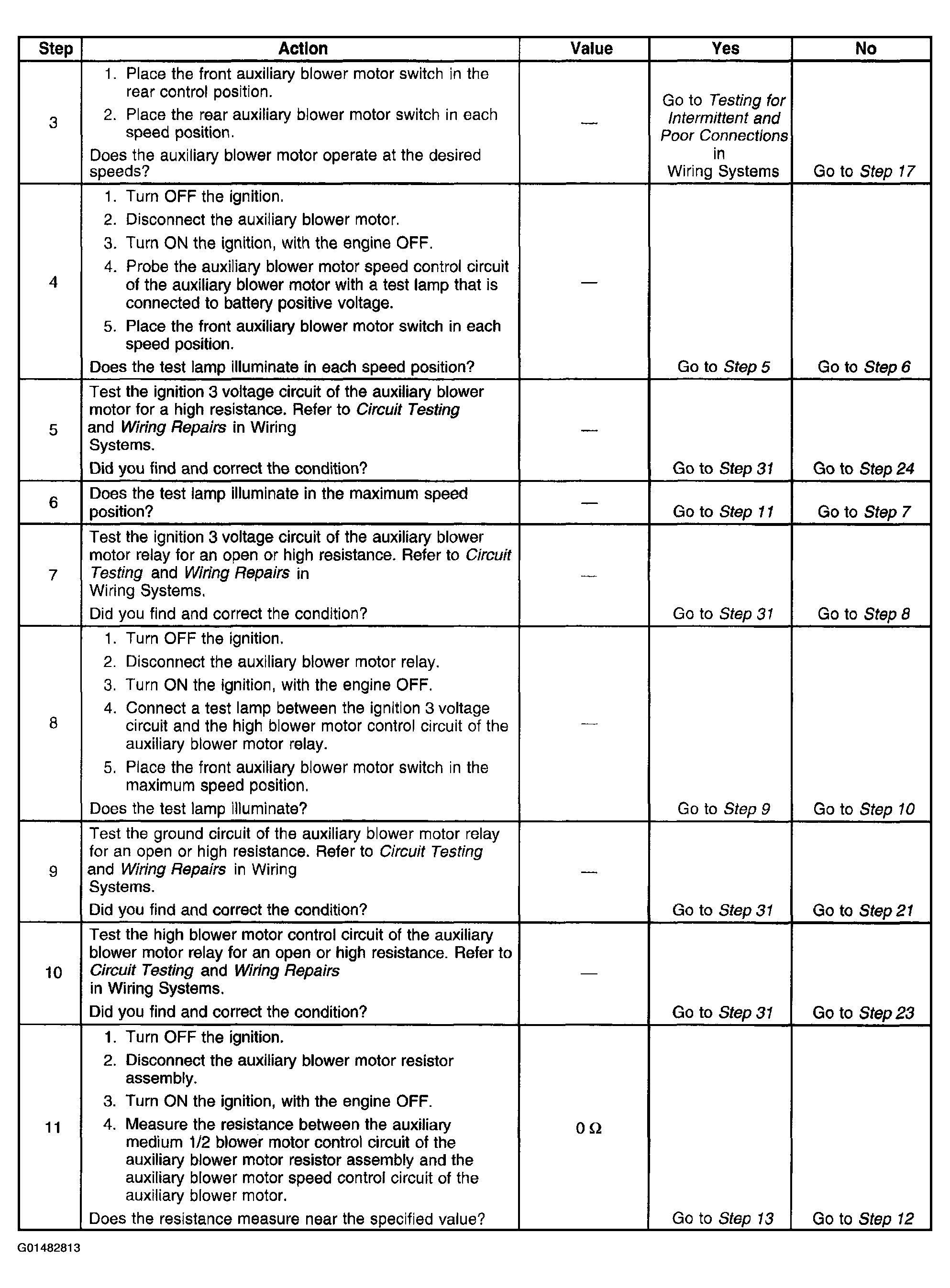

Fig 2: Diagnostic System Check - Blower Motor Malfunction - Auxiliary - C69 With U32 (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

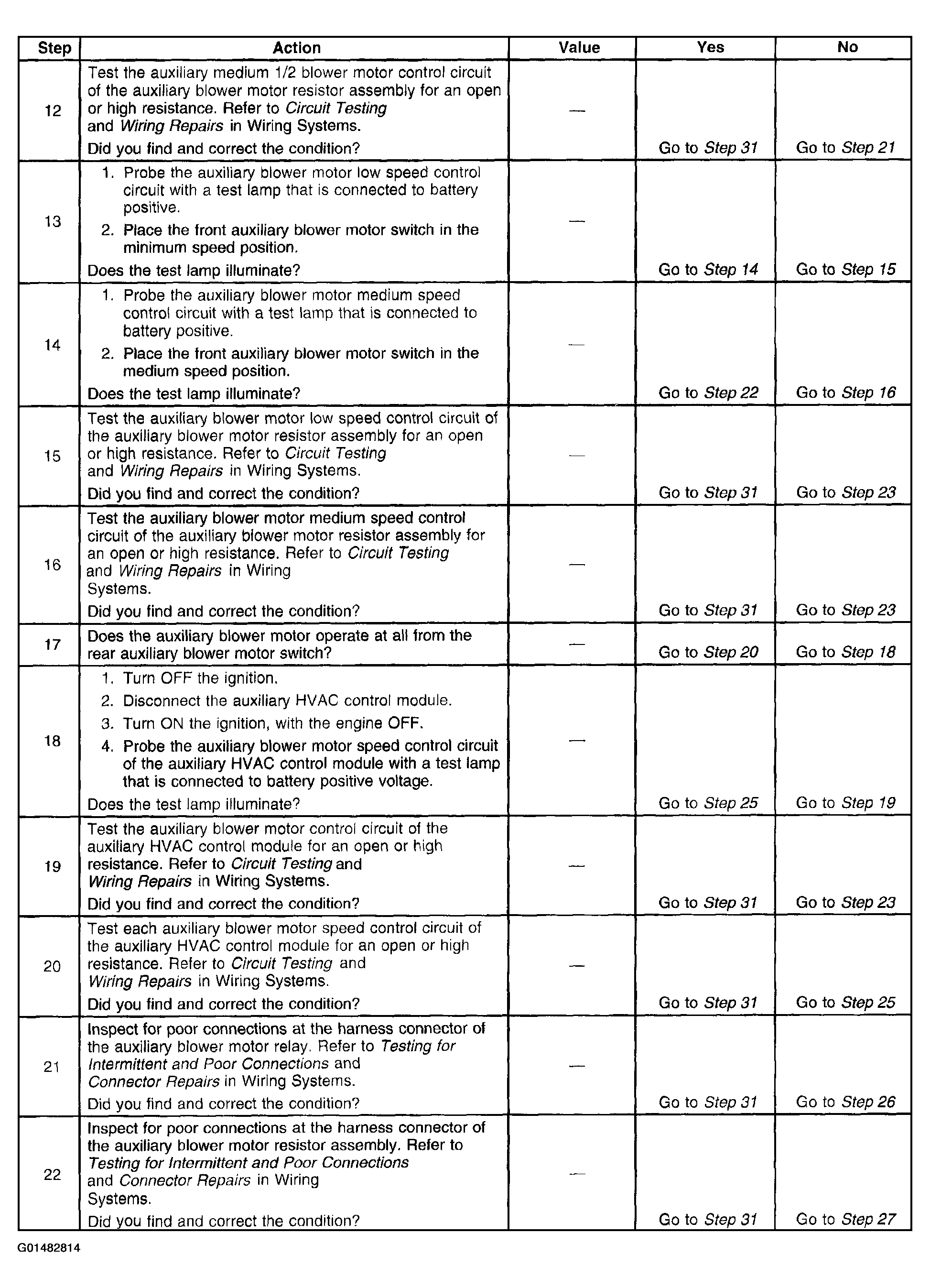

Fig 3: Diagnostic System Check - Blower Motor Malfunction - Auxiliary - C69 With U32 (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

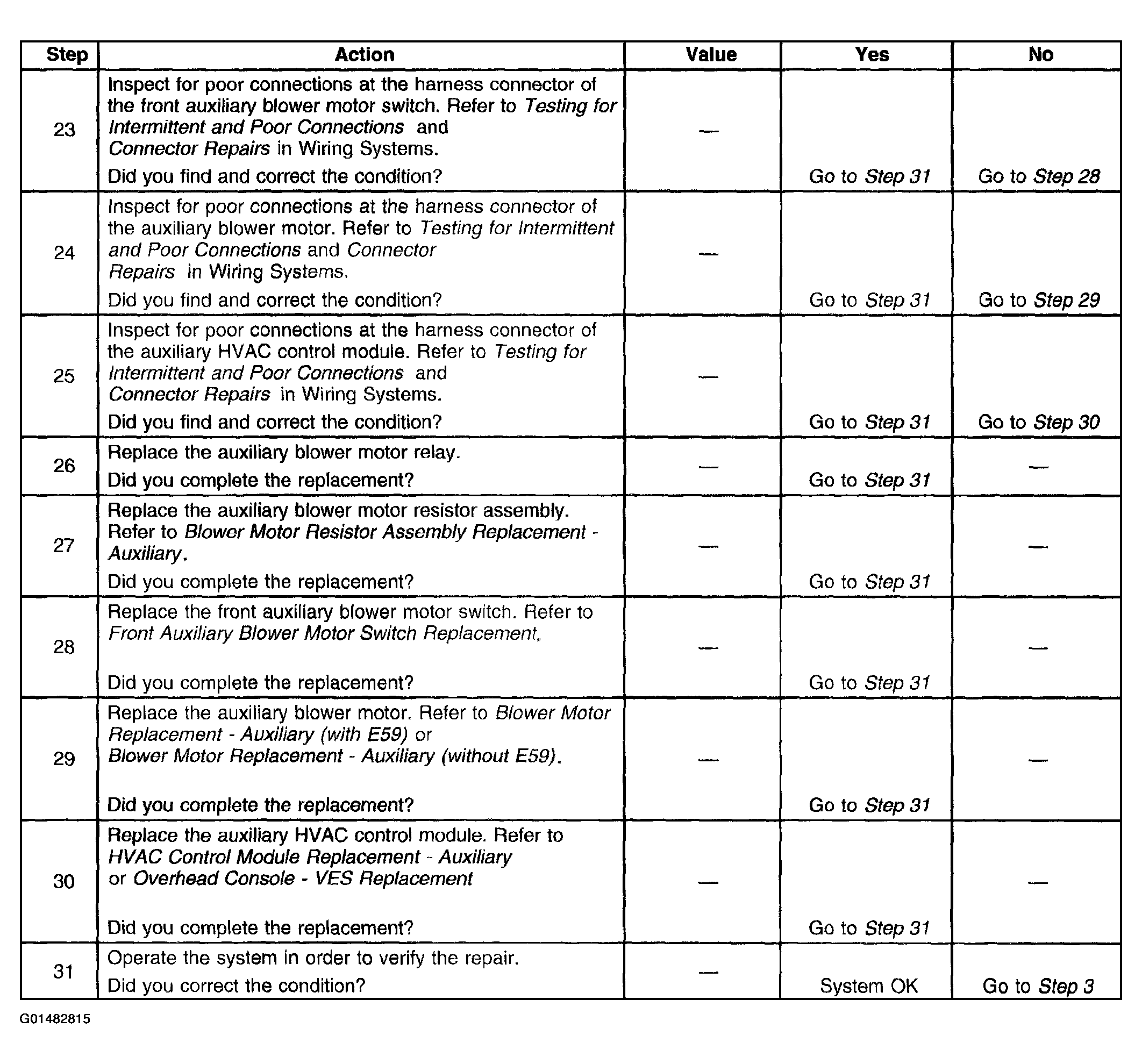

Fig 4: Diagnostic System Check - Blower Motor Malfunction - Auxiliary - C69 With U32 (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
