HVAC Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

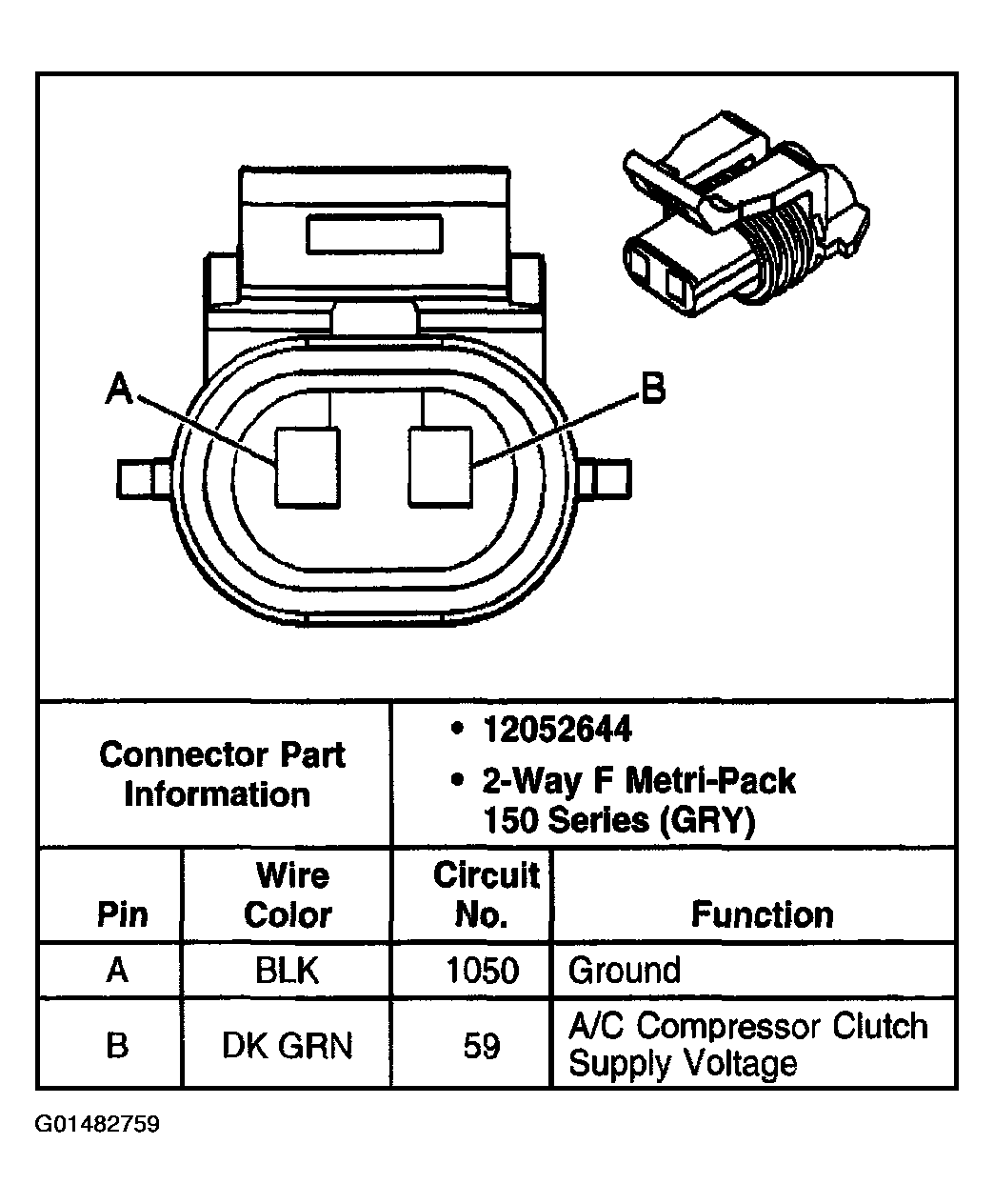

Fig 1: A/C Compressor Clutch Connector End View
G01482759Courtesy of GENERAL MOTORS CORP.

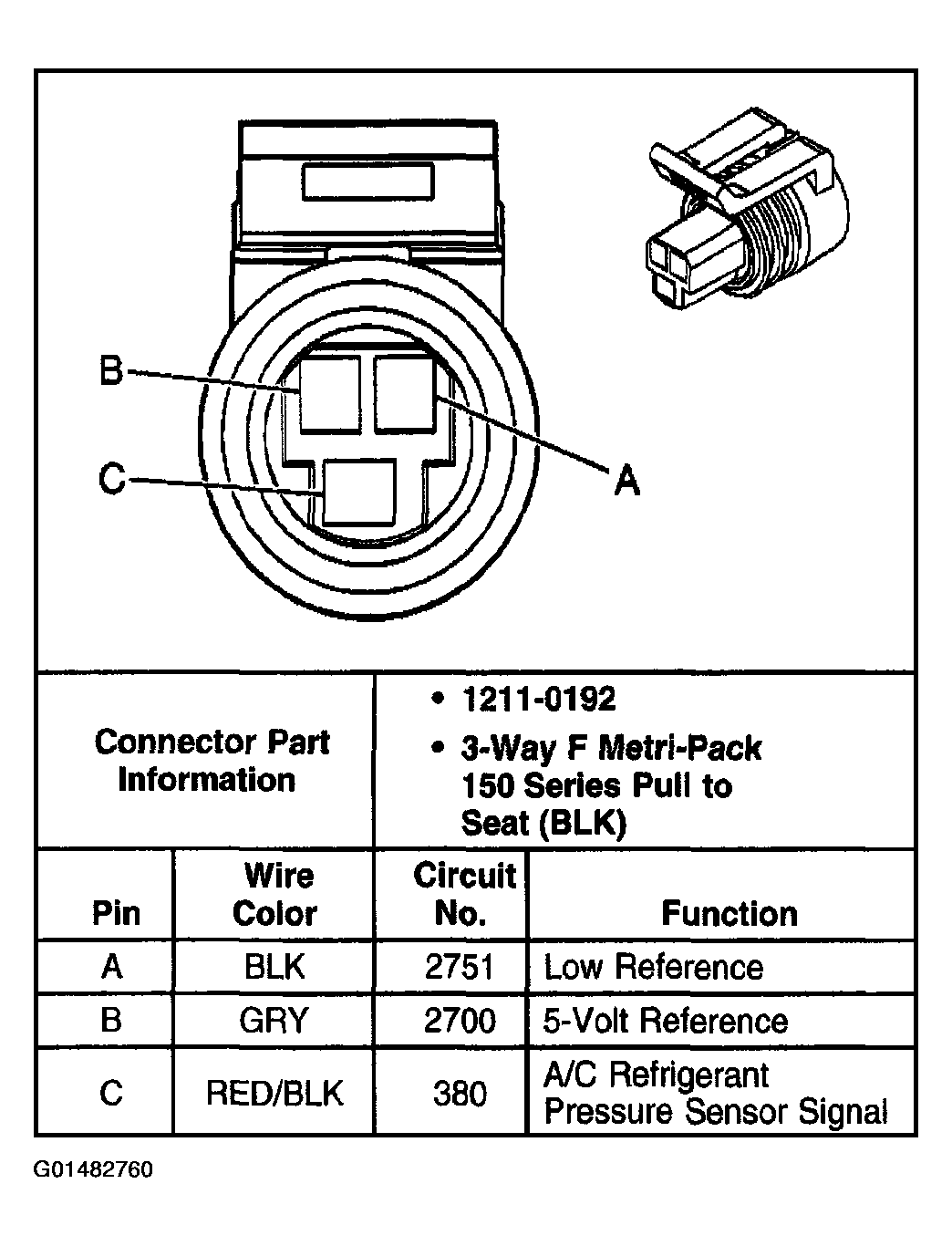

Fig 2: A/C Refrigerant Pressure Sensor Connector End View
G01482760Courtesy of GENERAL MOTORS CORP.

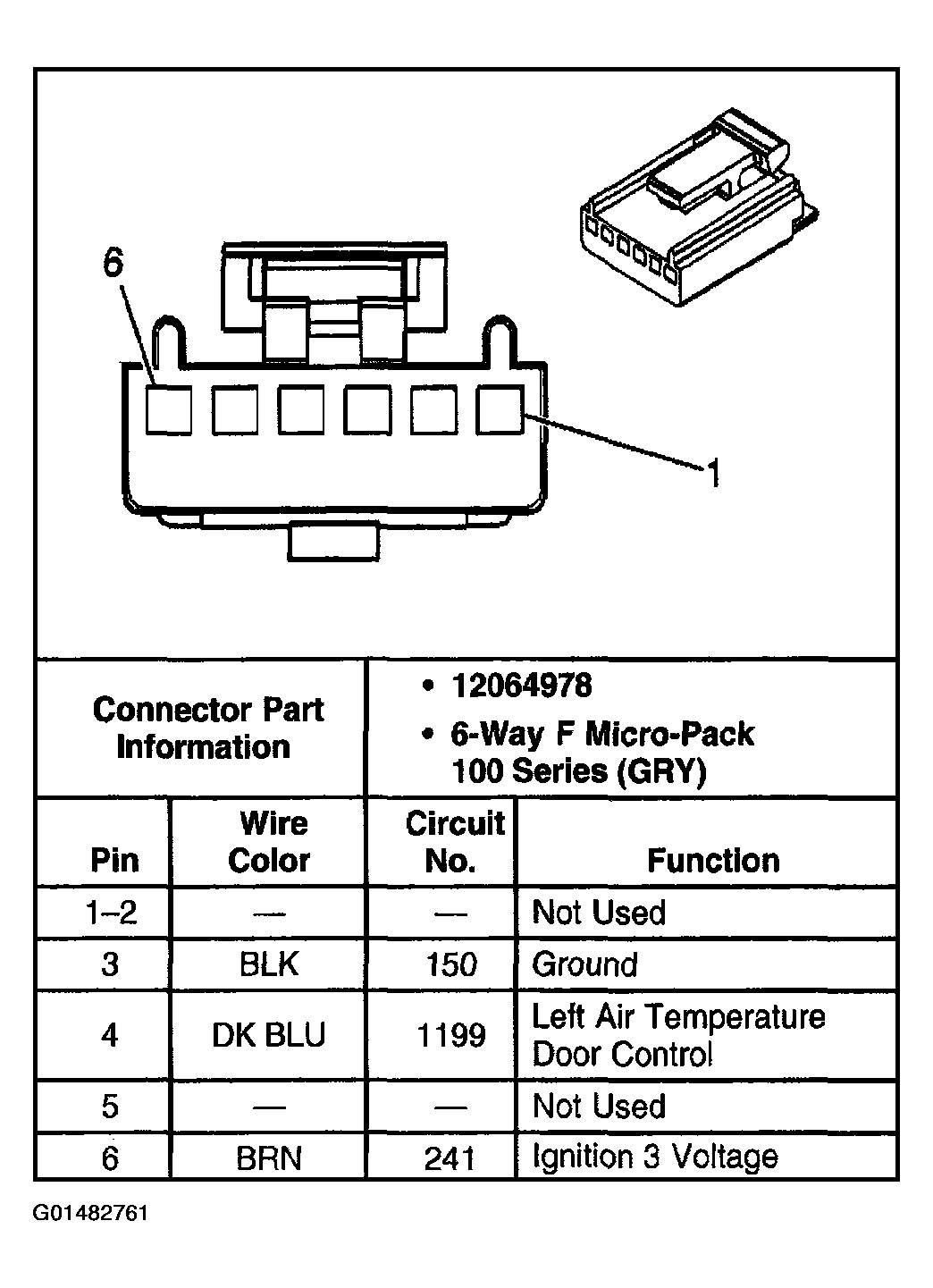

Fig 3: Air Temperature Actuator Connector End View (Left)
G01482761Courtesy of GENERAL MOTORS CORP.

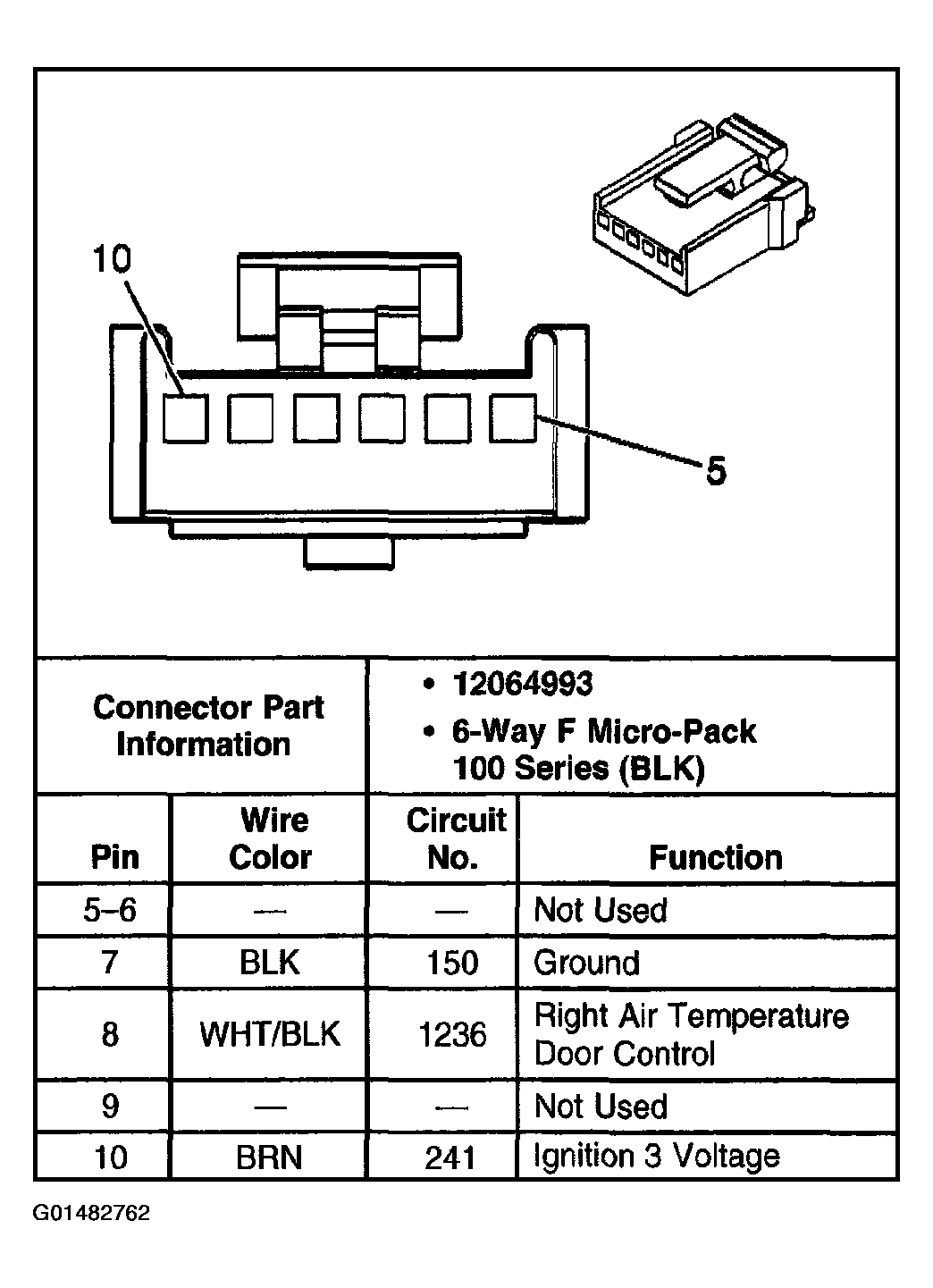

Fig 4: Air Temperature Actuator Connector End View (Right)
G01482762Courtesy of GENERAL MOTORS CORP.

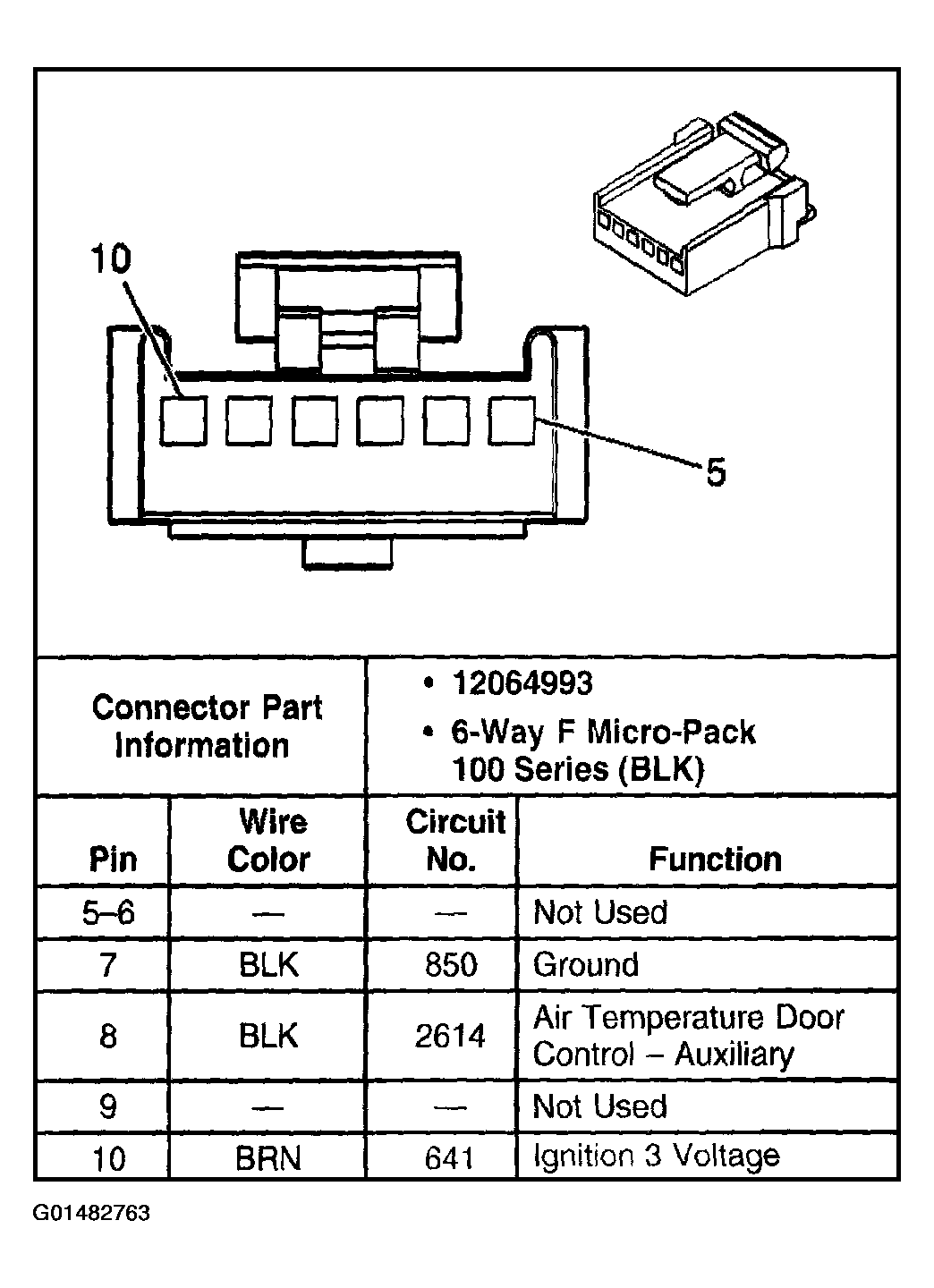

Fig 5: Air Temperature Actuator - Auxiliary Connector End View
G01482763Courtesy of GENERAL MOTORS CORP.

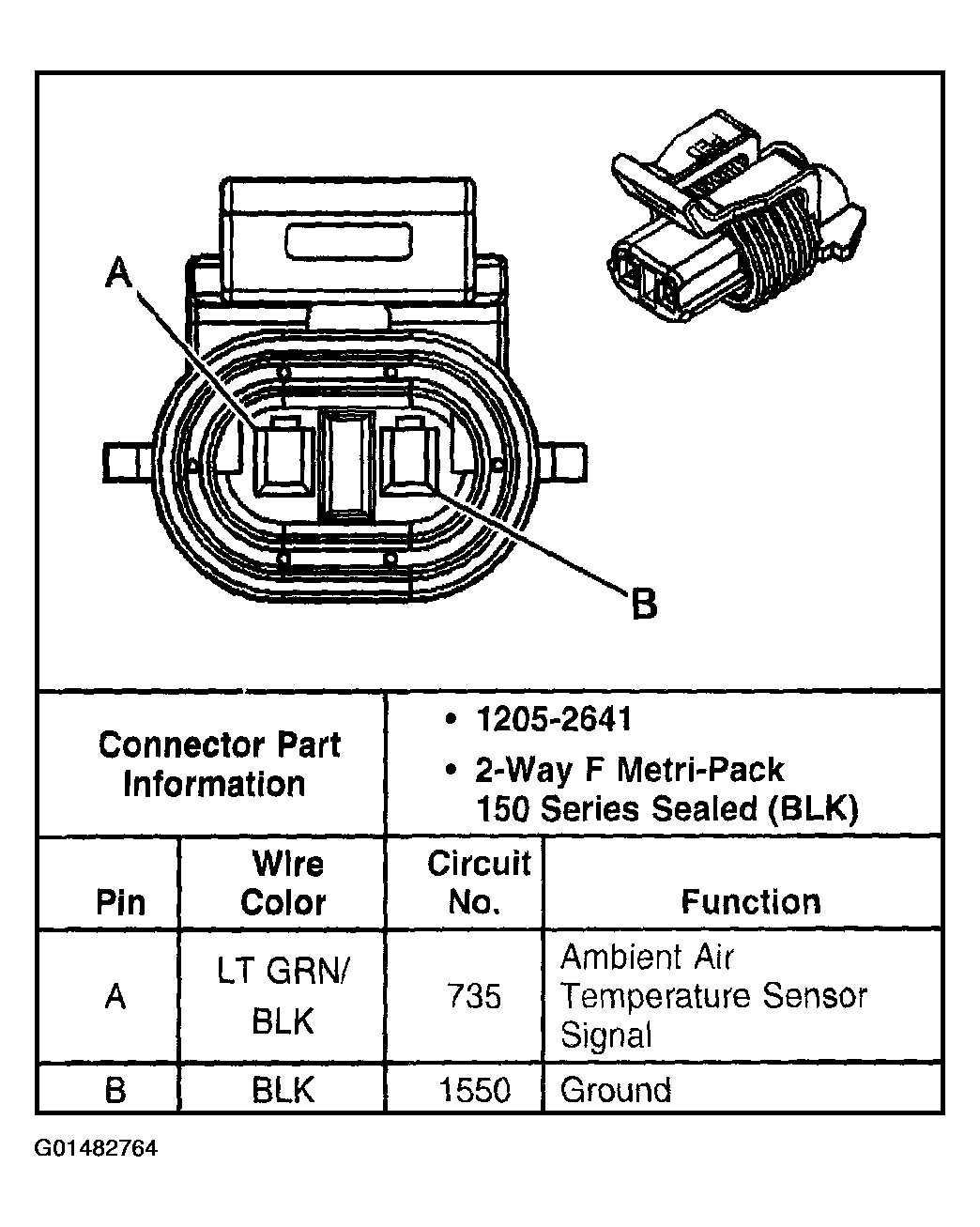

Fig 6: Ambient Air Temperature Sensor Connector End View
G01482764Courtesy of GENERAL MOTORS CORP.

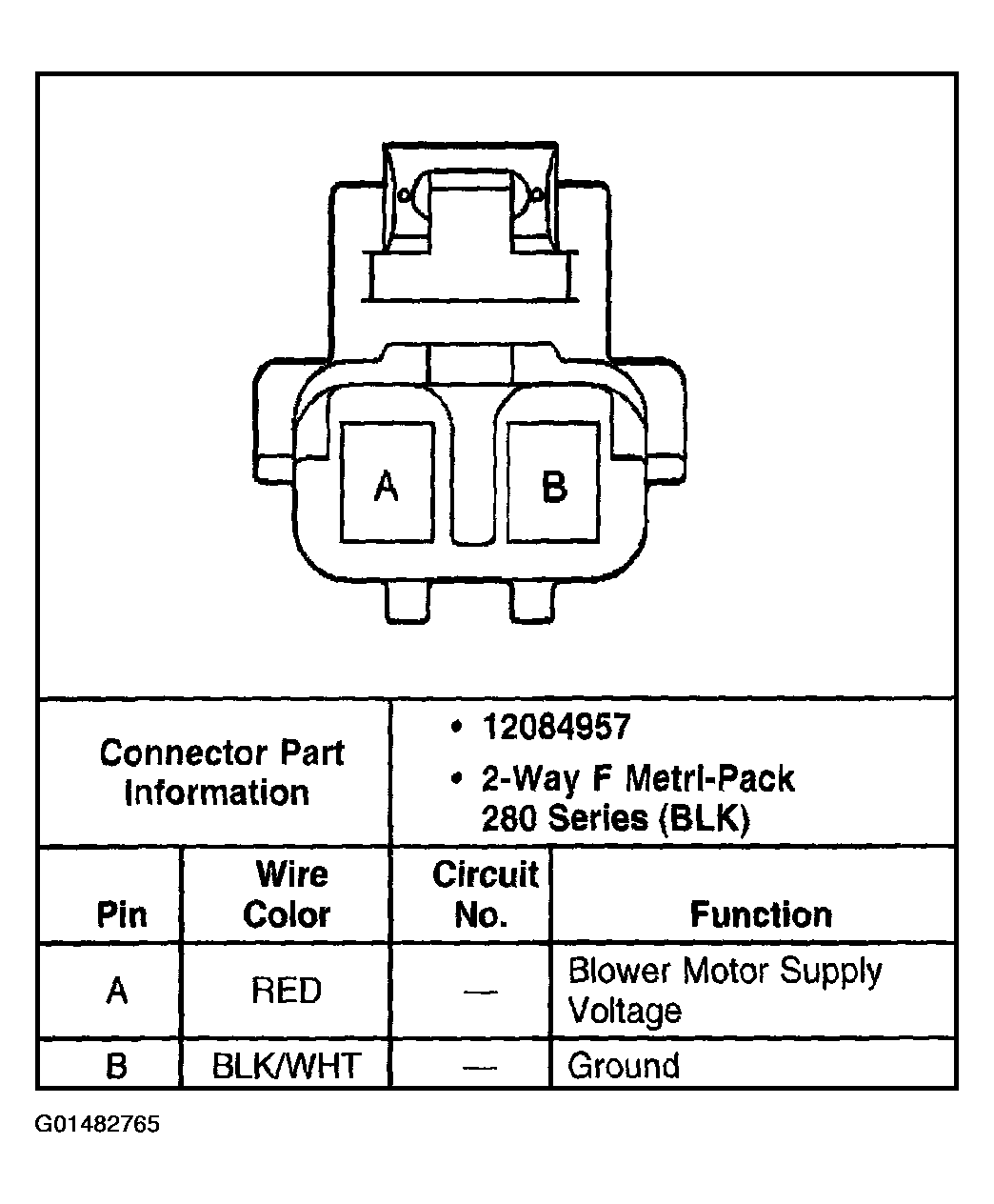

Fig 7: Blower Motor Connector End View
G01482765Courtesy of GENERAL MOTORS CORP.

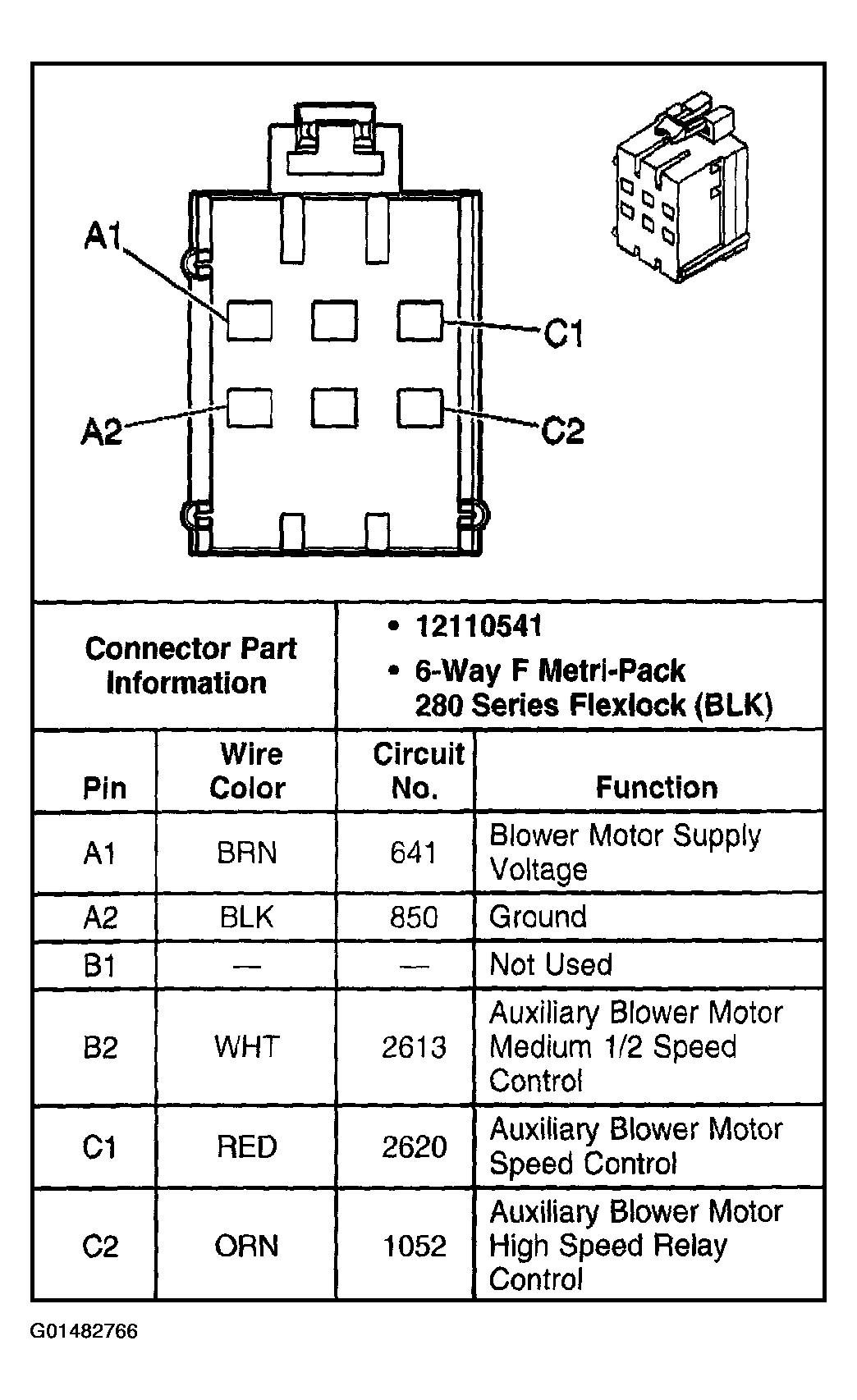

Fig 8: Blower Motor Relay - Auxiliary Connector End View
G01482766Courtesy of GENERAL MOTORS CORP.

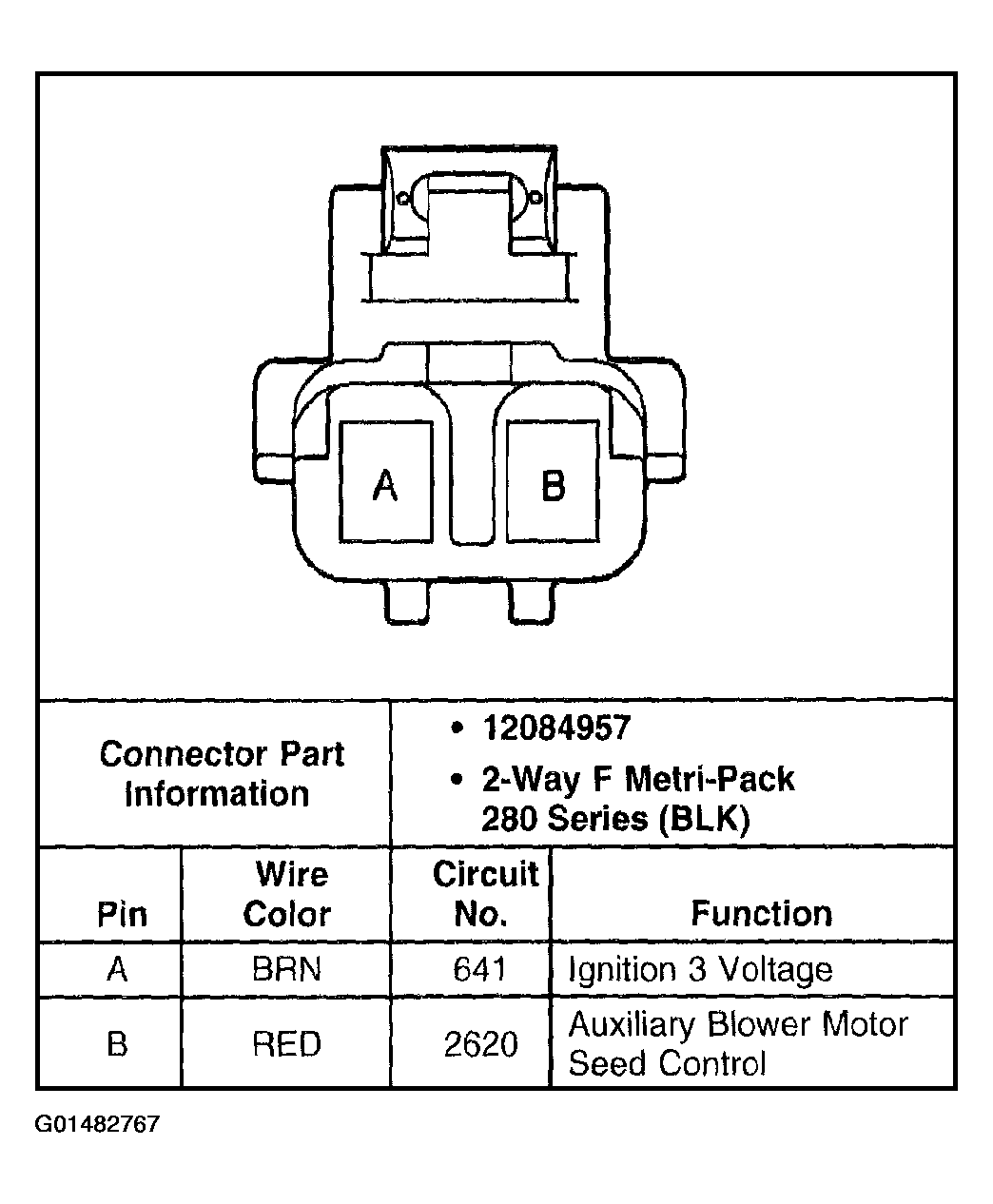

Fig 9: Blower Motor - Auxiliary Connector End View
G01482767Courtesy of GENERAL MOTORS CORP.

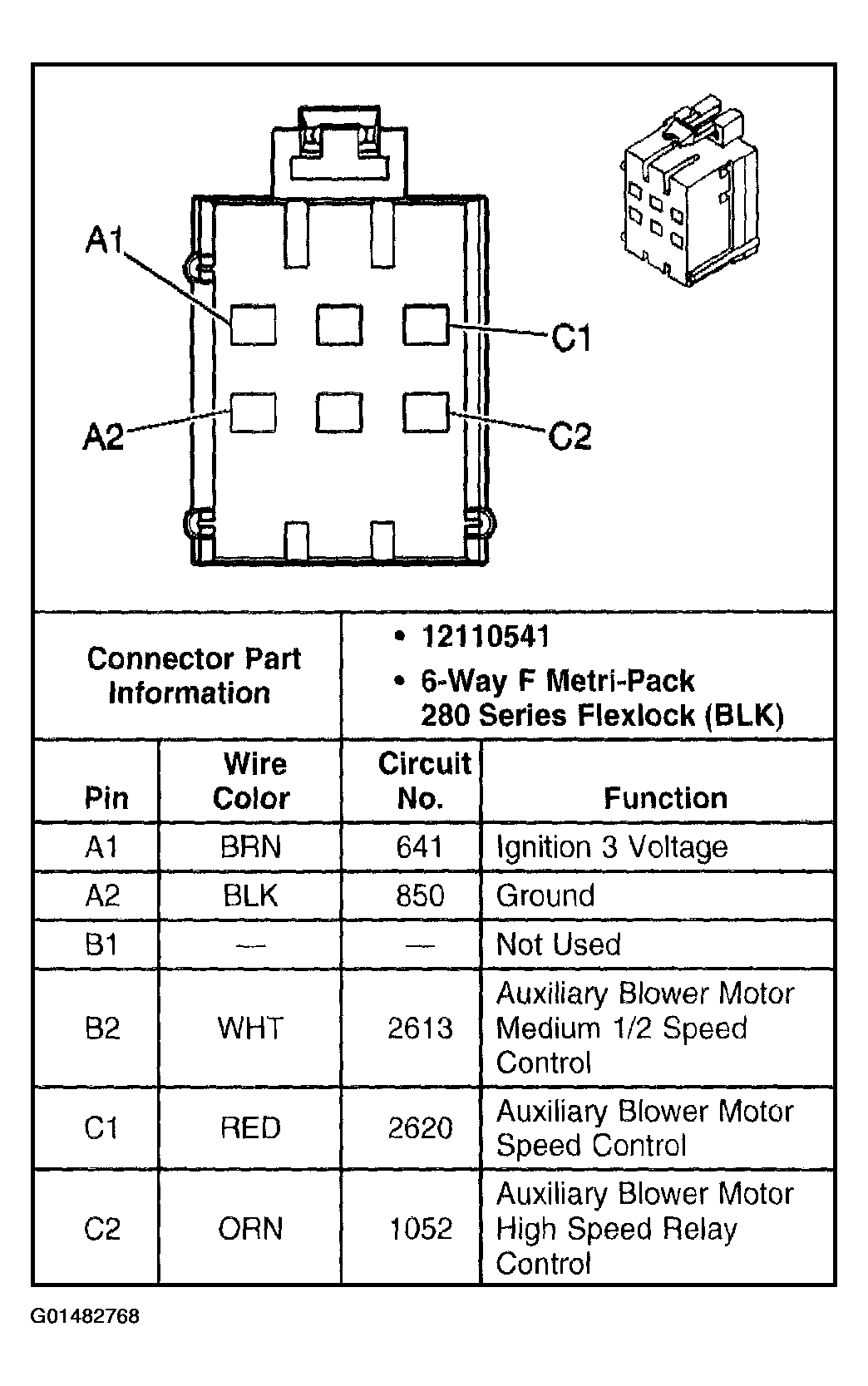

Fig 10: Blower Motor - Auxiliary Connector End View
G01482768Courtesy of GENERAL MOTORS CORP.

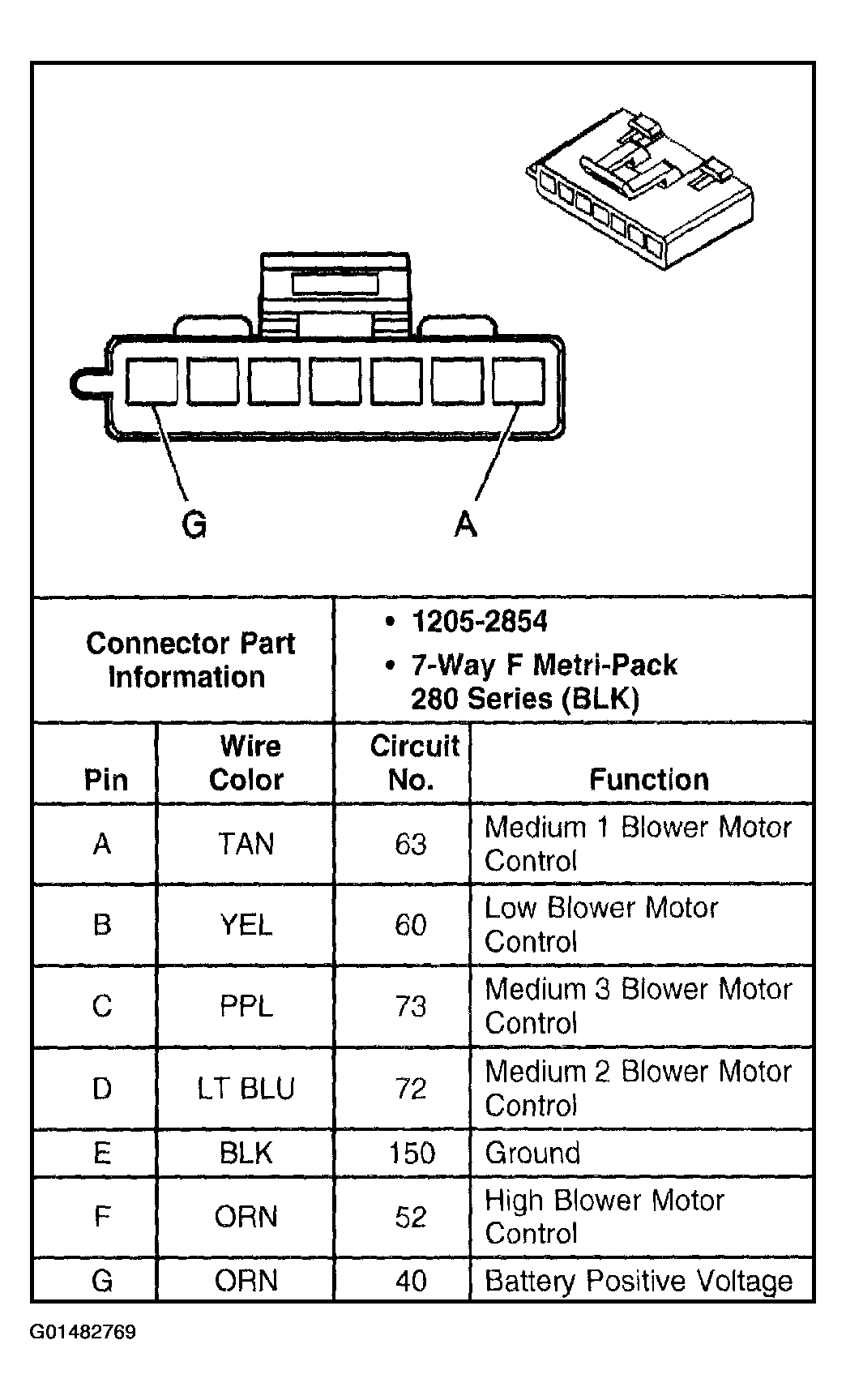

Fig 11: Blower Motor Resistor Assembly Connector End View
G01482769Courtesy of GENERAL MOTORS CORP.

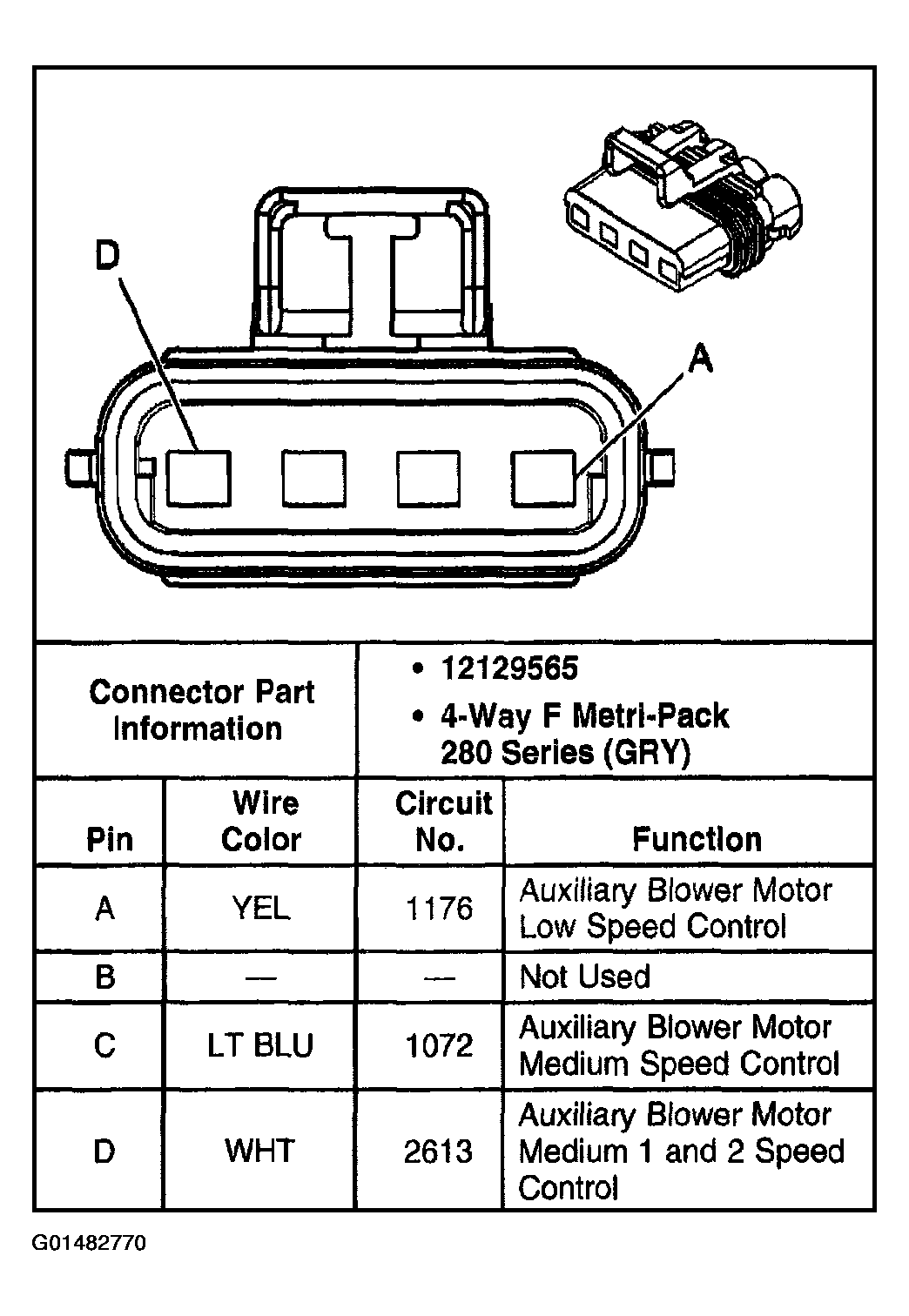

Fig 12: Blower Motor Resistor Assembly - Auxiliary Connector End View
G01482770Courtesy of GENERAL MOTORS CORP.

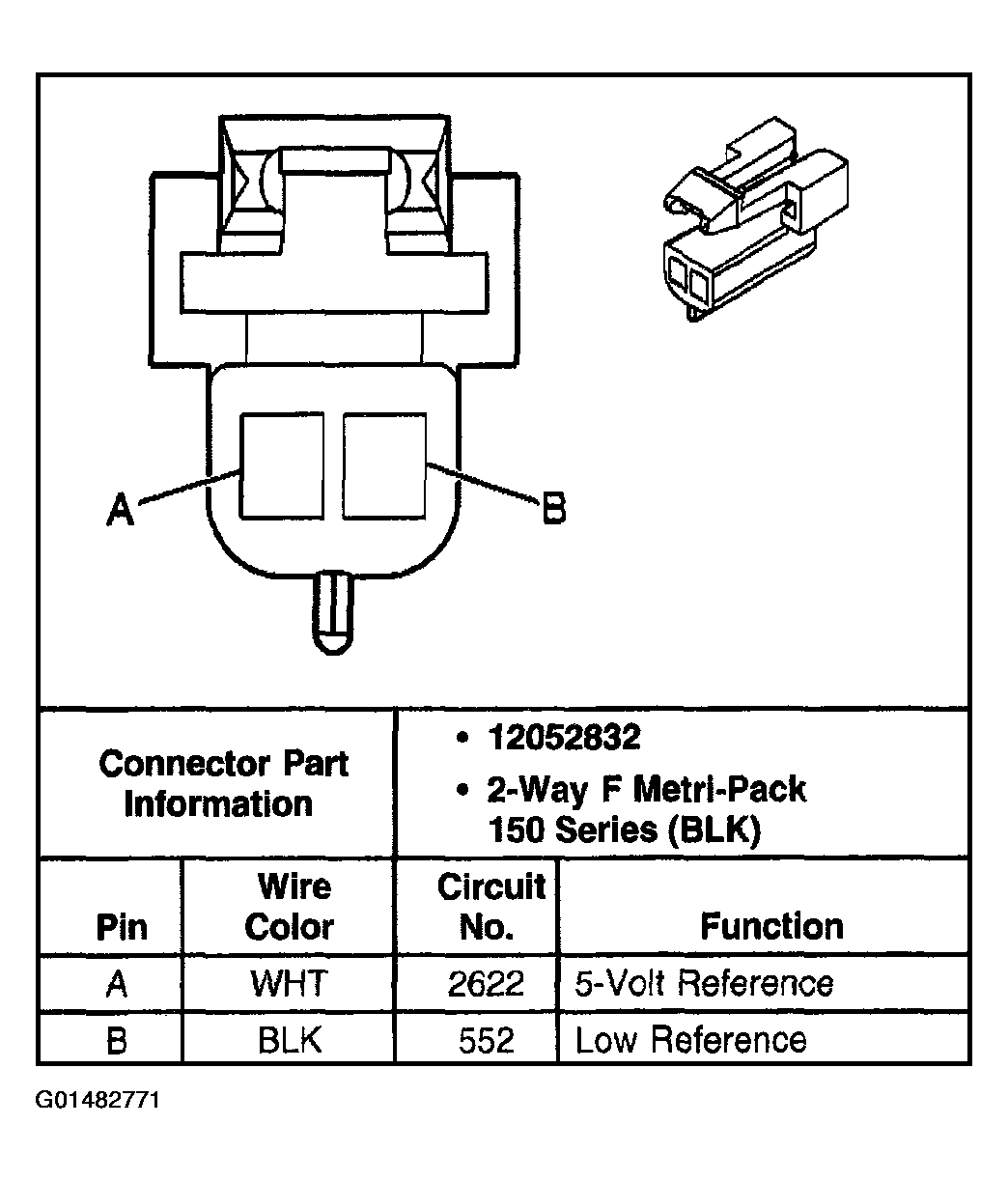

Fig 13: Evaporative Temperature Sensor Connector End View
G01482771Courtesy of GENERAL MOTORS CORP.

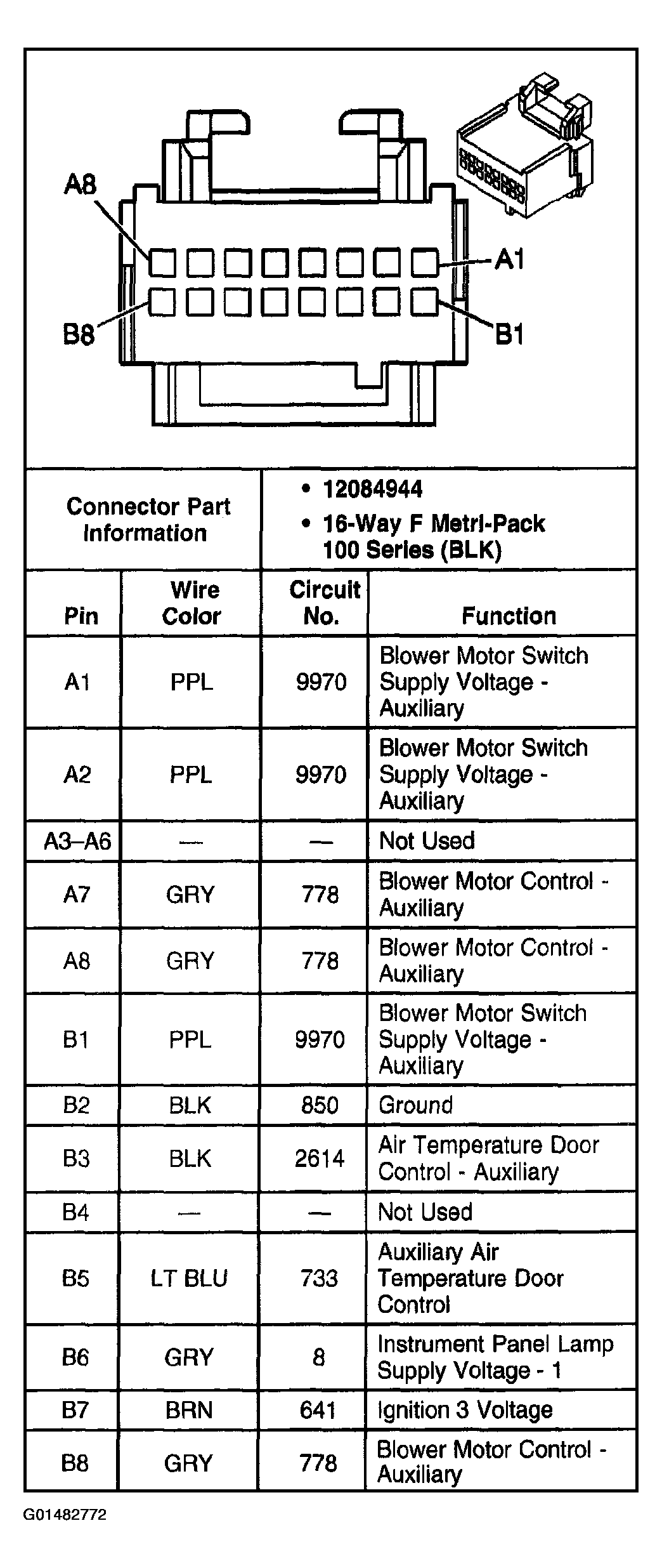

Fig 14: HVAC Control Module - Auxiliary Connector C1 Connector End View
G01482772Courtesy of GENERAL MOTORS CORP.

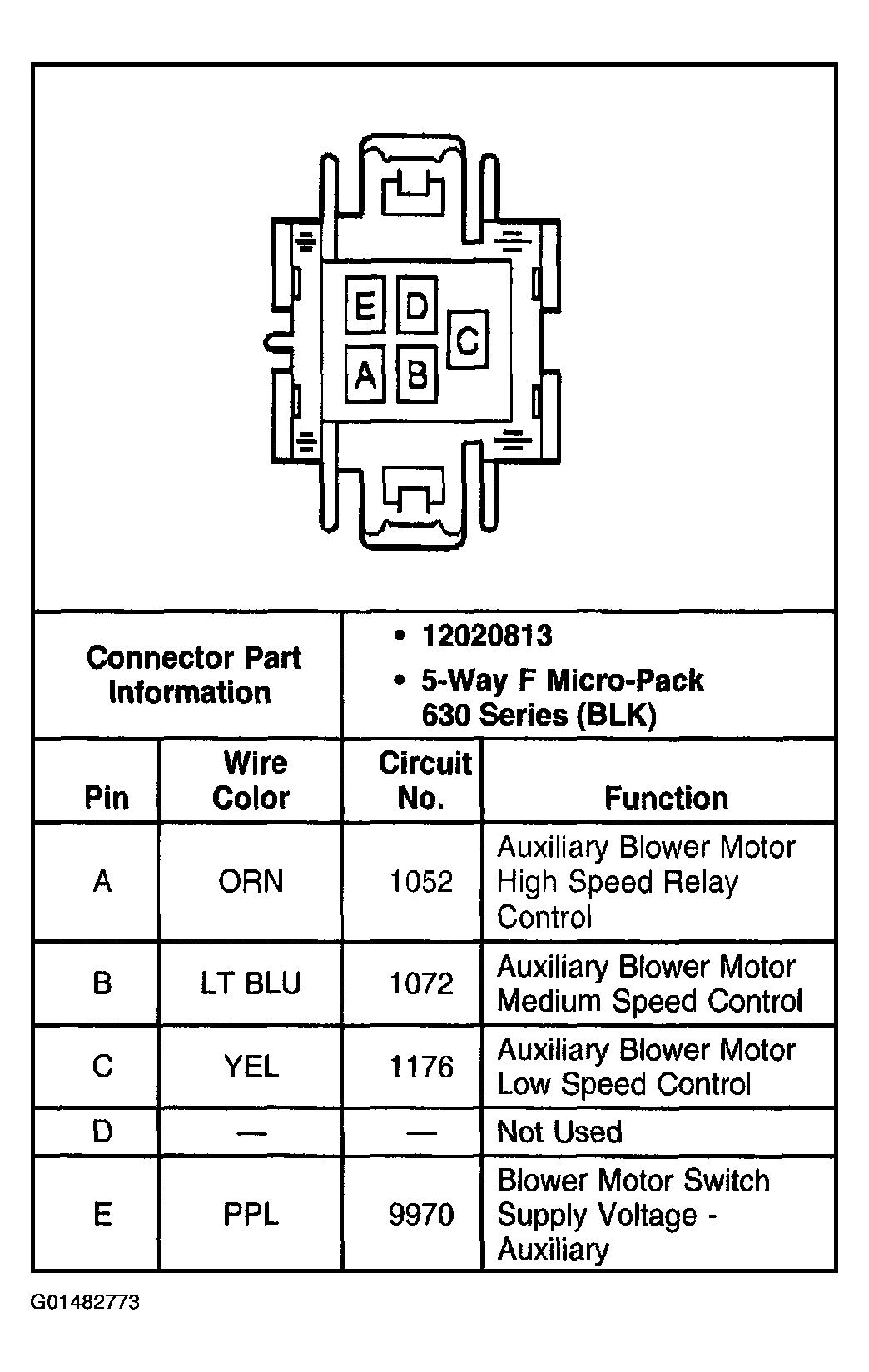

Fig 15: HVAC Control Module - Auxiliary Connector C2 Connector End View
G01482773Courtesy of GENERAL MOTORS CORP.

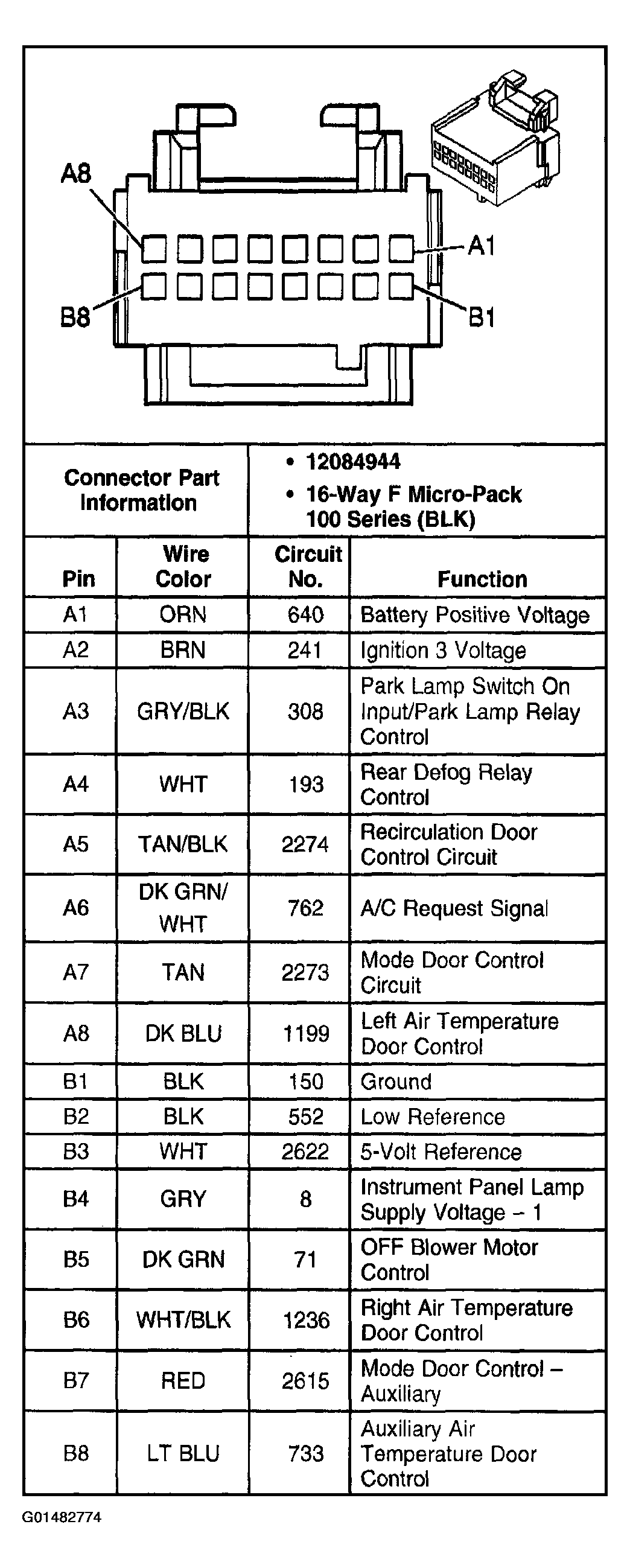

Fig 16: HVAC Control Module Connector C1 Connector End View
G01482774Courtesy of GENERAL MOTORS CORP.

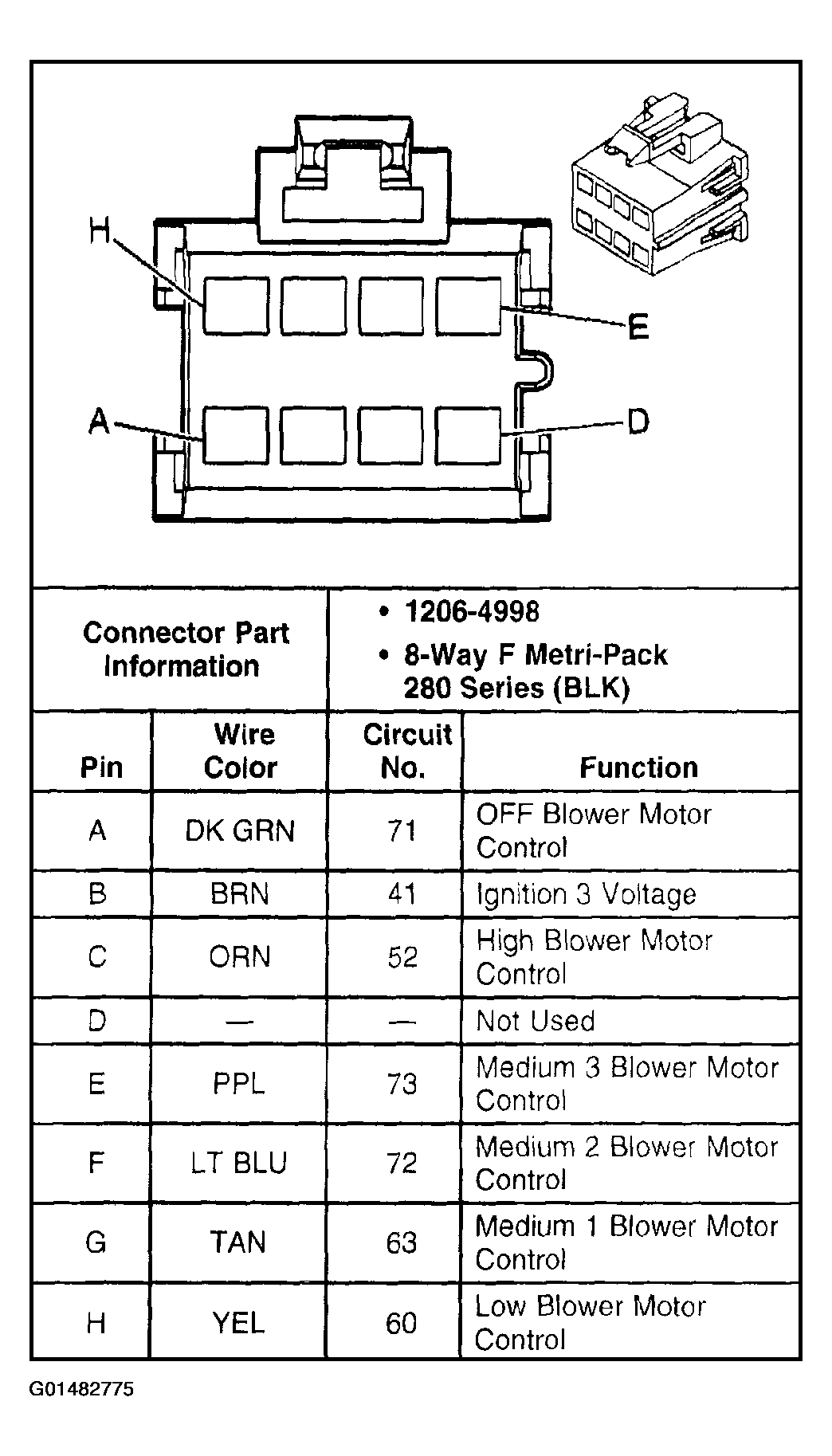

Fig 17: HVAC Control Module Connector C2 Connector End View
G01482775Courtesy of GENERAL MOTORS CORP.

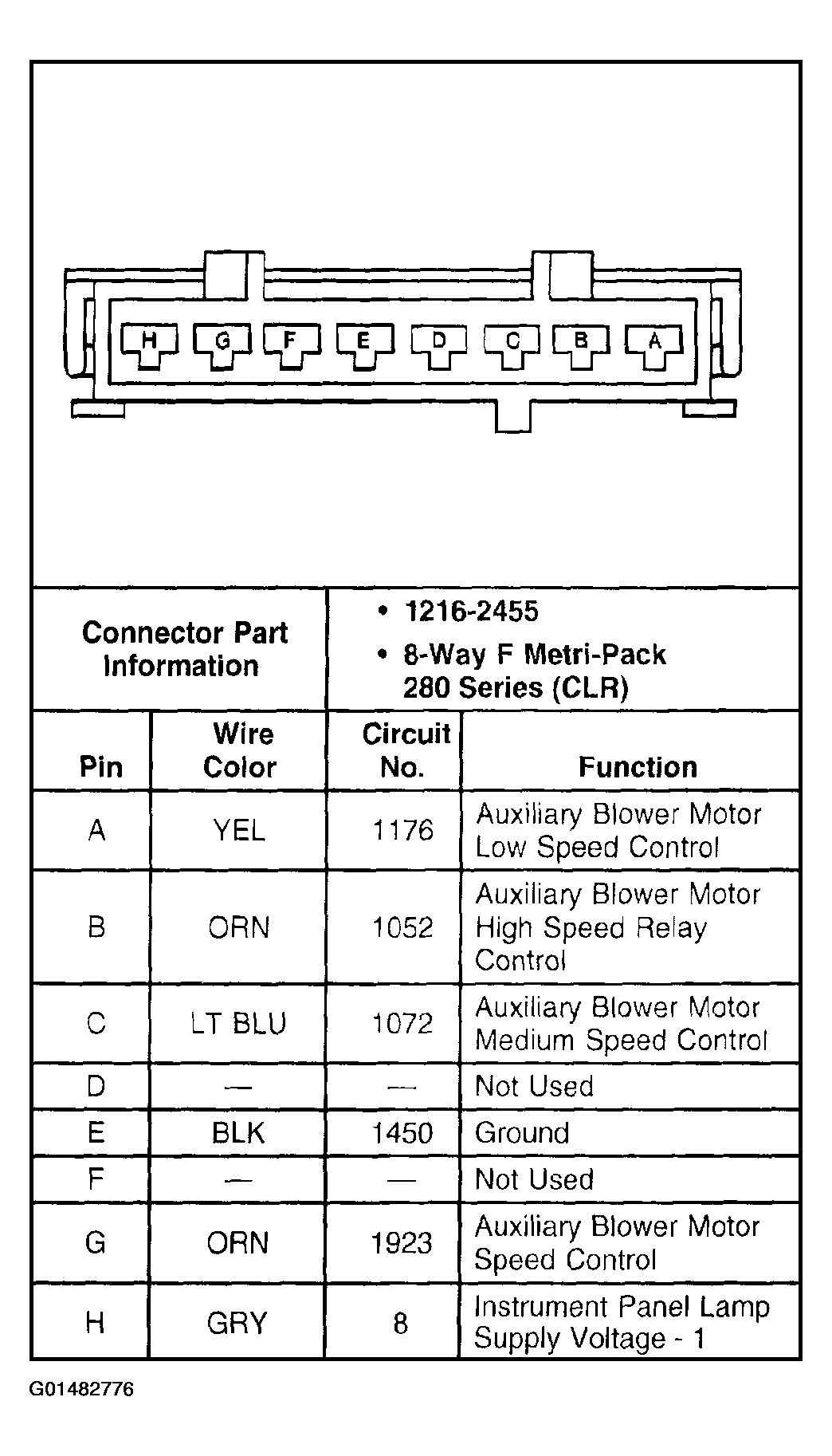

Fig 18: Rear Window Wiper/Washer and Multifunction Switch Connector C2, Blower Switch Connector End View - Auxiliary
G01482776Courtesy of GENERAL MOTORS CORP.

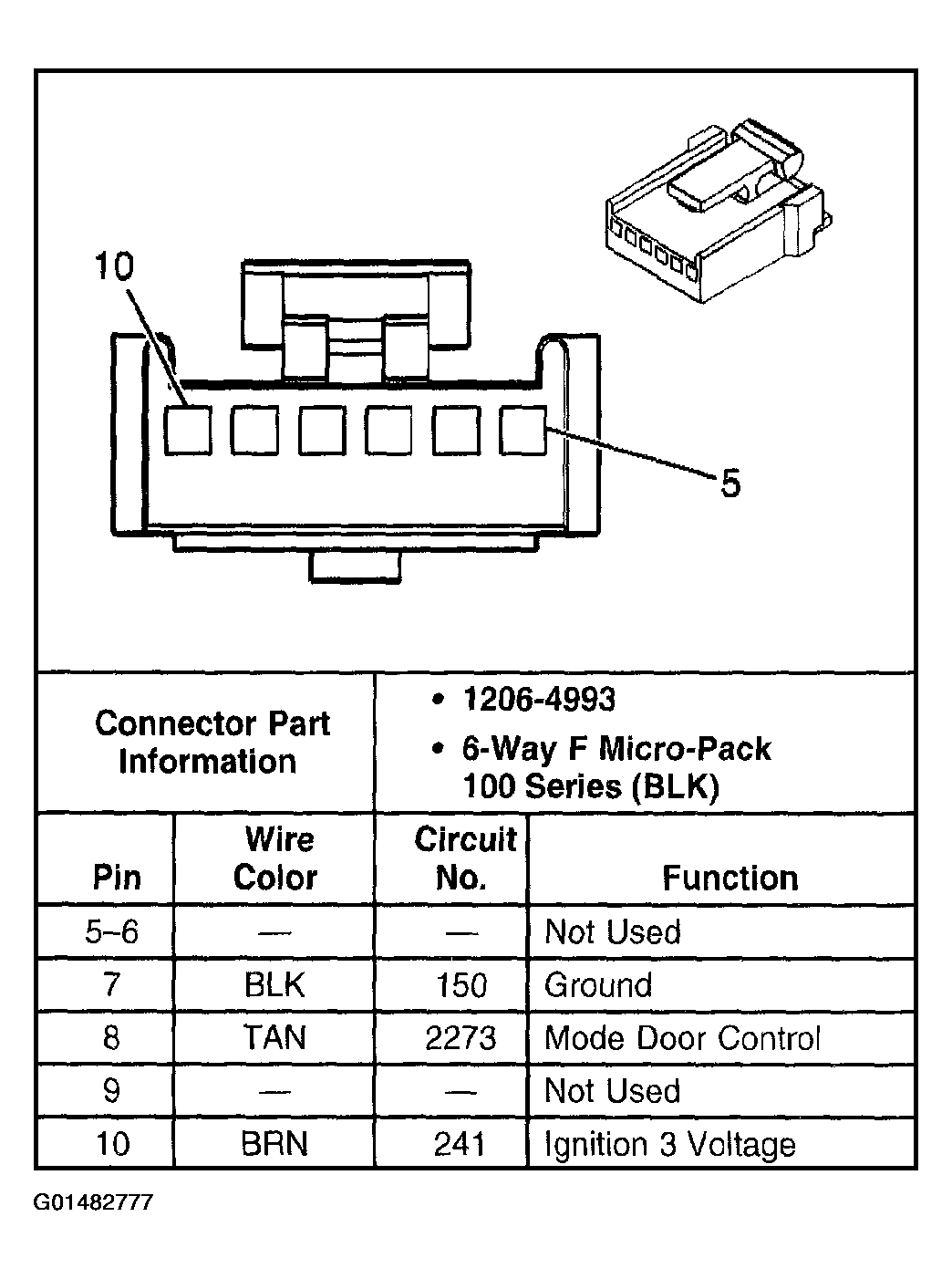

Fig 19: Mode Actuator Connector End View
G01482777Courtesy of GENERAL MOTORS CORP.

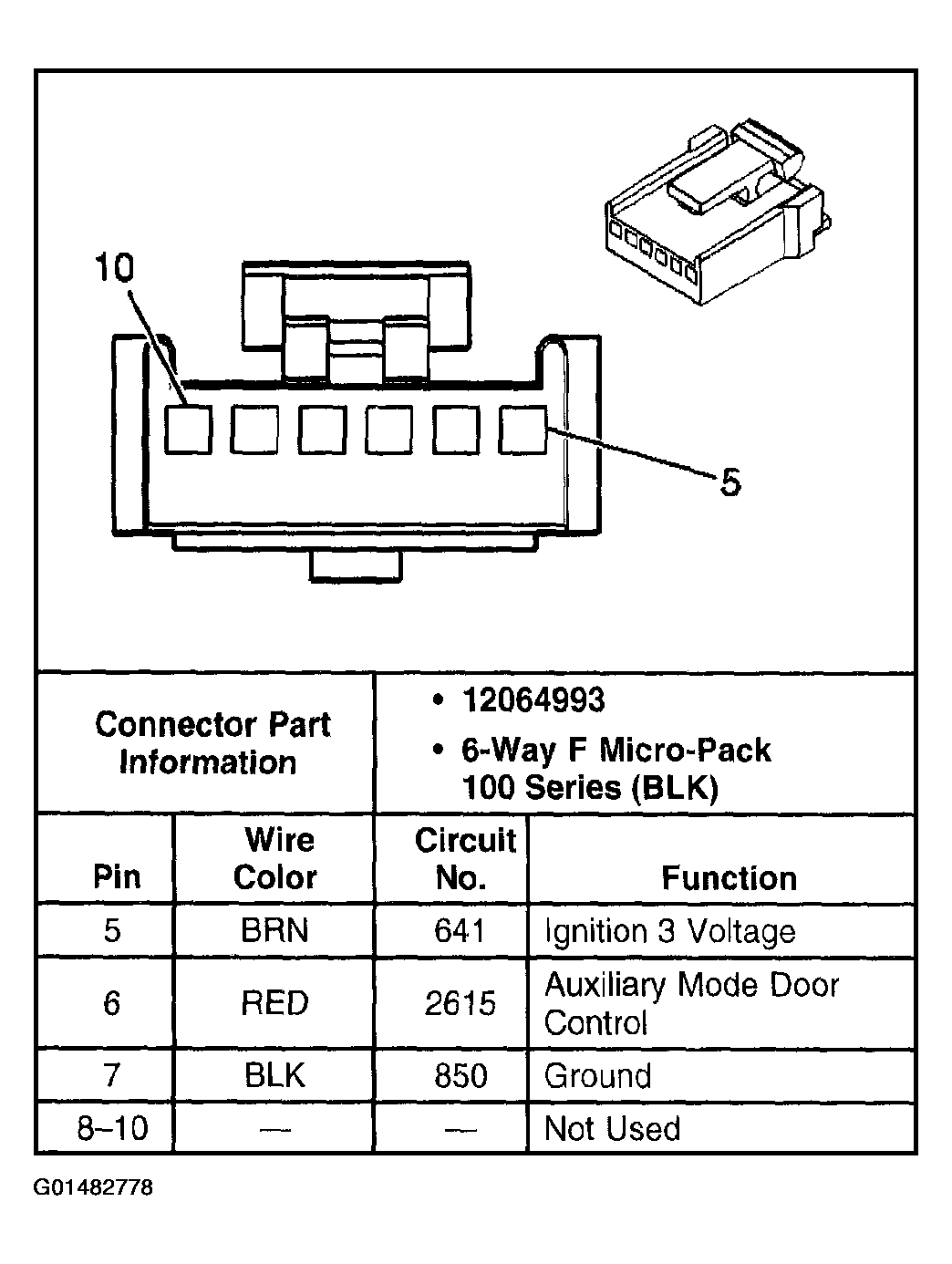

Fig 20: Mode Actuator - Auxiliary Connector End View
G01482778Courtesy of GENERAL MOTORS CORP.

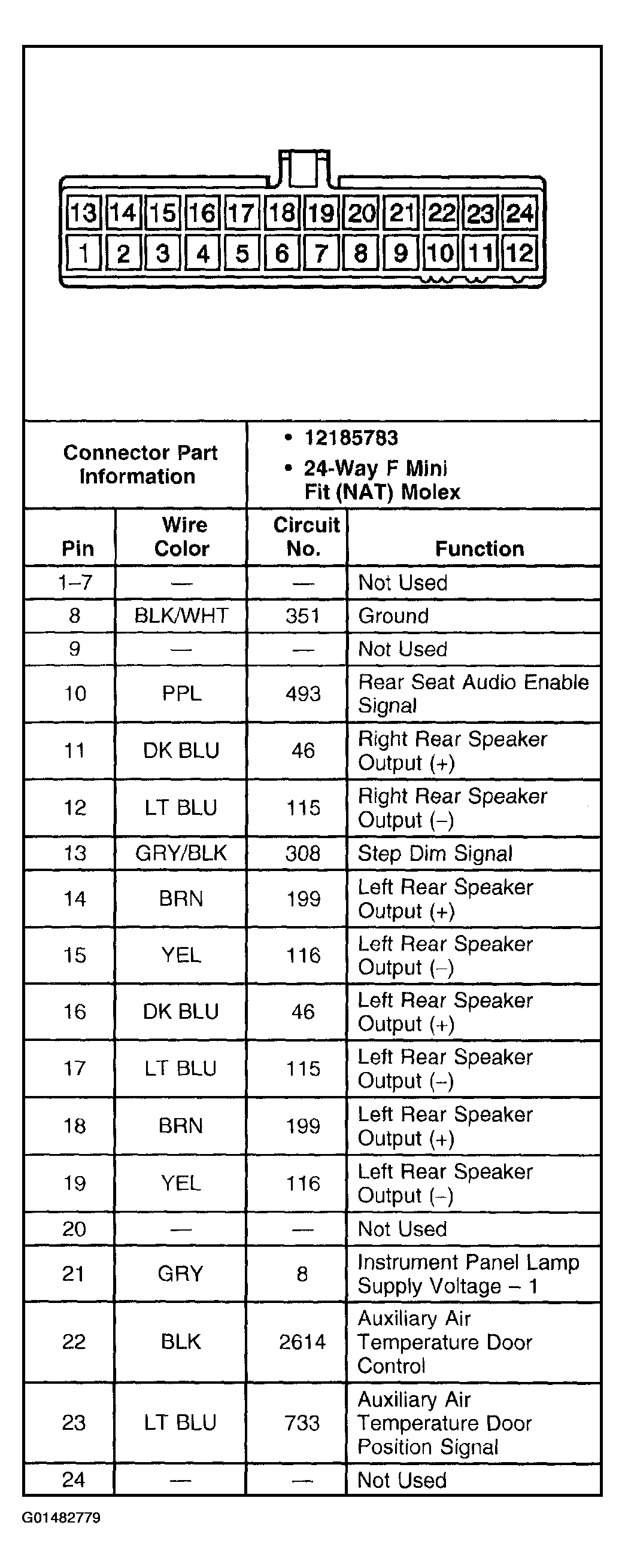

Fig 21: Rear Video/Audio/HVAC Module - C1 Connector End View
G01482779Courtesy of GENERAL MOTORS CORP.

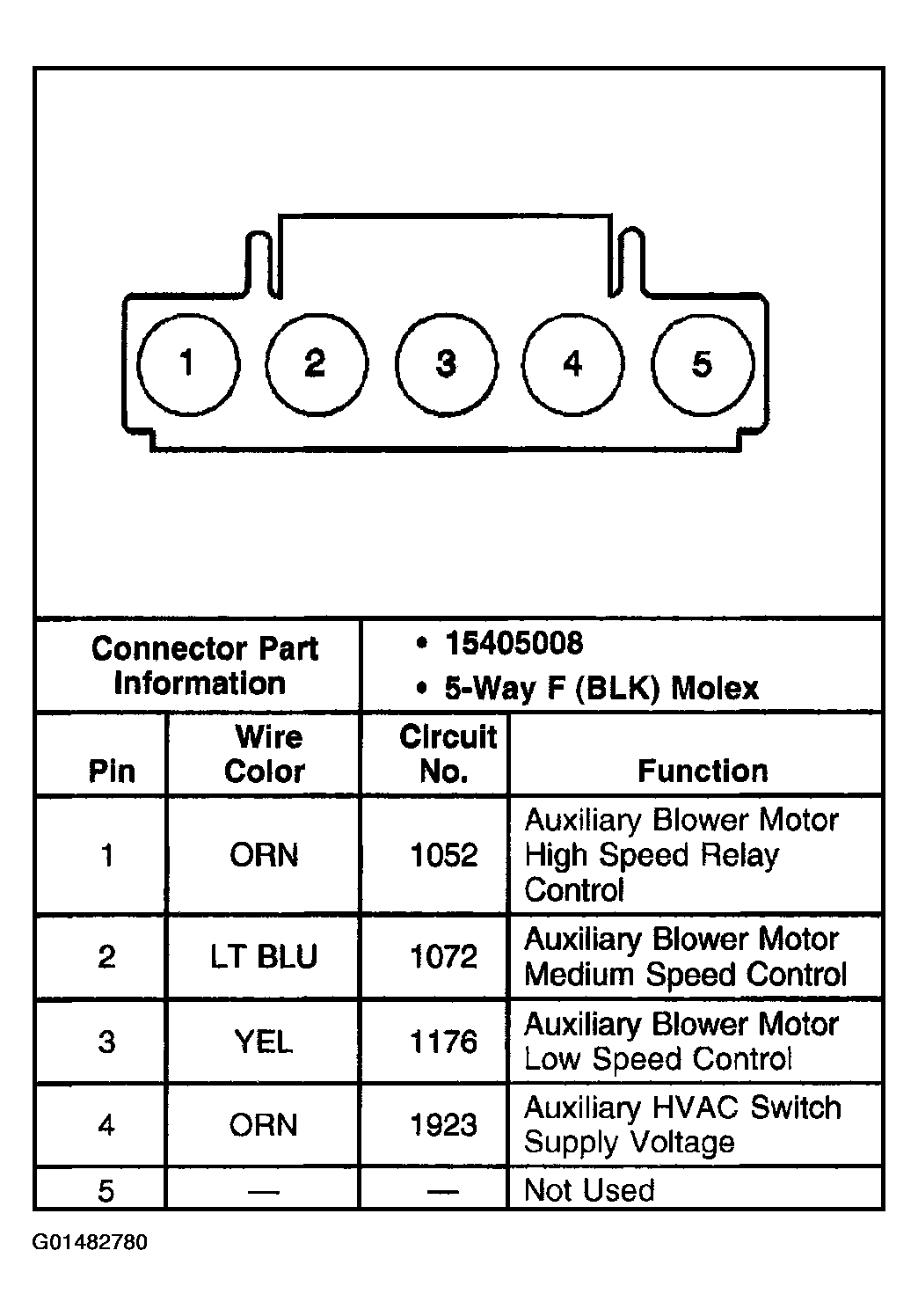

Fig 22: Rear Video/Audio/HVAC Module - C2 Connector End View
G01482780Courtesy of GENERAL MOTORS CORP.

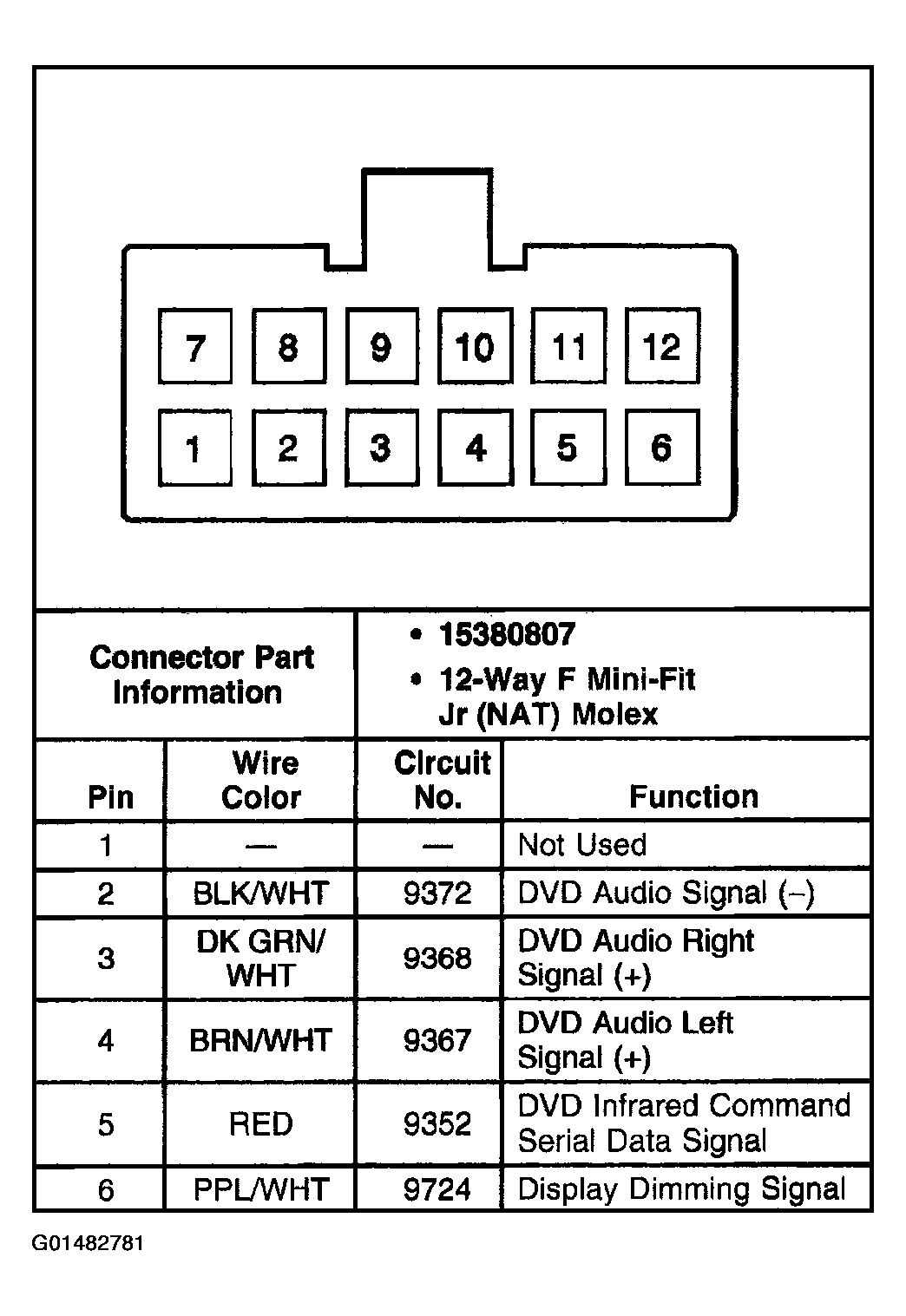

Fig 23: Rear Video/Audio/HVAC Module - C3 Connector End View (1 Of 2)
G01482781Courtesy of GENERAL MOTORS CORP.

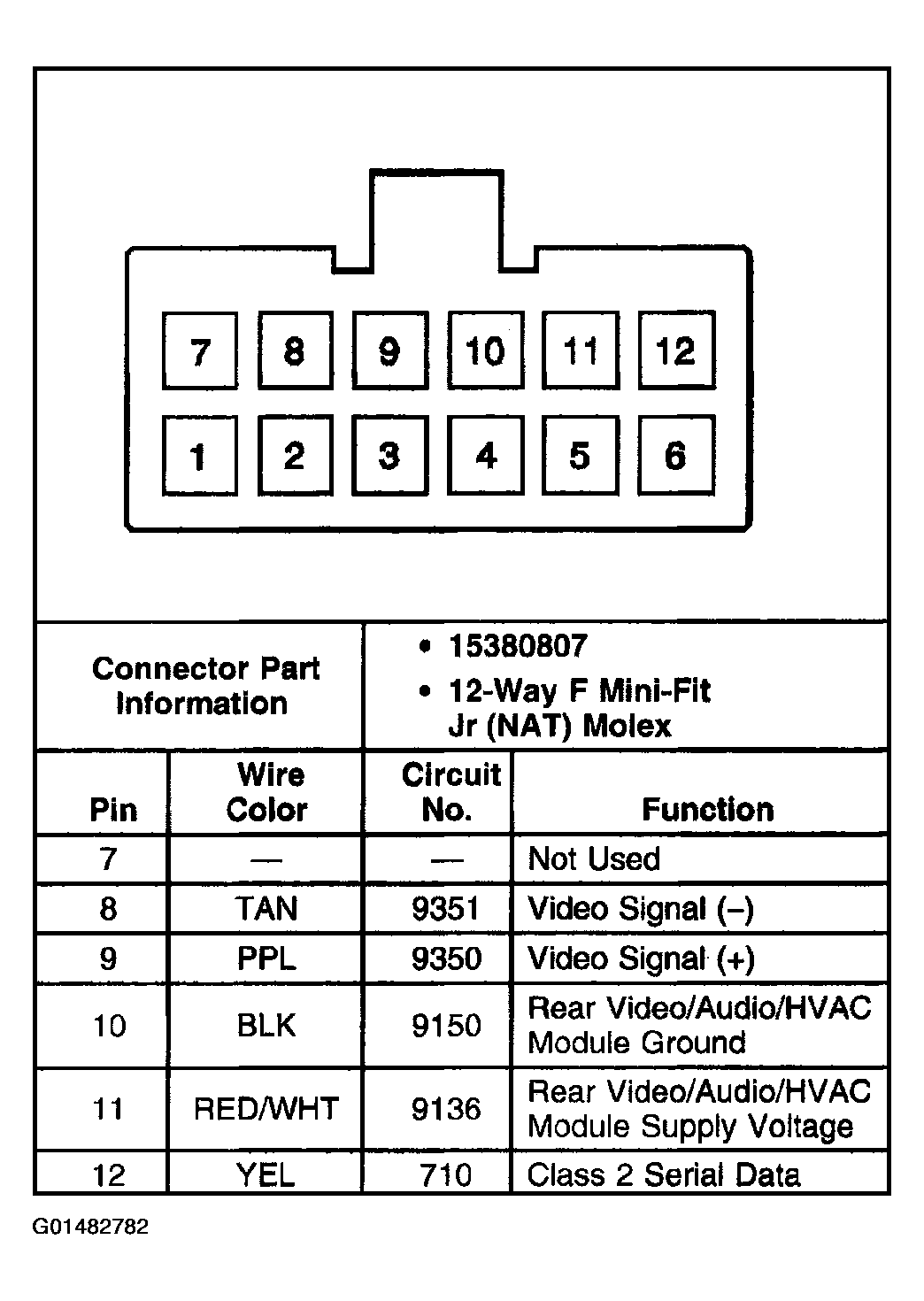

Fig 24: Rear Video/Audio/HVAC Module - C3 Connector End View (2 Of 2)
G01482782Courtesy of GENERAL MOTORS CORP.

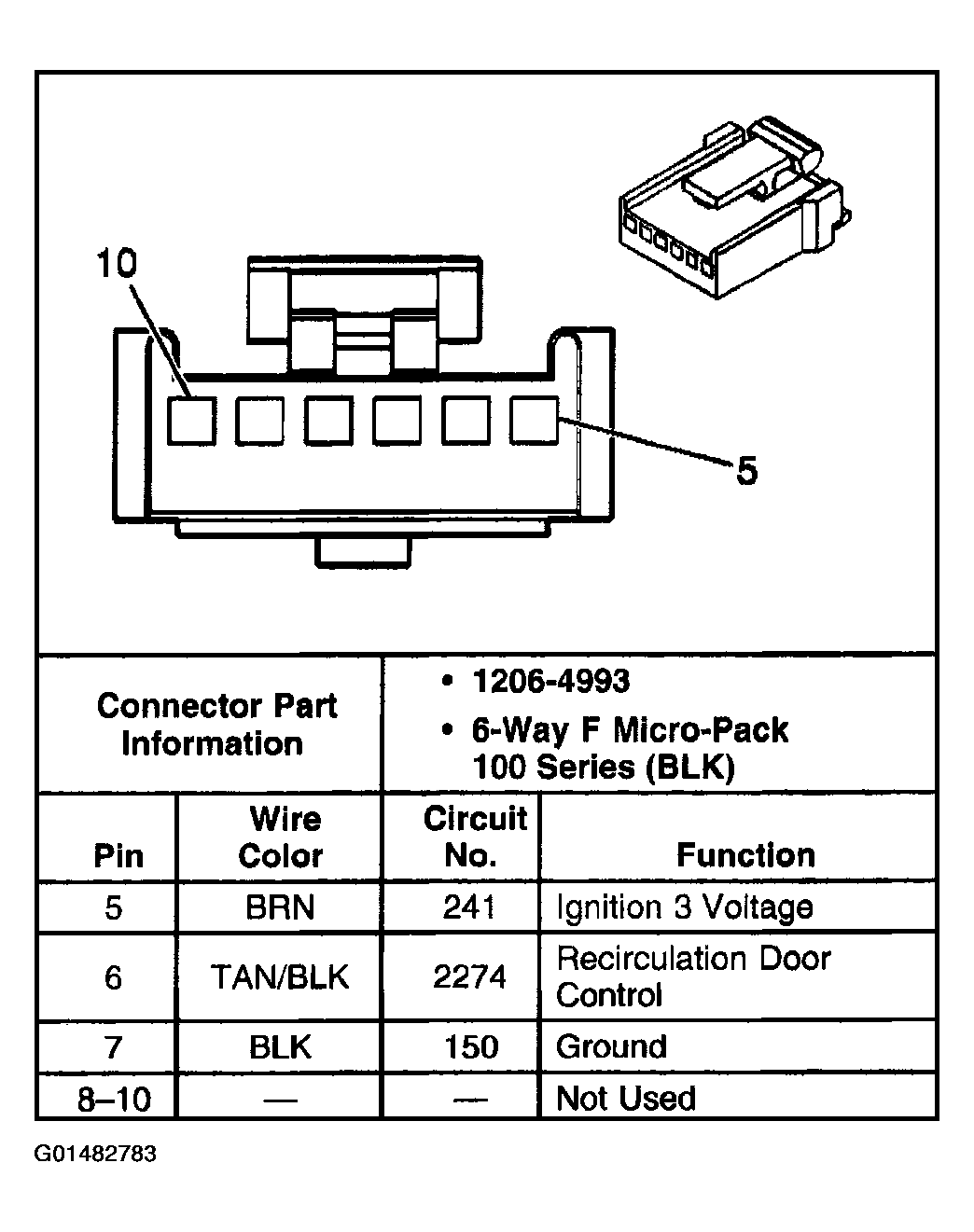

Fig 25: Recirculation Actuator Connector End View
G01482783Courtesy of GENERAL MOTORS CORP.
