HVAC Component Views

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

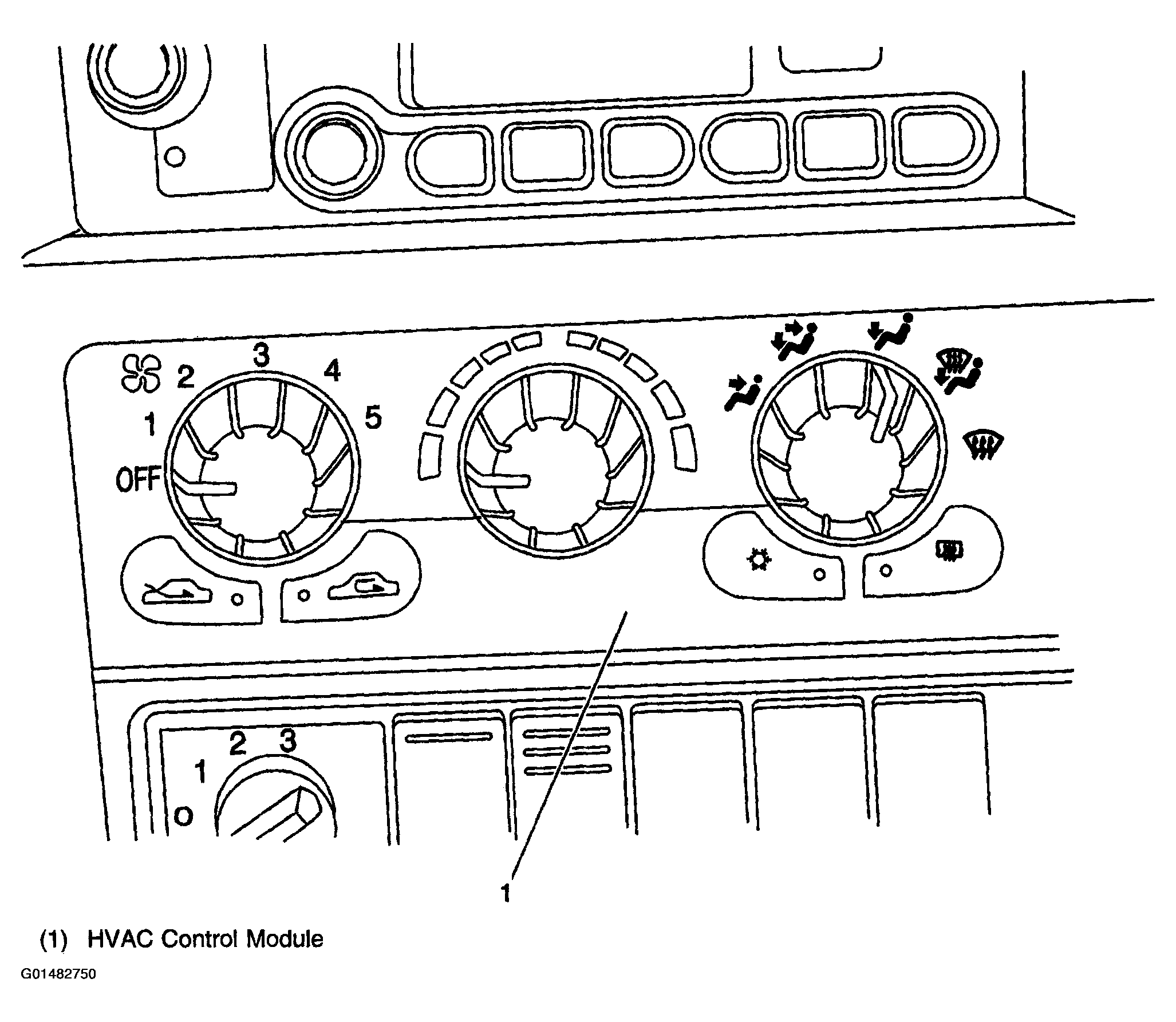

Fig 1: Center Of I/P, HVAC Control Module Component Views

Courtesy of GENERAL MOTORS CORP.

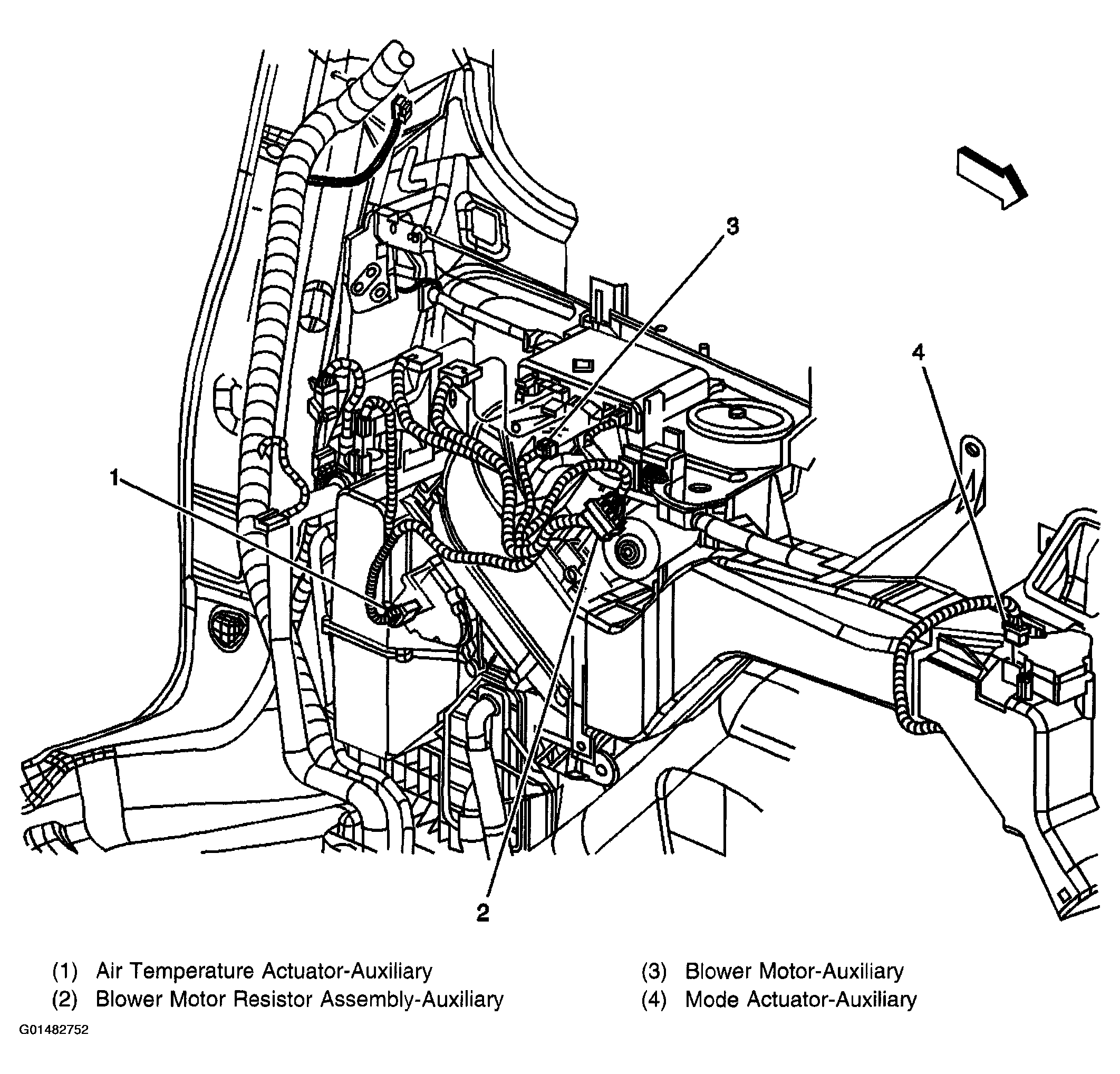

Fig 2: Left Rear Of Vehicle On Rear Of Wheelhouse Component Views

Courtesy of GENERAL MOTORS CORP.

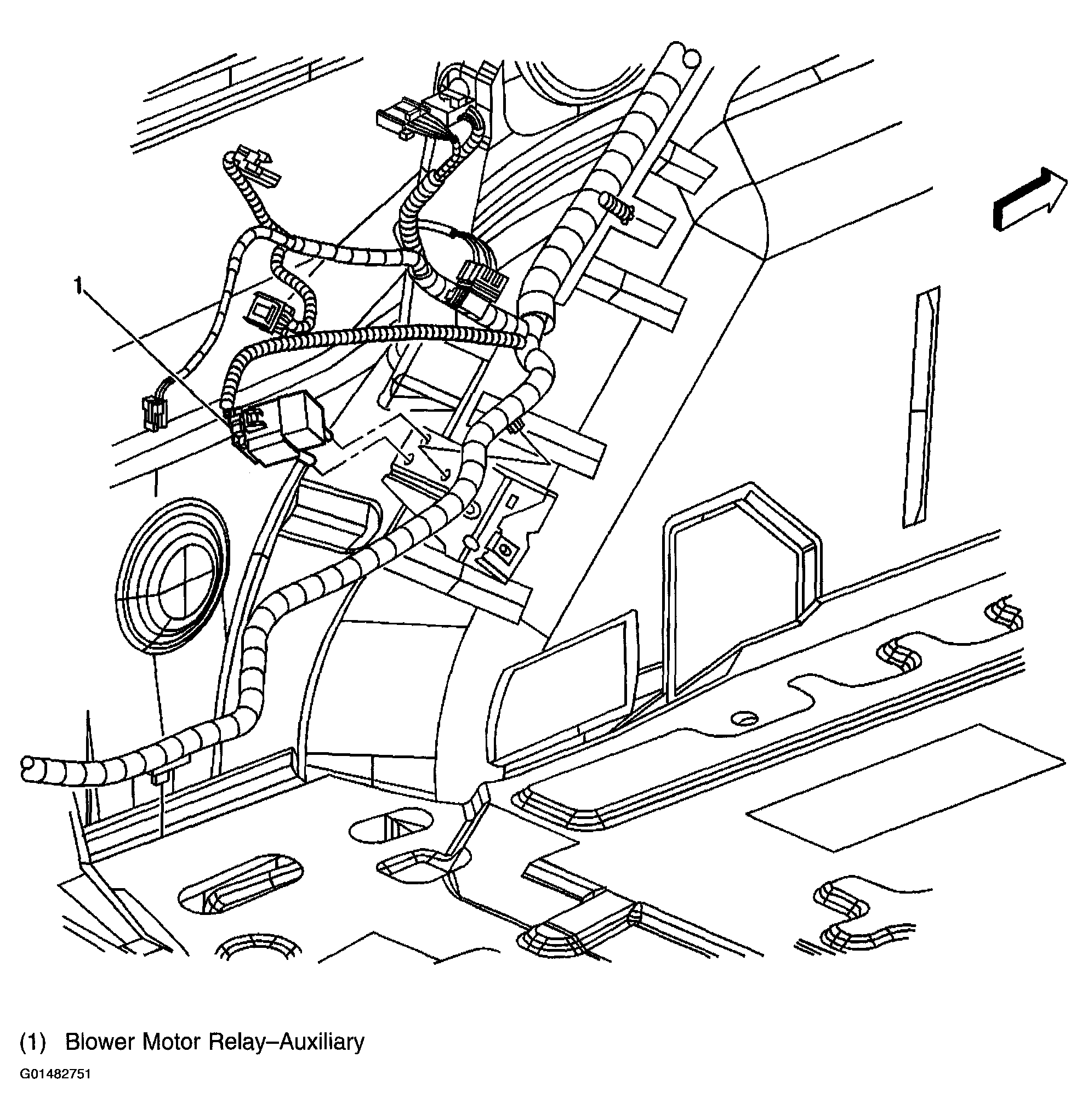

Fig 3: Left Rear of Vehicle on Rear of Wheelhouse Component Views

Courtesy of GENERAL MOTORS CORP.

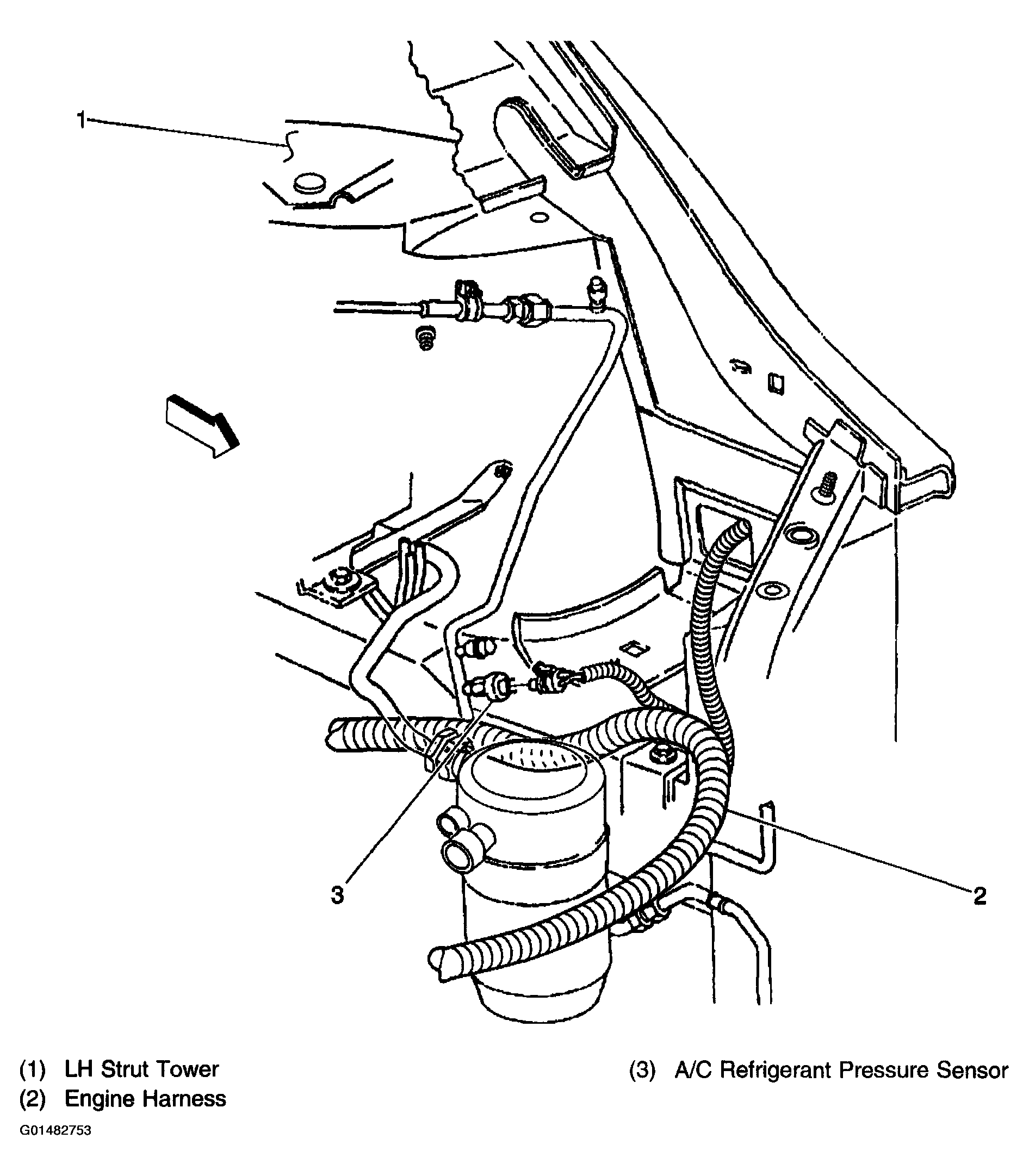

Fig 4: Front, LH Side of Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

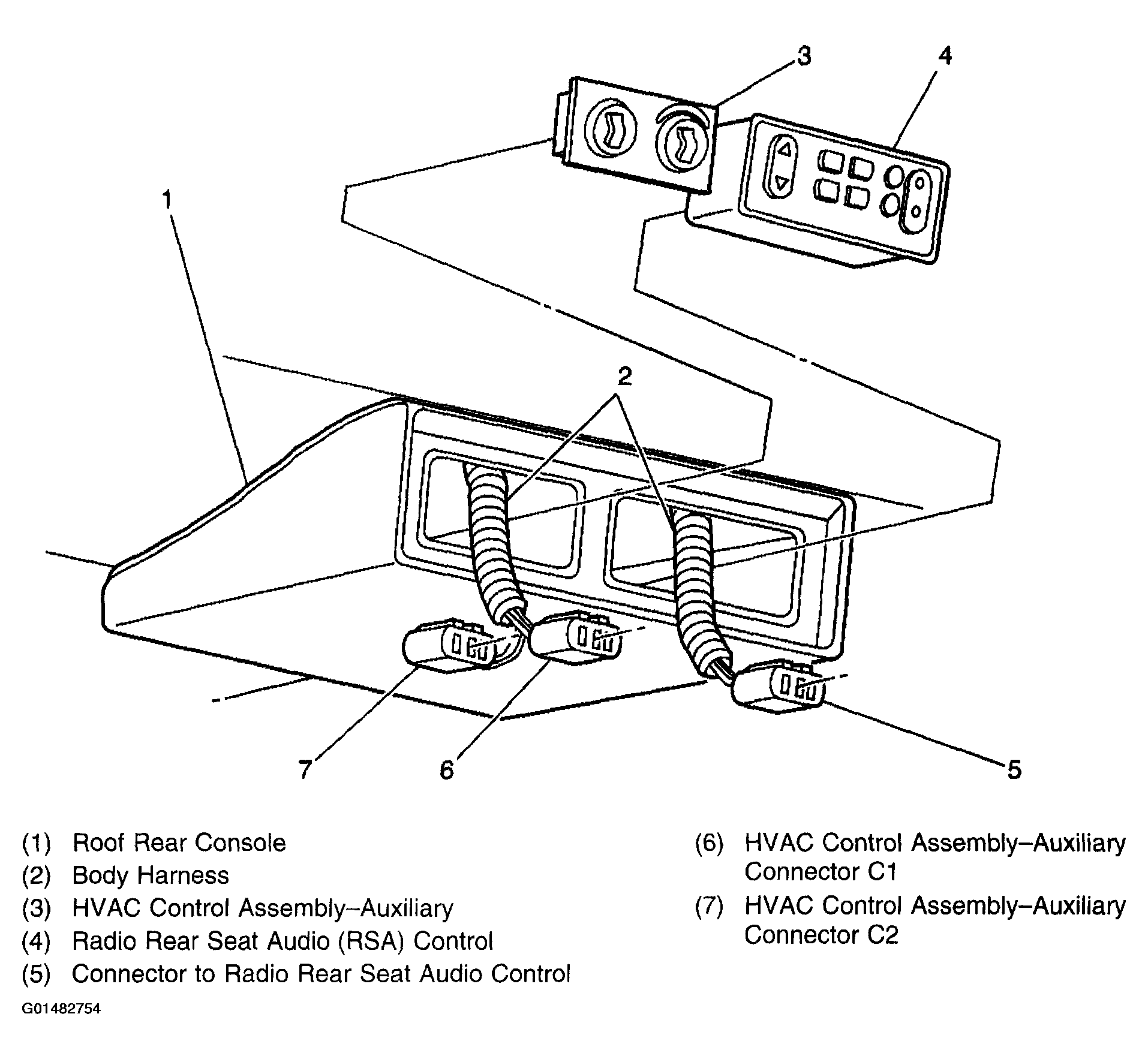

Fig 5: Roof Rear Console, Roof Headliner Behind Driver's Seat (5-Door) Component Views

Courtesy of GENERAL MOTORS CORP.

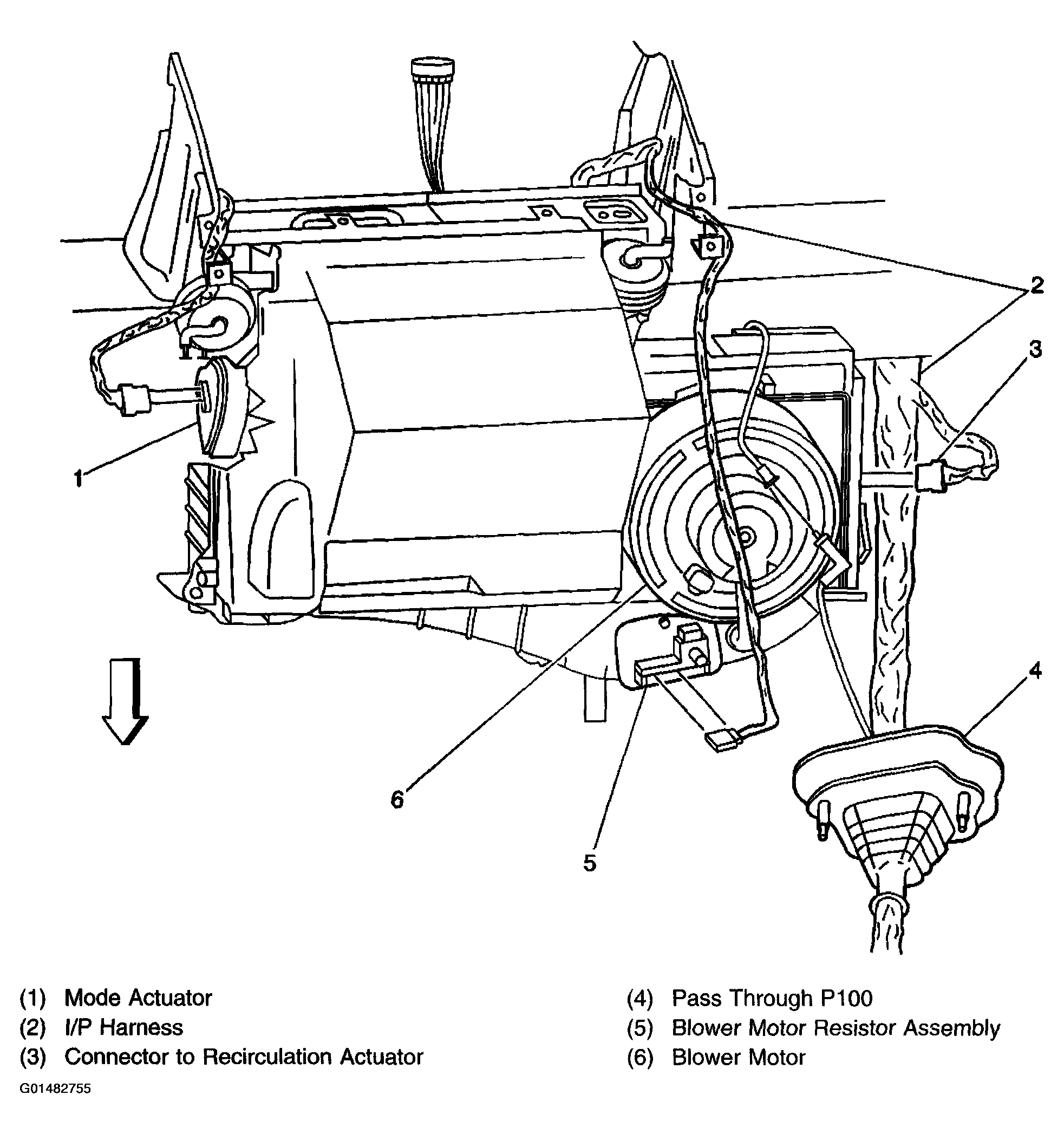

Fig 6: RH Side of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

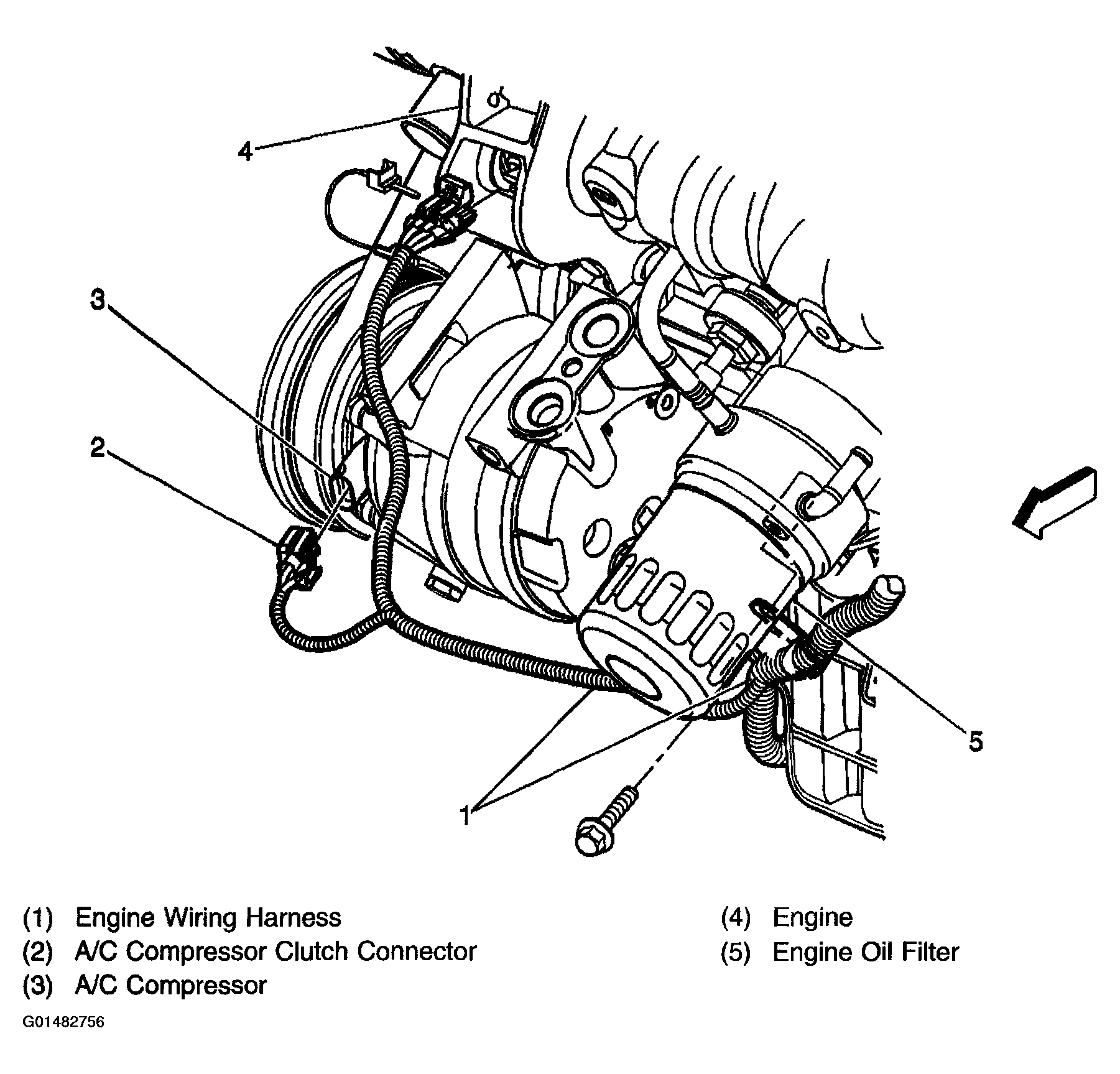

Fig 7: Lower Right Front of the Engine Component Views

Courtesy of GENERAL MOTORS CORP.

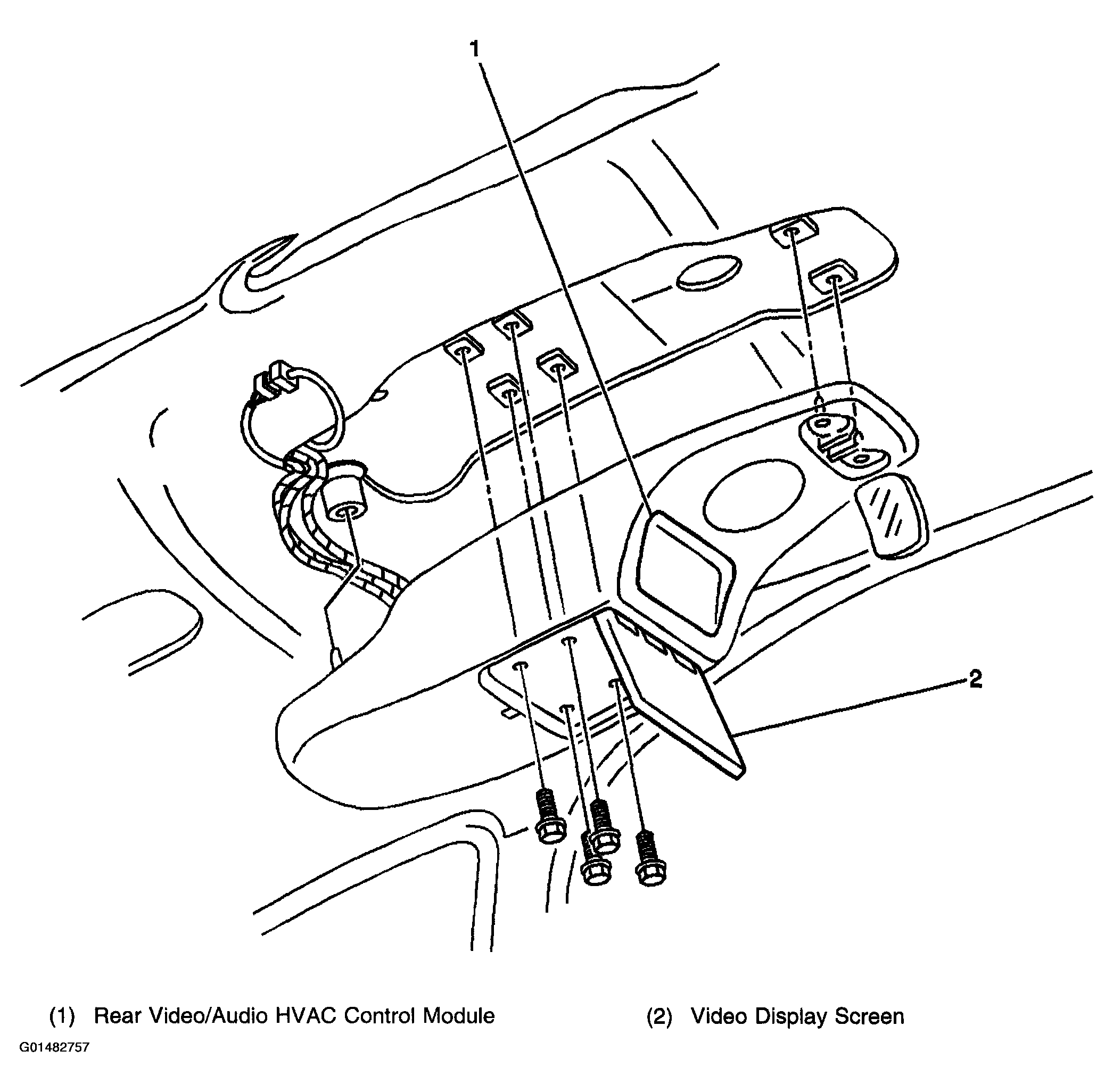

Fig 8: Roof Rear Overhead Console with Rear Entertainment System Component Views

Courtesy of GENERAL MOTORS CORP.

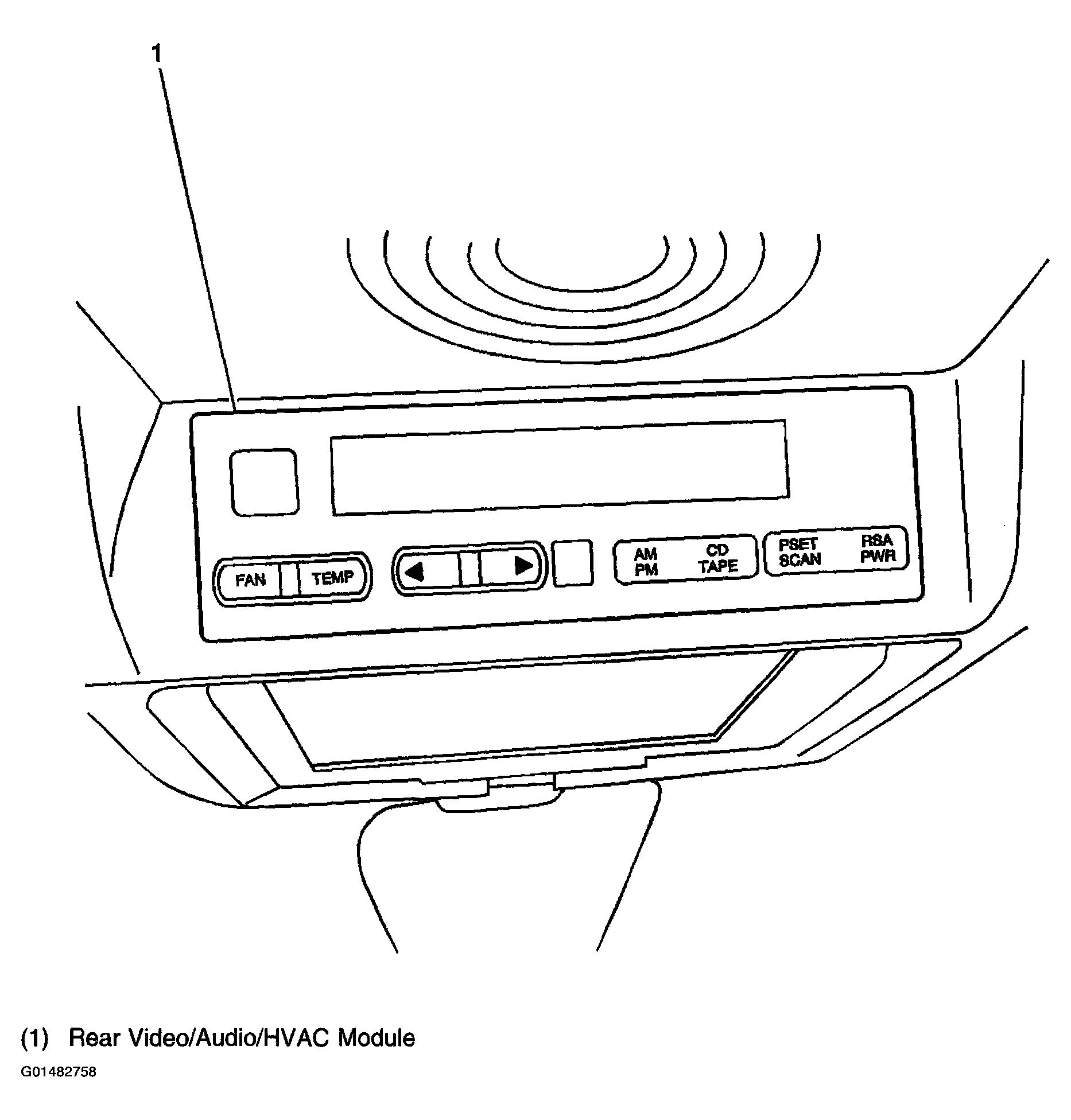

Fig 9: Overhead Console Controls w/ U32 Component Views

Courtesy of GENERAL MOTORS CORP.
