Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new sealing washer onto the compressor end of the suction hose. Refer to SEALING WASHER REPLACEMENT   .
  2. Install the suction hose.
  3. Position the engine mount strut bracket flush with the upper radiator support.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the right hand engine mount strut bracket brace bolts to the upper radiator support.

    Tighten

    Tighten the bolts to 28 N.m (21 lb ft).

  5. Tighten the right hand engine strut mount nuts, engine side.

    Tighten

    Tighten the bolt to 48 N.m (35 lb ft).

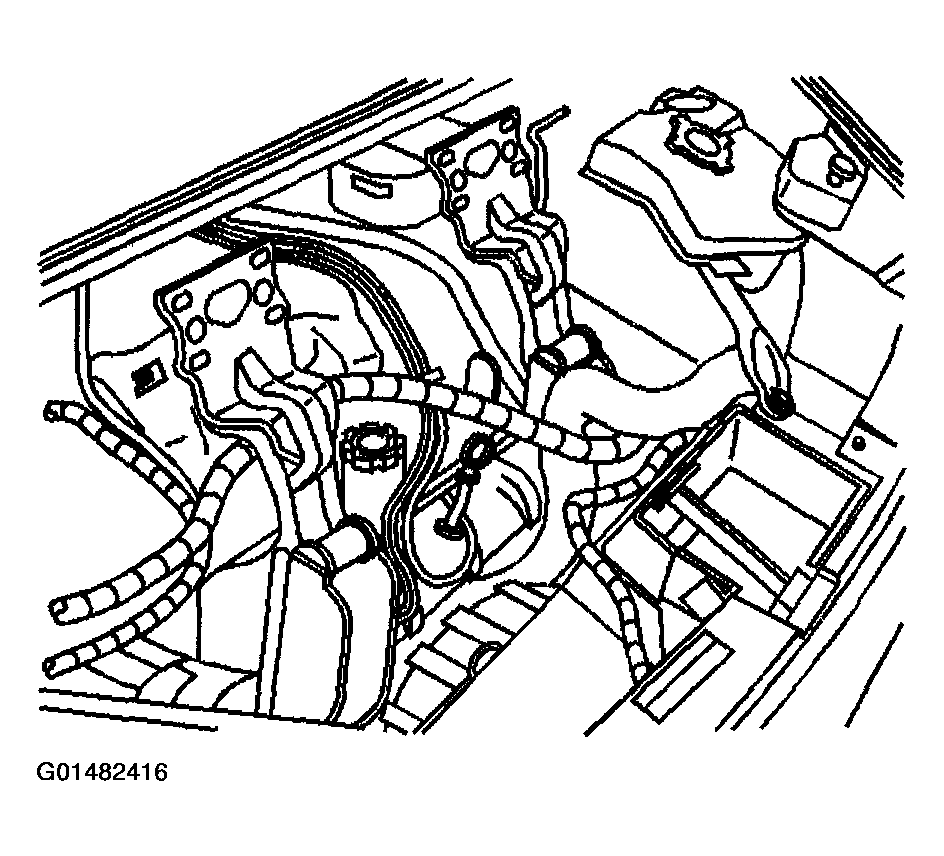

    Fig 1: Identifying Right Hand Engine Mount Strut Bracket Brace Bolts
    G01482416Courtesy of GENERAL MOTORS CORP.
  6. Raise the vehicle.
  7. Connect the compressor electrical connector.
  8. Connect the engine harness electrical connector.

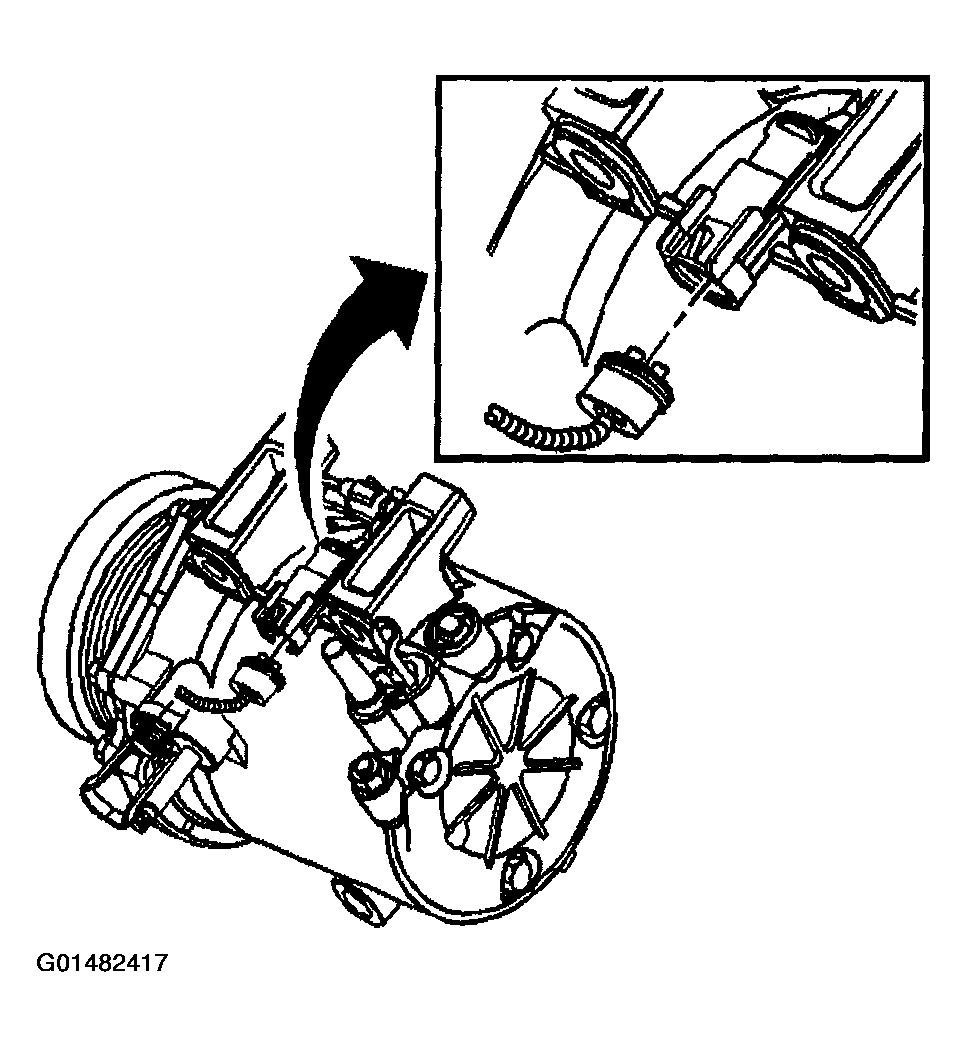

    Fig 2: Connecting Compressor Electrical Connector
    G01482417Courtesy of GENERAL MOTORS CORP.
  9. Remove the cap or tape form the compressor suction port.
  10. Connect the suction hose to the compressor.
  11. Install the suction hose to compressor nut.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

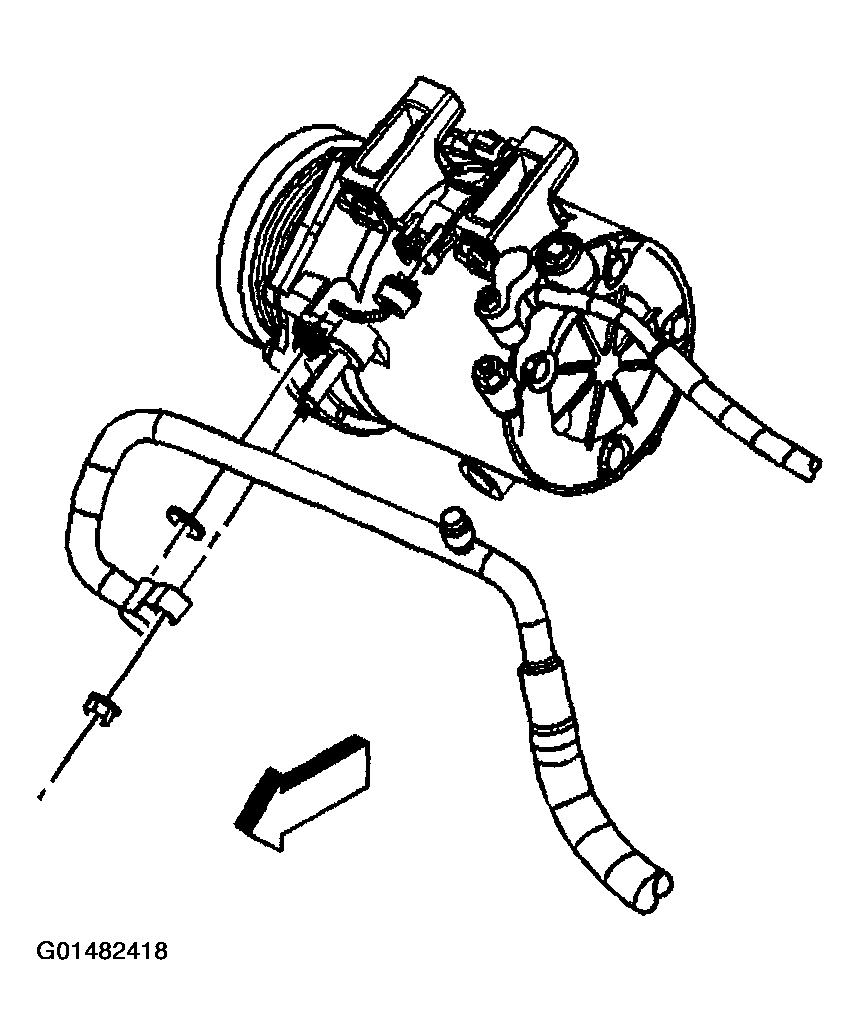

    Fig 3: Installing Suction Hose To Compressor Nut
    G01482418Courtesy of GENERAL MOTORS CORP.
  12. Remove the cap or tape from the evaporator outlet tube and the auxiliary evaporator outlet tube.
  13. Install a new sealing washer at the suction hose to evaporator outlet tube fitting. Refer to SEALING WASHER REPLACEMENT   .
  14. Install a new sealing washer at the suction hose to auxiliary evaporator outlet tube fitting. Refer to SEALING WASHER REPLACEMENT   .
  15. Connect the suction hose to the evaporator outlet tube and the auxiliary evaporator outlet fittings.
  16. Install the suction hose to evaporator outlet tube fitting bolt (1).

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  17. Install the auxiliary evaporator outlet tube to suction hose nut (2).

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

    Fig 4: Installing Suction Hose To Evaporator Outlet Tube Fitting Bolt
    G01482419Courtesy of GENERAL MOTORS CORP.
  18. Install the air baffle.
  19. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

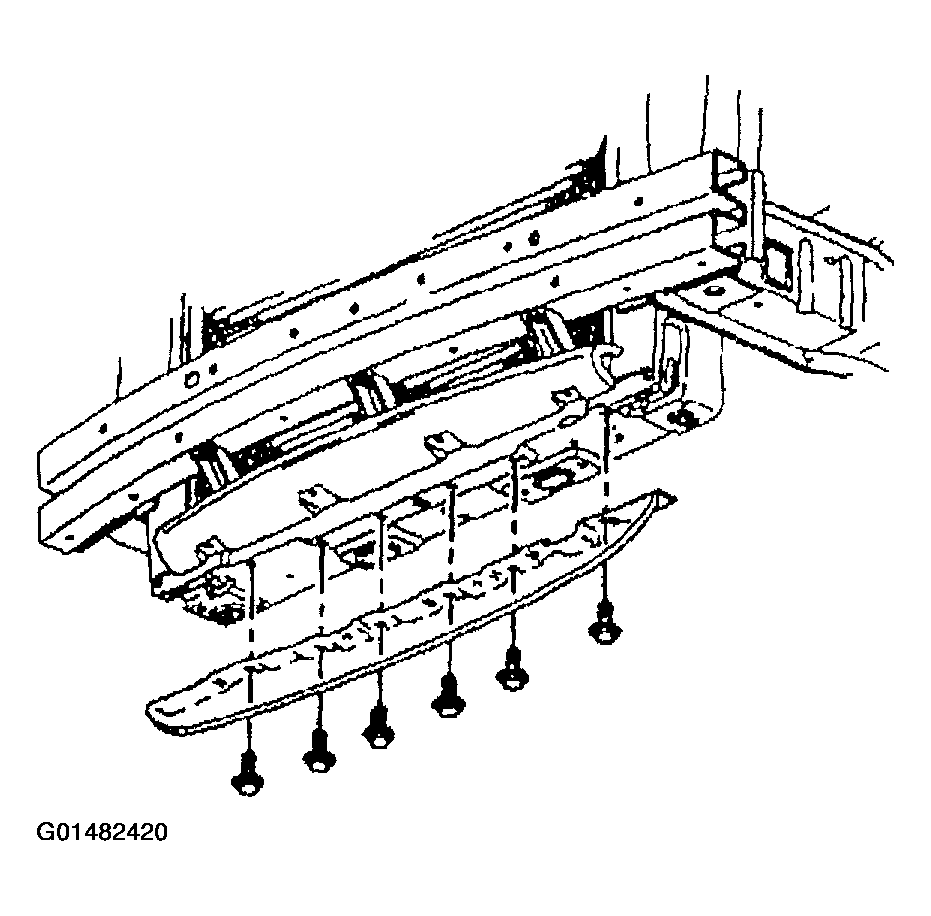

    Fig 5: Installing Air Baffle & Bolts
    G01482420Courtesy of GENERAL MOTORS CORP.
  20. Lower the vehicle.
  21. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  22. Leak test the fittings of the component using J 39400-A.
  23. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.
