Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Open the HVAC passenger compartment air filter access door.
  3. Remove the HVAC passenger compartment air filters.
  4. Disconnect the recirculation actuator electrical connector.
  5. Remove the top air inlet housing retaining screws.

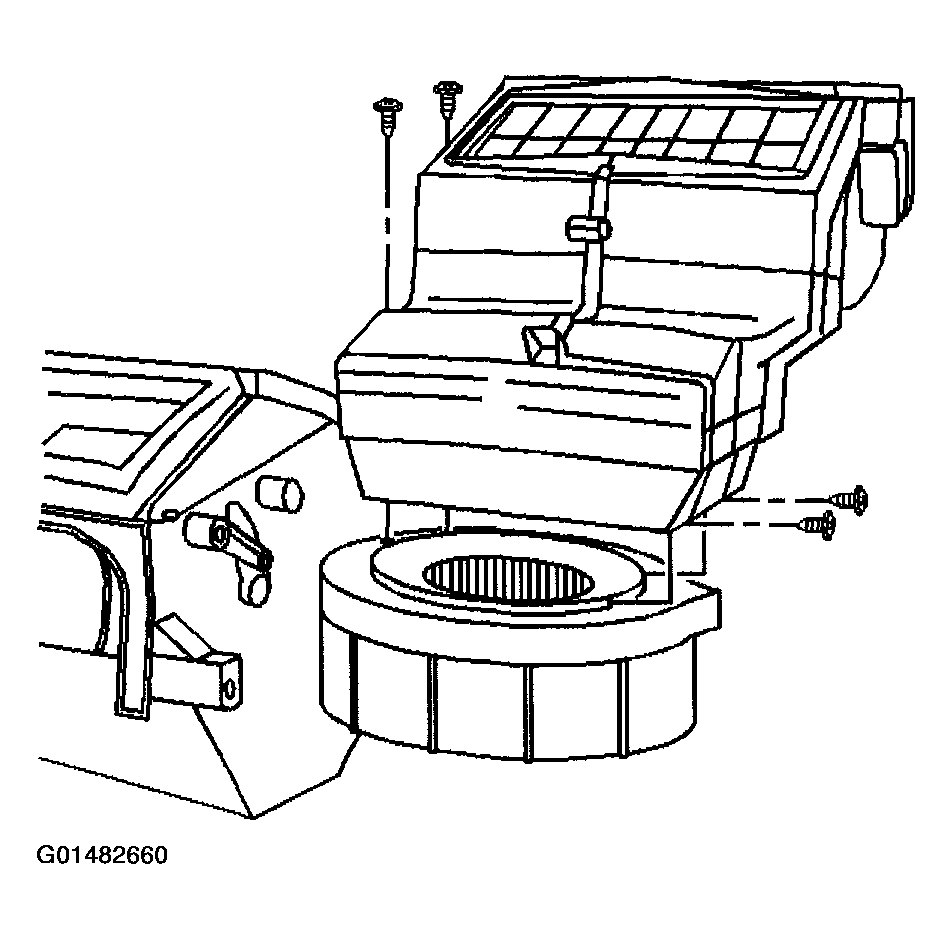

    Fig 1: Removing Top Air Inlet Housing Retaining & Screws
    G01482660Courtesy of GENERAL MOTORS CORP.
  6. Remove the side air inlet housing retaining screws.
  7. Remove the air inlet housing from the HVAC module assembly.
  8. Remove the screws retaining the air inlet housing halves.

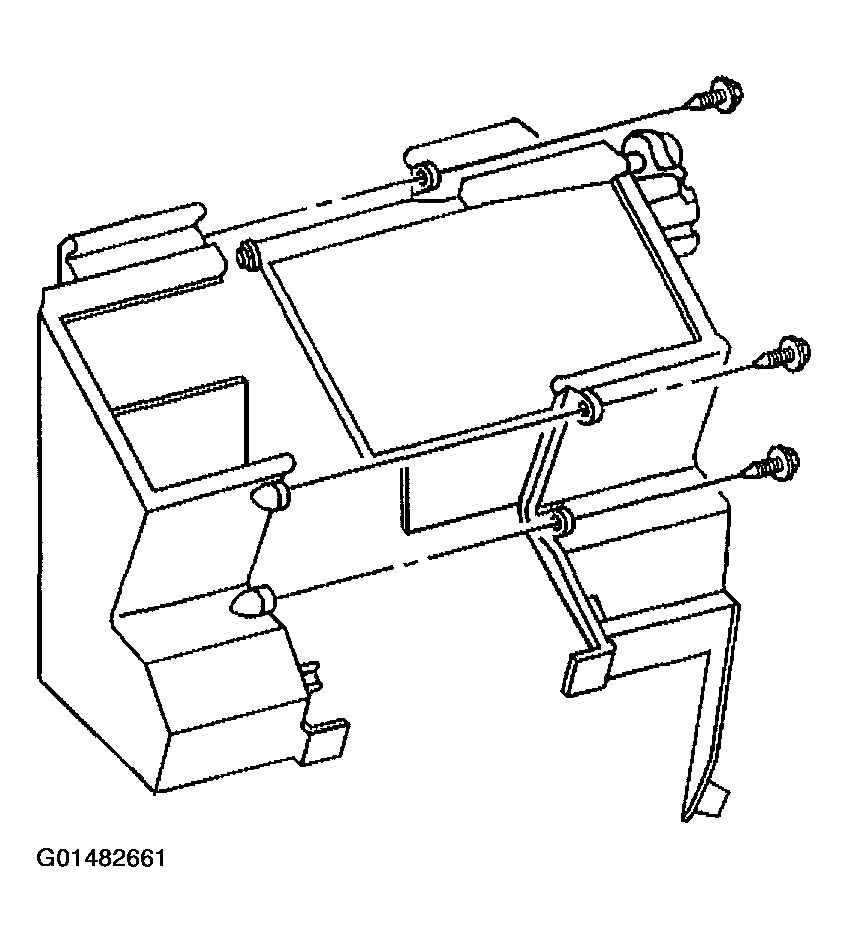

    Fig 2: Removing Screws Retaining Air Inlet Housing Halves
    G01482661Courtesy of GENERAL MOTORS CORP.
  9. Separate the air inlet housing halves.
  10. Remove the recirculation door from the air inlet housing.

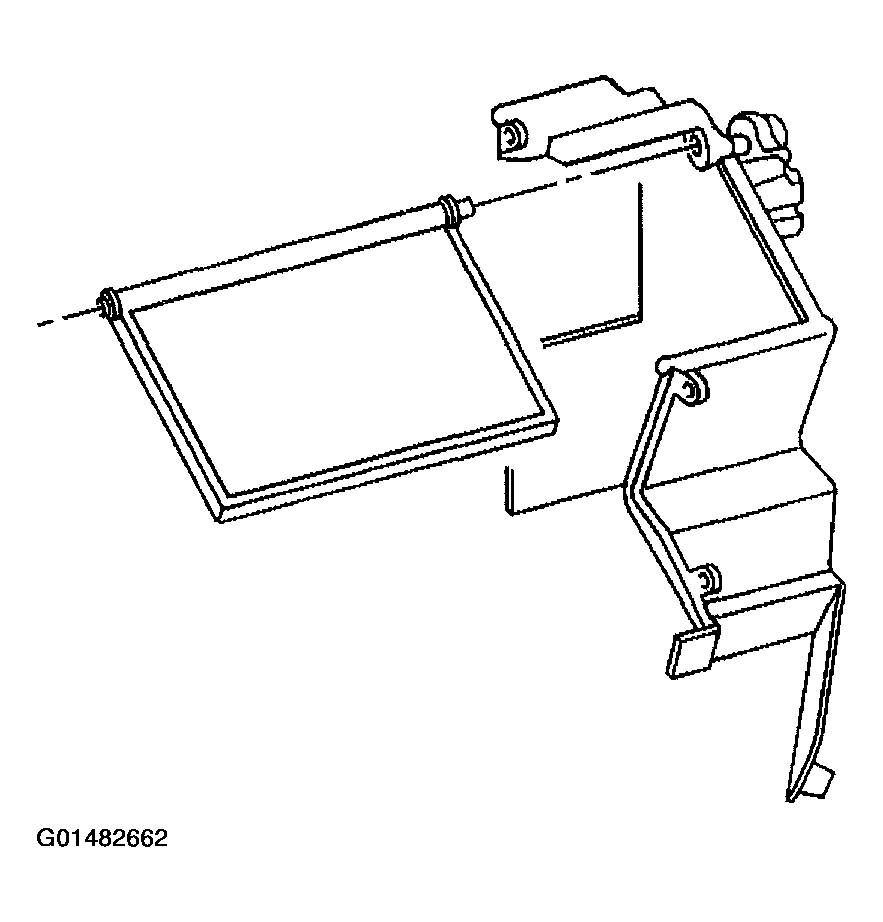

    Fig 3: Removing Recirculation Door From Air Inlet Housing
    G01482662Courtesy of GENERAL MOTORS CORP.
