Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the recirculation door to the air inlet housing.

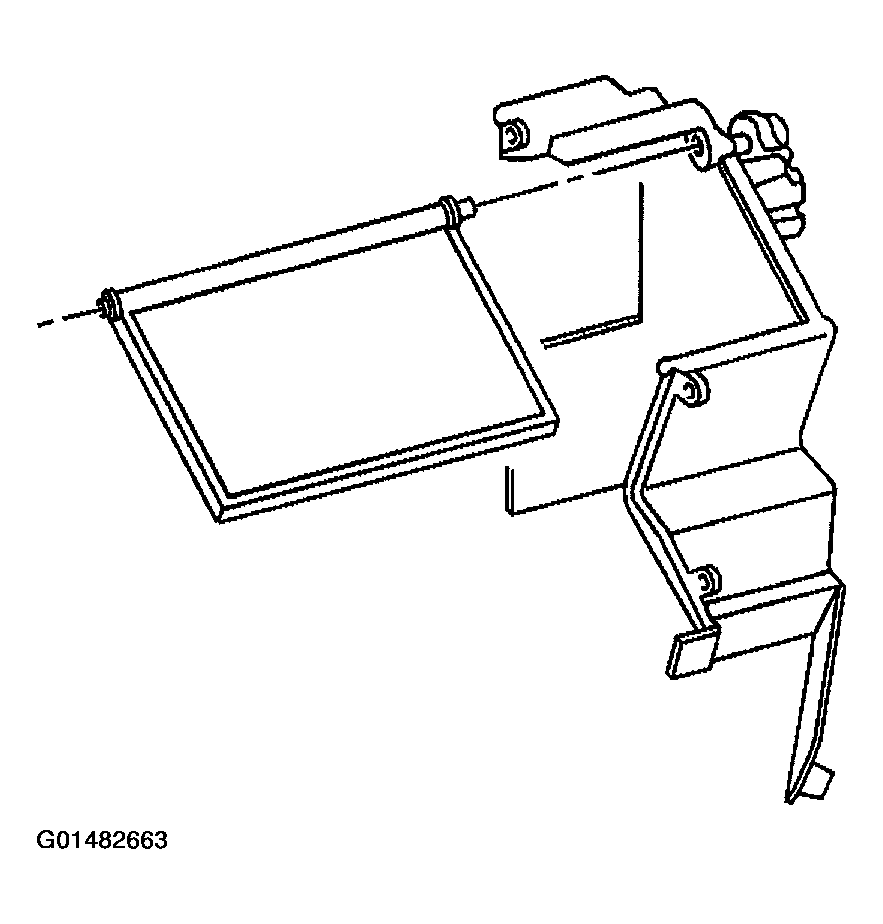

    Fig 1: Installing Recirculation Door To Air Inlet Housing
    G01482663Courtesy of GENERAL MOTORS CORP.
  2. Align the recirculation door with the other half of the air inlet housing.
  3. Connect the air inlet housing halves.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the screws retaining the air inlet housing halves.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

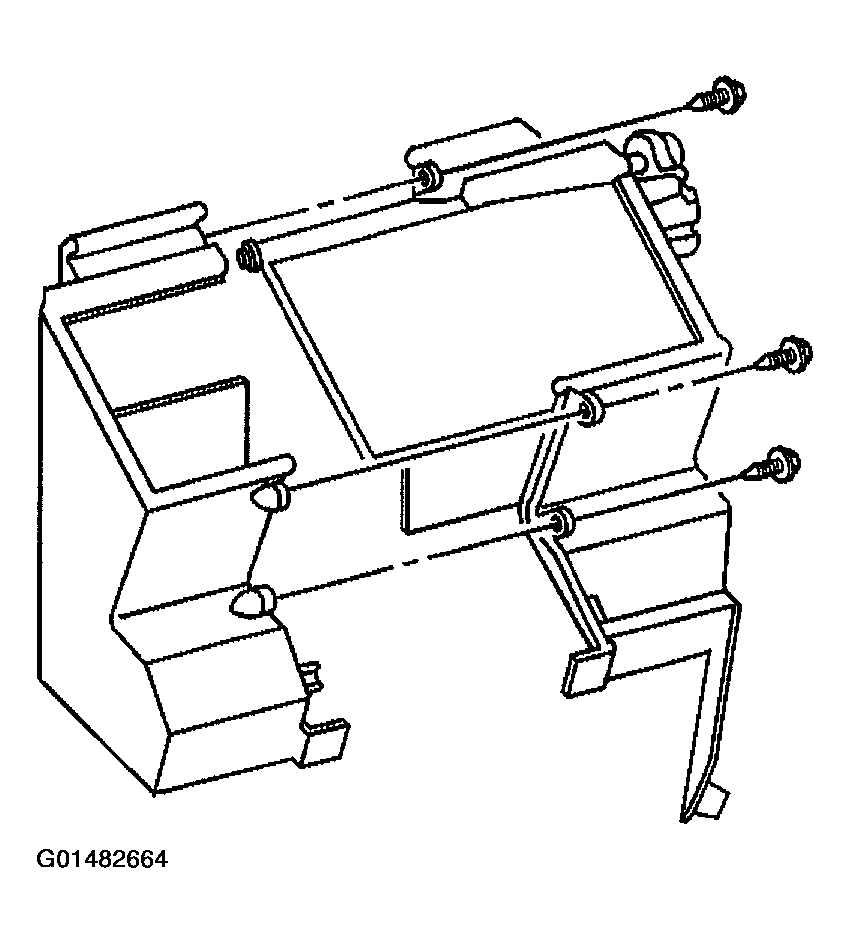

    Fig 2: Installing Screws Retaining Air Inlet Housing Halves
    G01482664Courtesy of GENERAL MOTORS CORP.
  5. Install the air inlet housing to the HVAC module assembly.

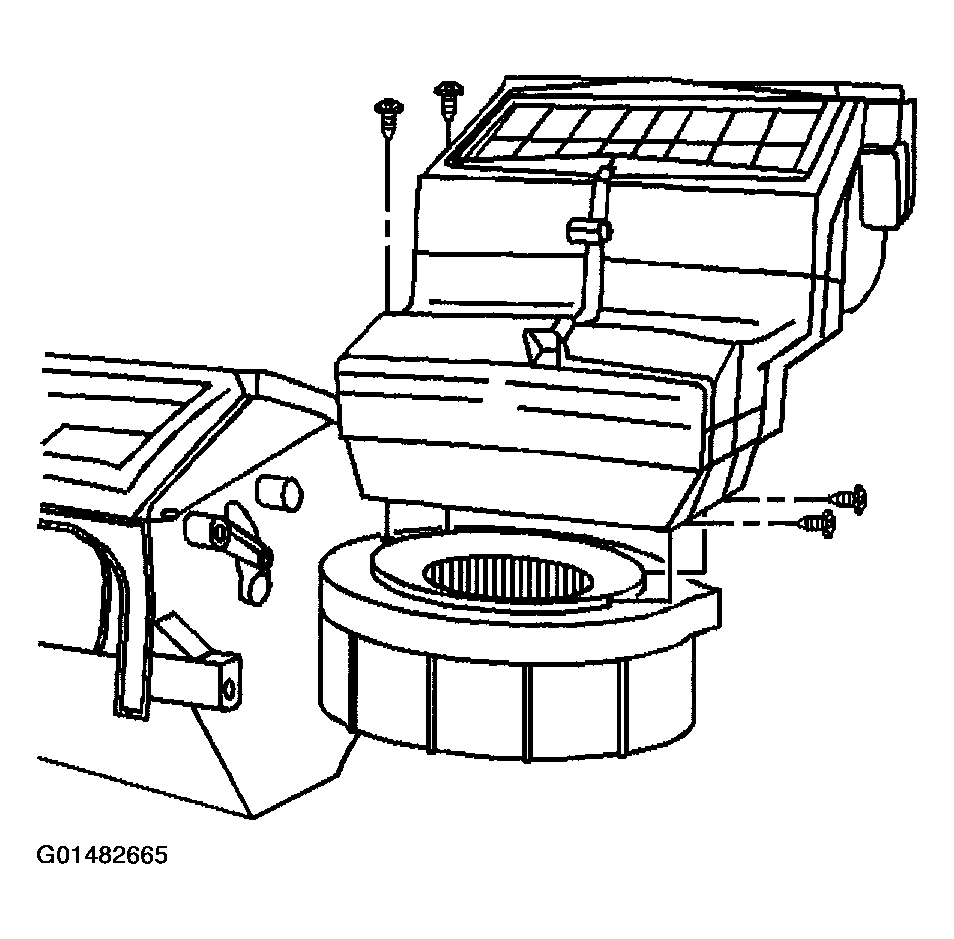

    Fig 3: Installing Air Inlet Housing To HVAC Module Assembly
    G01482665Courtesy of GENERAL MOTORS CORP.
  6. Install the air inlet housing screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

  7. Connect the recirculation actuator electrical connector.
  8. Install the HVAC passenger compartment air filters.
  9. Close the HVAC passenger compartment air filter access door.
  10. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
