Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater core cover. Refer to HEATER CORE COVER REPLACEMENT   .
  2. Disconnect and remove the right hand mode door lever from the mode door.

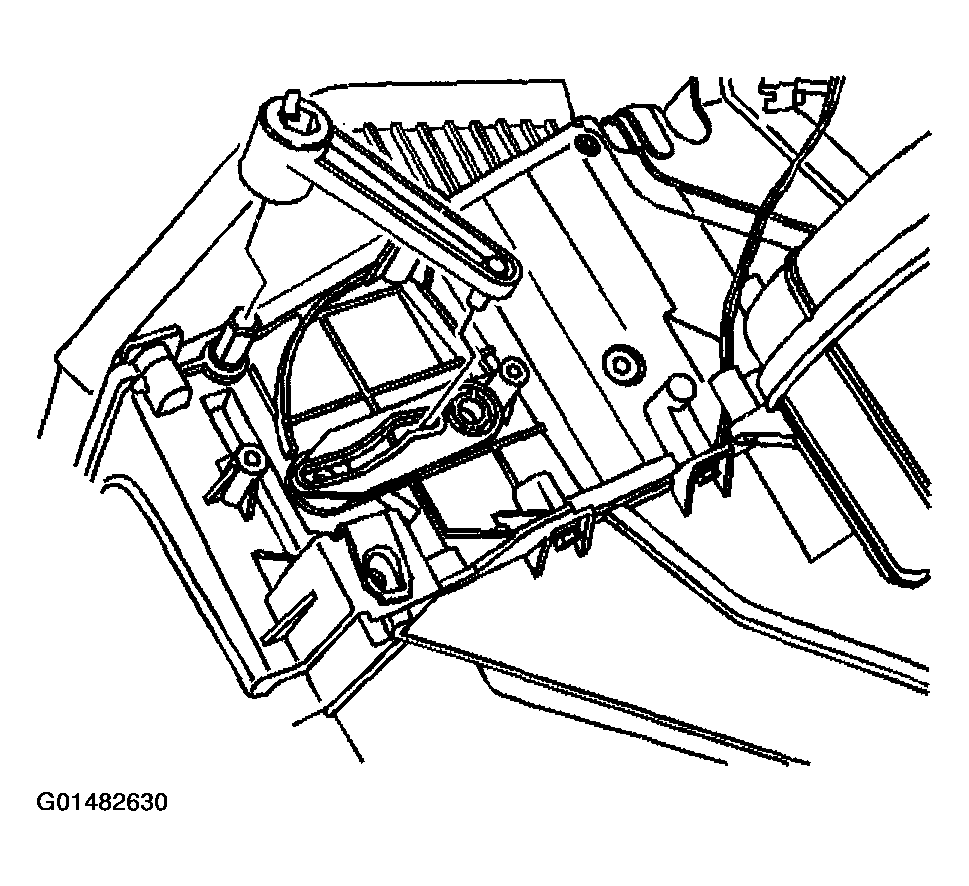

    Fig 1: Removing Right Hand Mode Door Lever From Mode Door
    G01482630Courtesy of GENERAL MOTORS CORP.
  3. Disconnect and remove the secondary mode door lever from the secondary mode door.

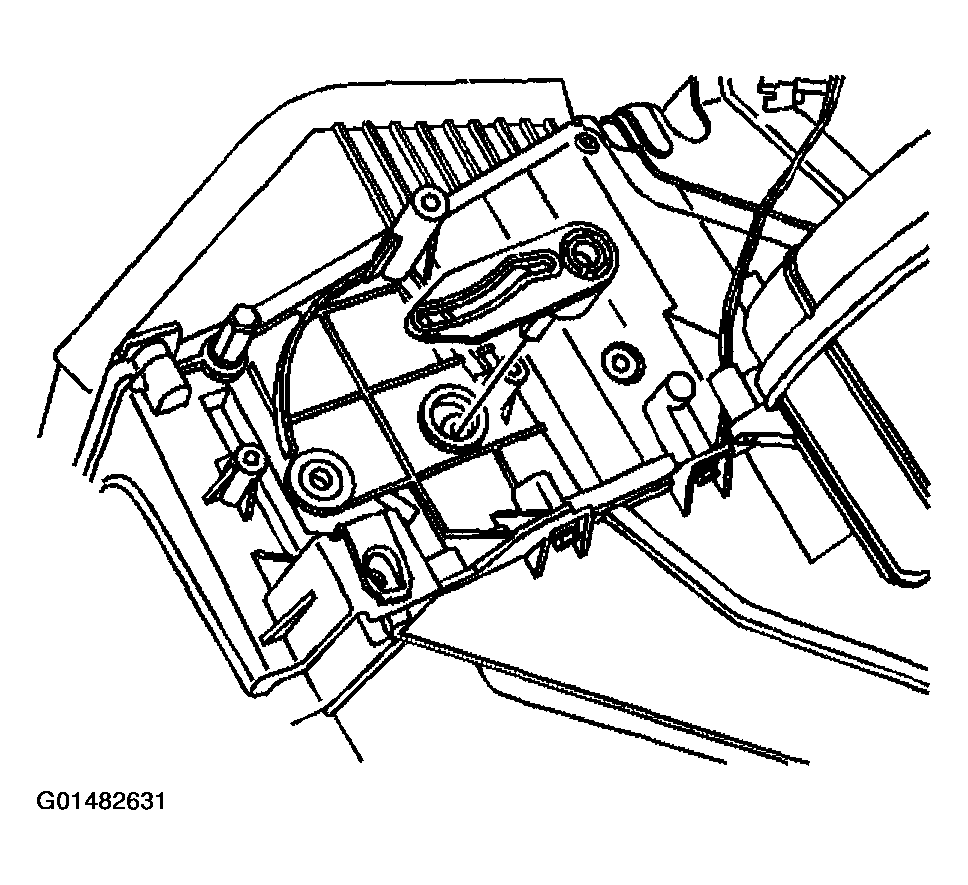

    Fig 2: Removing Secondary Mode Door Lever From Secondary Mode Door
    G01482631Courtesy of GENERAL MOTORS CORP.
  4. Remove the secondary mode door from the HVAC module.

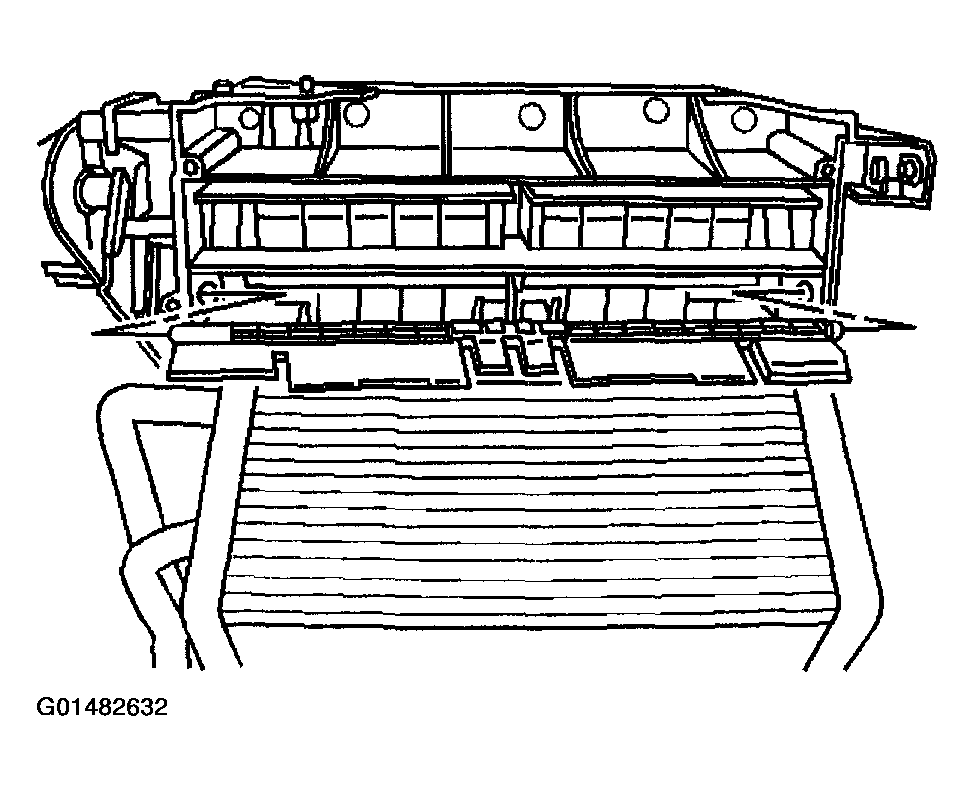

    Fig 3: Removing Secondary Mode Door From HVAC Module
    G01482632Courtesy of GENERAL MOTORS CORP.
