Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the secondary mode door.

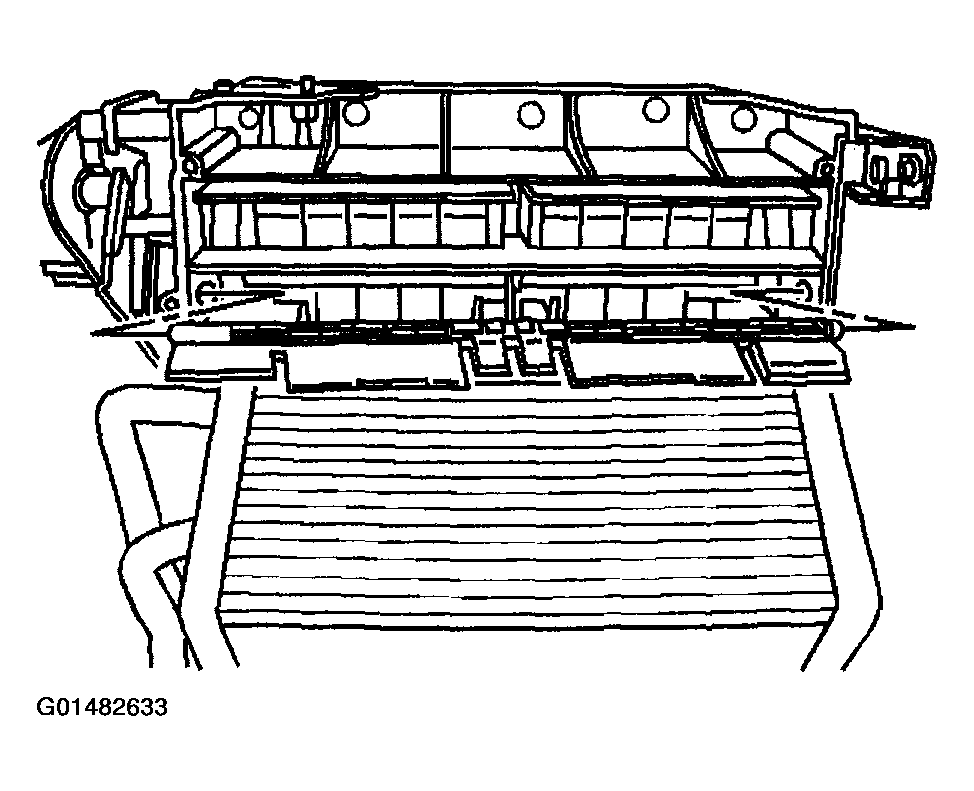

    Fig 1: Installing Secondary Mode Door
    G01482633Courtesy of GENERAL MOTORS CORP.
  2. Connect the secondary mode door lever to the secondary mode door.

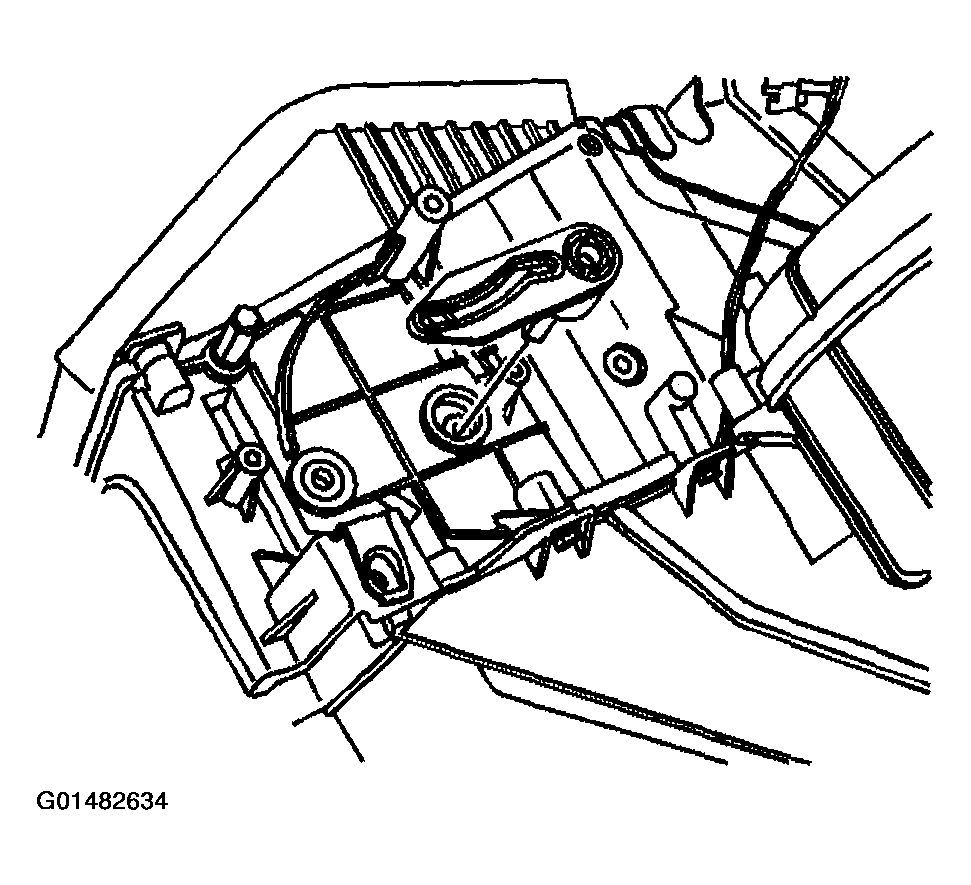

    Fig 2: Connecting Secondary Mode Door Lever To Secondary Mode Door
    G01482634Courtesy of GENERAL MOTORS CORP.

    Important:  Align the pin on the right hand mode door lever with the slot on the secondary mode door lever.

  3. Connect the right hand mode door lever to the mode door.

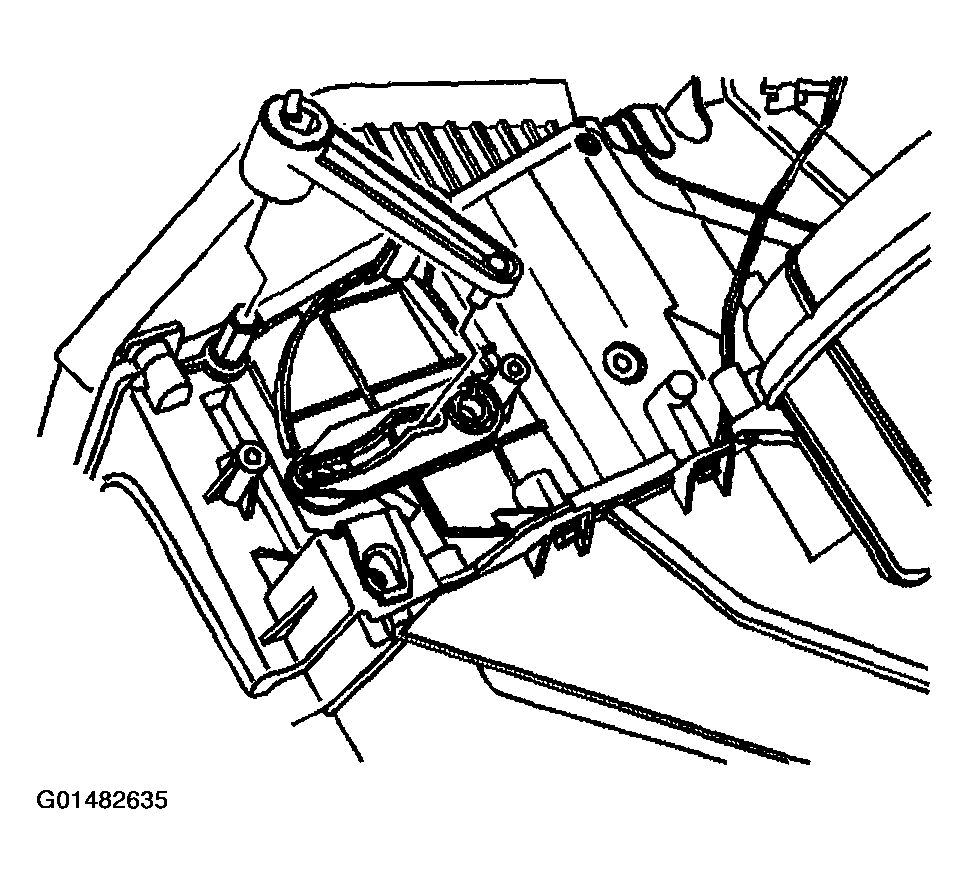

    Fig 3: Connecting Right Hand Mode Door Lever To Mode Door
    G01482635Courtesy of GENERAL MOTORS CORP.
  4. Install the heater core cover. Refer to HEATER CORE COVER REPLACEMENT   .
