Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater core cover. Refer to HEATER CORE COVER REPLACEMENT   .
  2. Remove the right hand air temperature actuator. Refer to HVAC SYSTEMS - MANUAL  .
  3. Remove the right hand air temperature mounting bracket screws.
  4. Remove the right hand air temperature mounting bracket.

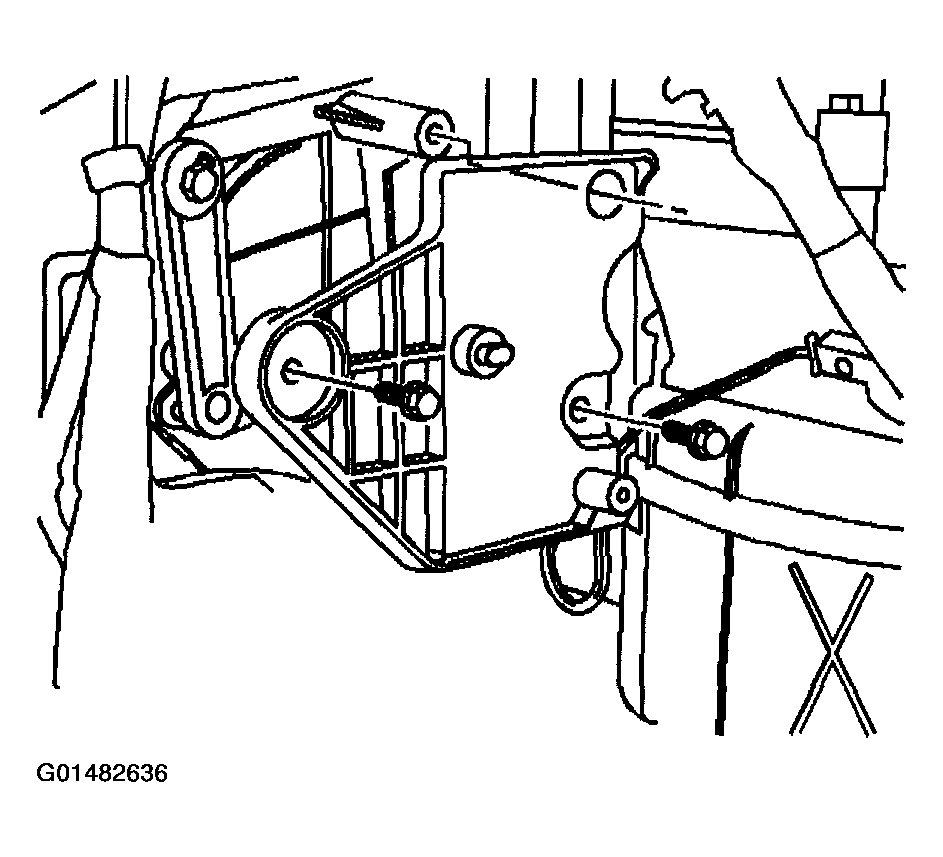

    Fig 1: Removing Right Hand Air Temperature Mounting Bracket & Screws
    G01482636Courtesy of GENERAL MOTORS CORP.
  5. Disconnect and remove the right hand mode door lever from the mode door.

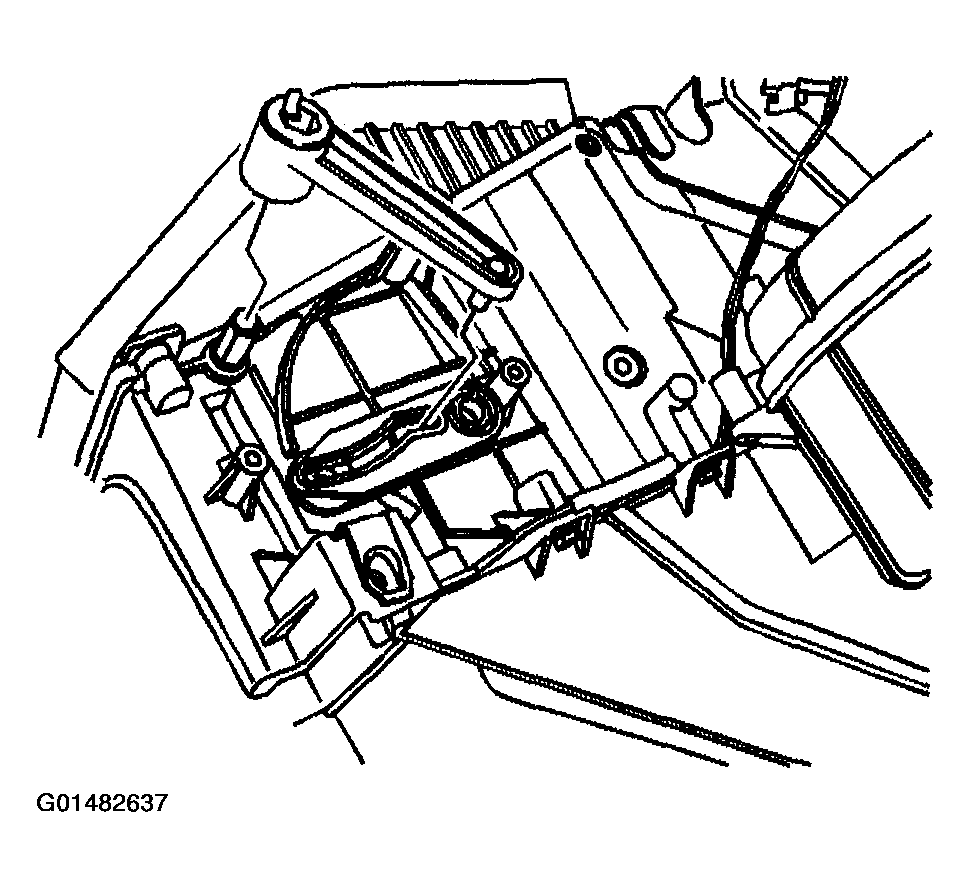

    Fig 2: Removing Right Hand Mode Door Lever From Mode Door
    G01482637Courtesy of GENERAL MOTORS CORP.
  6. Disconnect and remove the secondary mode door lever from the secondary mode door.

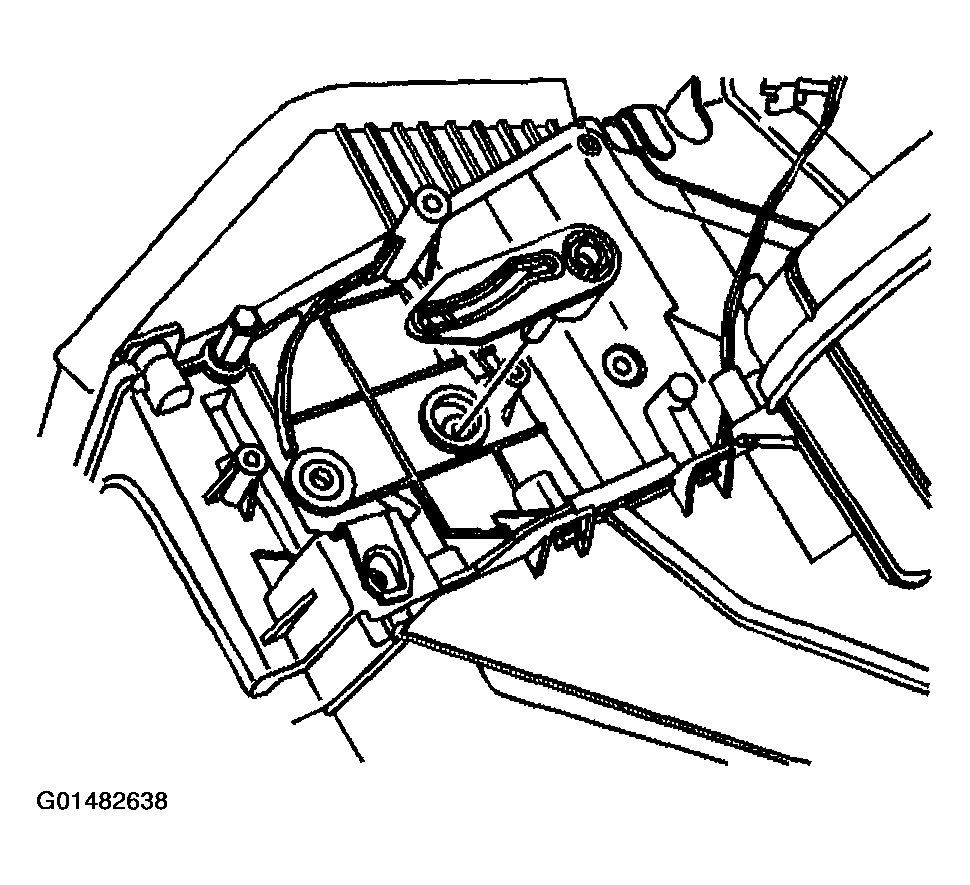

    Fig 3: Removing Secondary Mode Door Lever From Secondary Mode Door
    G01482638Courtesy of GENERAL MOTORS CORP.
  7. Remove the secondary mode door from the HVAC module.

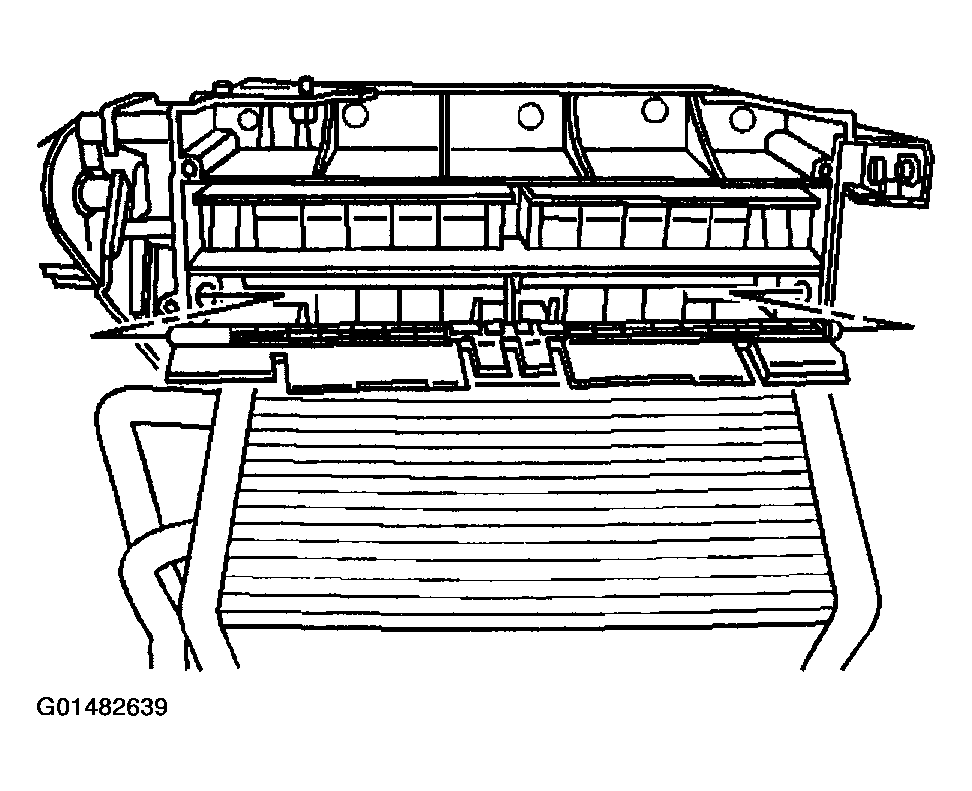

    Fig 4: Removing Secondary Mode Door From HVAC Module
    G01482639Courtesy of GENERAL MOTORS CORP.
