Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the outlet heater hose.
  2. Connect the outlet heater hose to the heater core.
  3. Position the heater hose clamp using the J 38185.

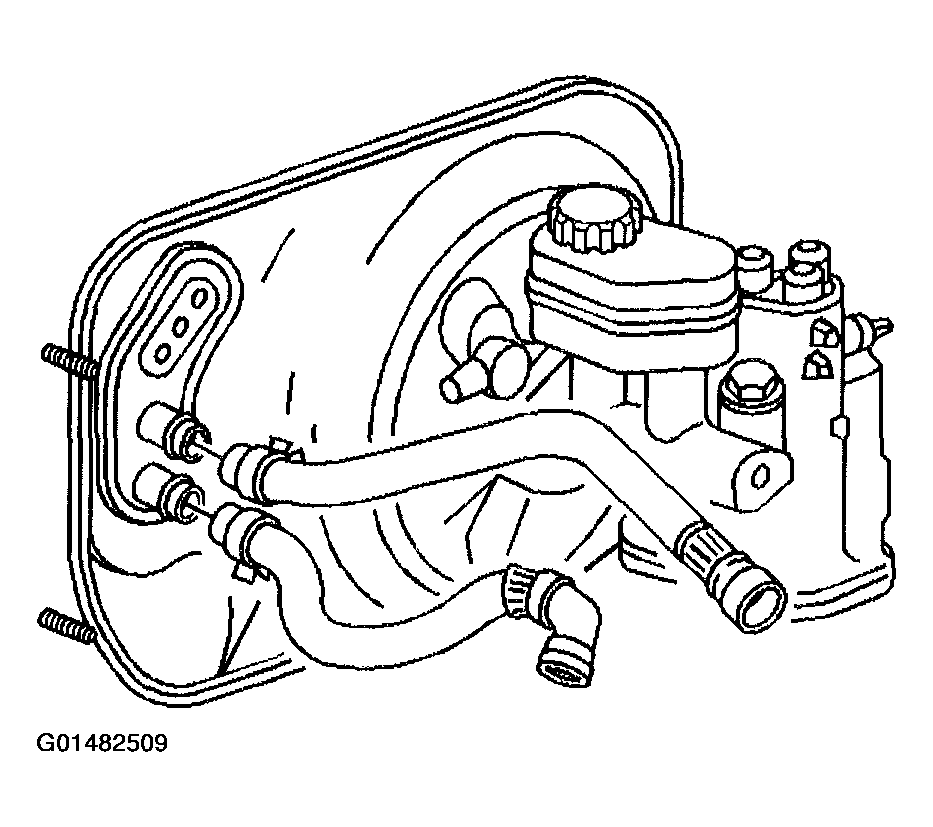

    Fig 1: Installing Outlet Heater Hose
    G01482509Courtesy of GENERAL MOTORS CORP.
  4. Connect the outlet heater hose (3) to the outlet pipe (4).

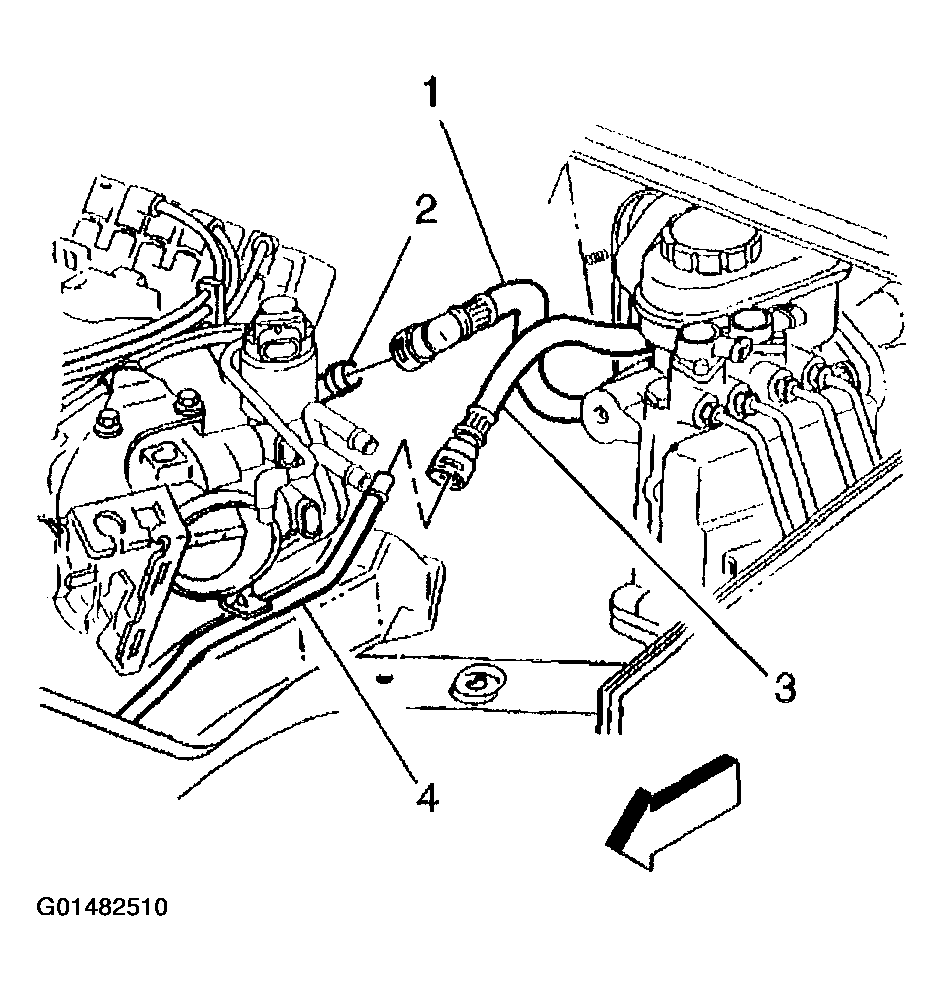

    Fig 2: Connecting Outlet Heater Hose To Outlet Pipe
    G01482510Courtesy of GENERAL MOTORS CORP.
  5. Install the transmission fluid filler tube. Refer to FILLER TUBE AND SEAL REPLACEMENT  in Automatic Transaxle - 4T65-E.
  6. Connect the throttle and cruise control cables to the TBI mounting bracket.
  7. Install the air cleaner cover and intake tube. Refer to AIR CLEANER INTAKE DUCT in Removal & Installation.
  8. Connect the vacuum hose to the brake booster.
  9. Install the left wiper arm linkage.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  10. Install the left wiper arm linkage nuts.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

  11. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
