Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the auxiliary HVAC module. Refer to HVAC MODULE REPLACEMENT - AUXILIARY   .
  2. Remove the auxiliary heater pipe clamp screw.

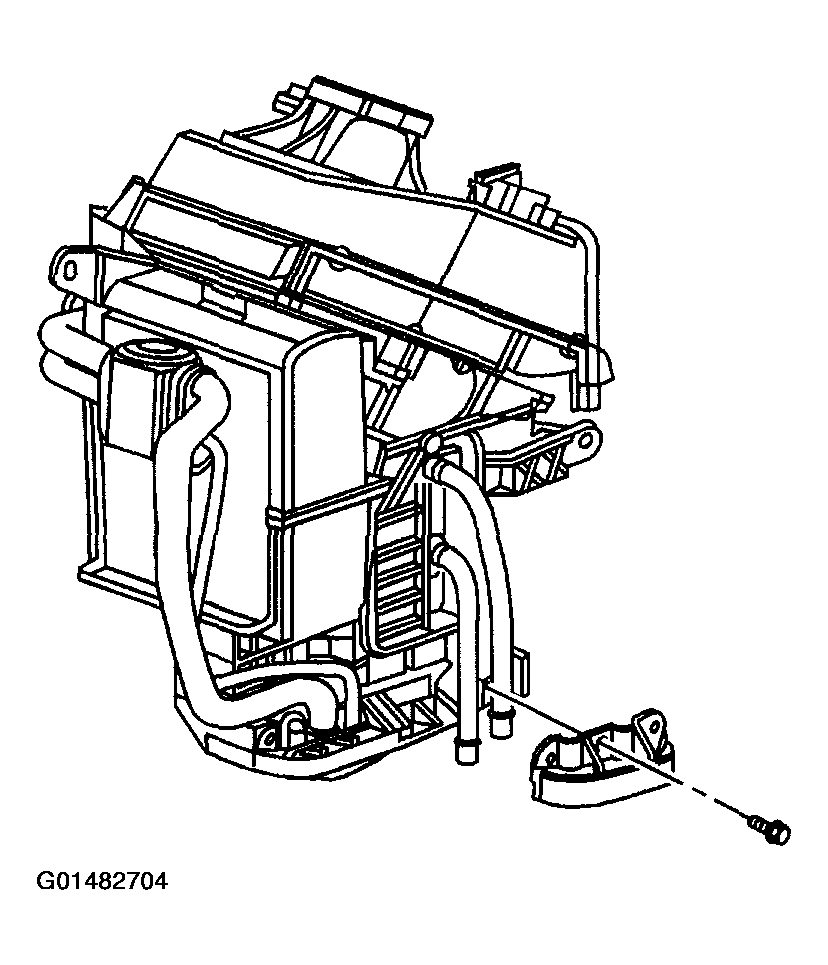

    Fig 1: Removing Auxiliary Heater Pipe Clamp & Screw
    G01482704Courtesy of GENERAL MOTORS CORP.
  3. Remove the auxiliary heater core mounting screws.
  4. Remove the auxiliary heater core from the HVAC module assembly.
    Fig 2: Removing Auxiliary Heater Core Mounting & Screws
    G01482705Courtesy of GENERAL MOTORS CORP.
  5. Remove the pipe seal from the auxiliary heater core.

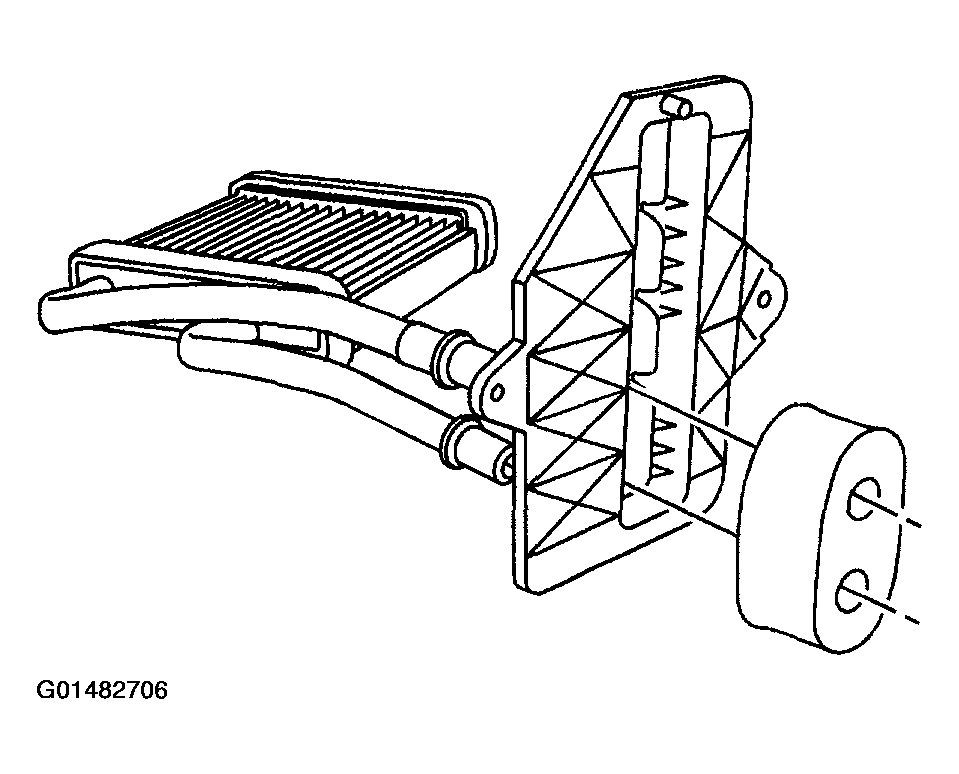

    Fig 3: Removing Pipe Seal From Auxiliary Heater Core
    G01482706Courtesy of GENERAL MOTORS CORP.
  6. Remove the heater core mounting bracket from the auxiliary heater core.
