Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor air outlet duct. Refer to AIR OUTLET REPLACEMENT - FLOOR   .
  2. If equipped, disconnect the DVD wiring harness from the I/P support bracket.
  3. Remove the screws retaining the heater core cover.
  4. Remove the heater core cover.

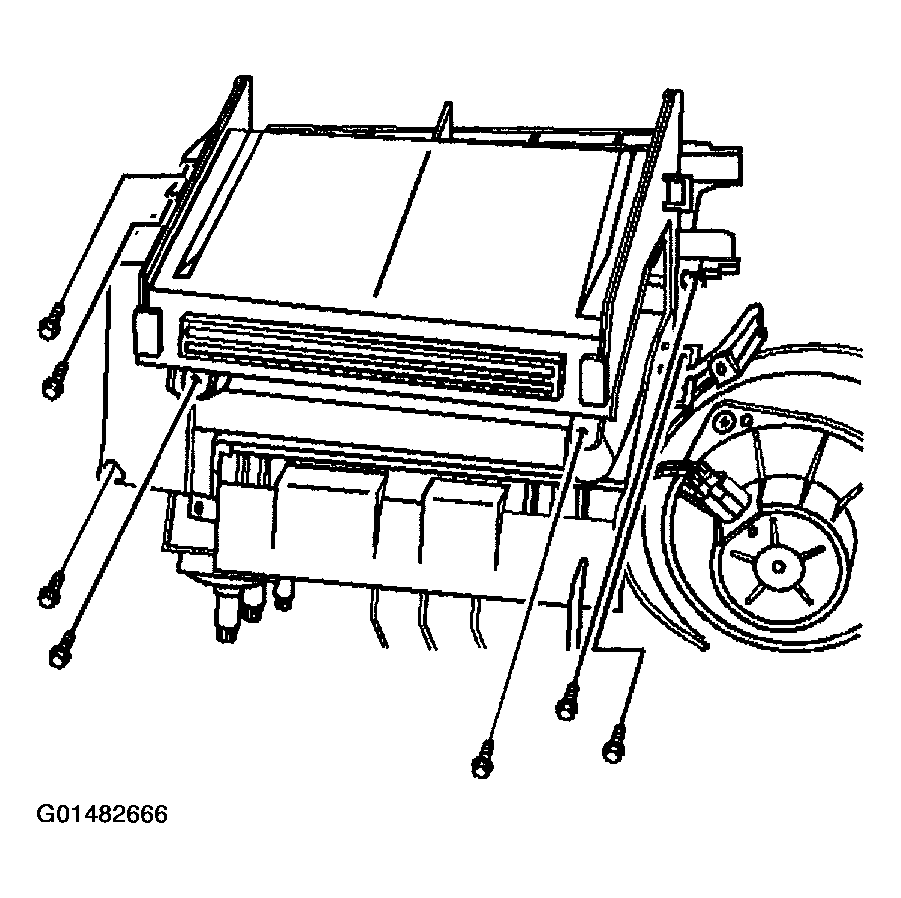

    Fig 1: Removing Heater Core Cover & Retaining Screws
    G01482666Courtesy of GENERAL MOTORS CORP.
