Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater outlet duct. Refer to AIR OUTLET REPLACEMENT - FLOOR   .
  2. Remove the mode actuator. Refer to MODE ACTUATOR REPLACEMENT  .
  3. Remove the mode door actuator mounting bracket screws.
  4. Remove the mode door actuator mounting bracket.
    Fig 1: Removing Mode Door Actuator Mounting Bracket & Screws
    G01482624Courtesy of GENERAL MOTORS CORP.
  5. Disconnect and remove the floor air door lever from the floor air door.

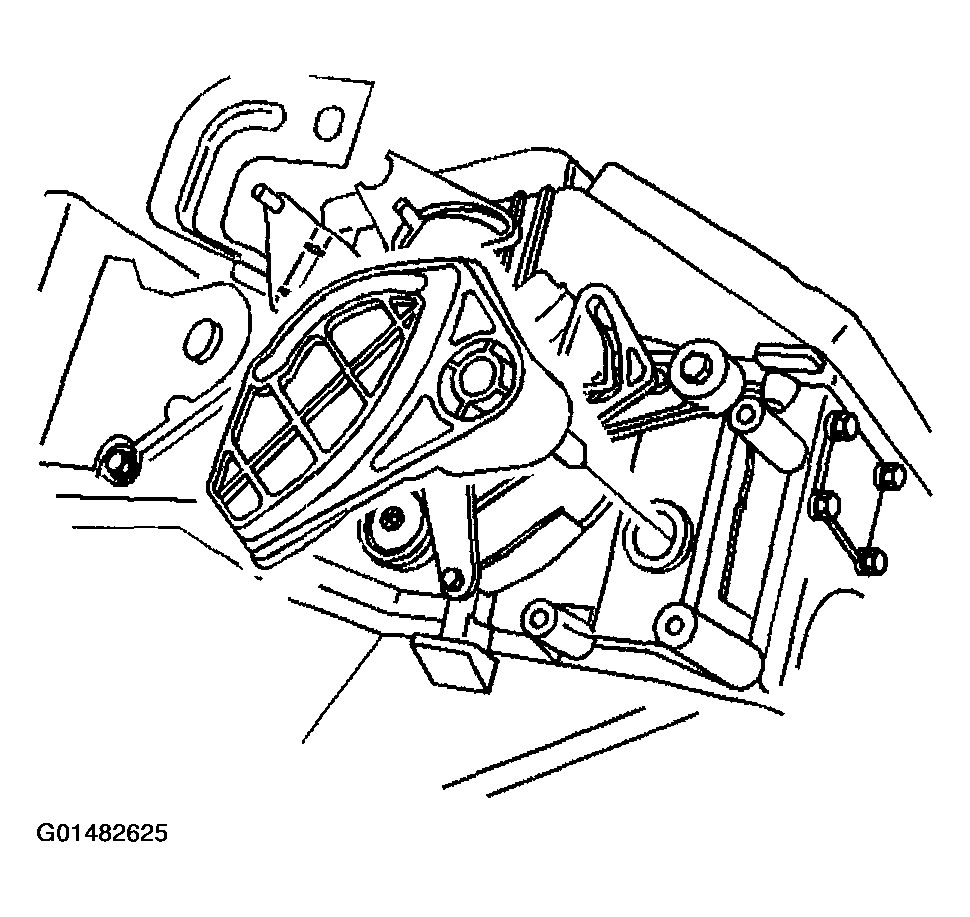

    Fig 2: Removing Floor Air Door Lever From Floor Air Door
    G01482625Courtesy of GENERAL MOTORS CORP.
  6. Remove the floor air door from the HVAC module.

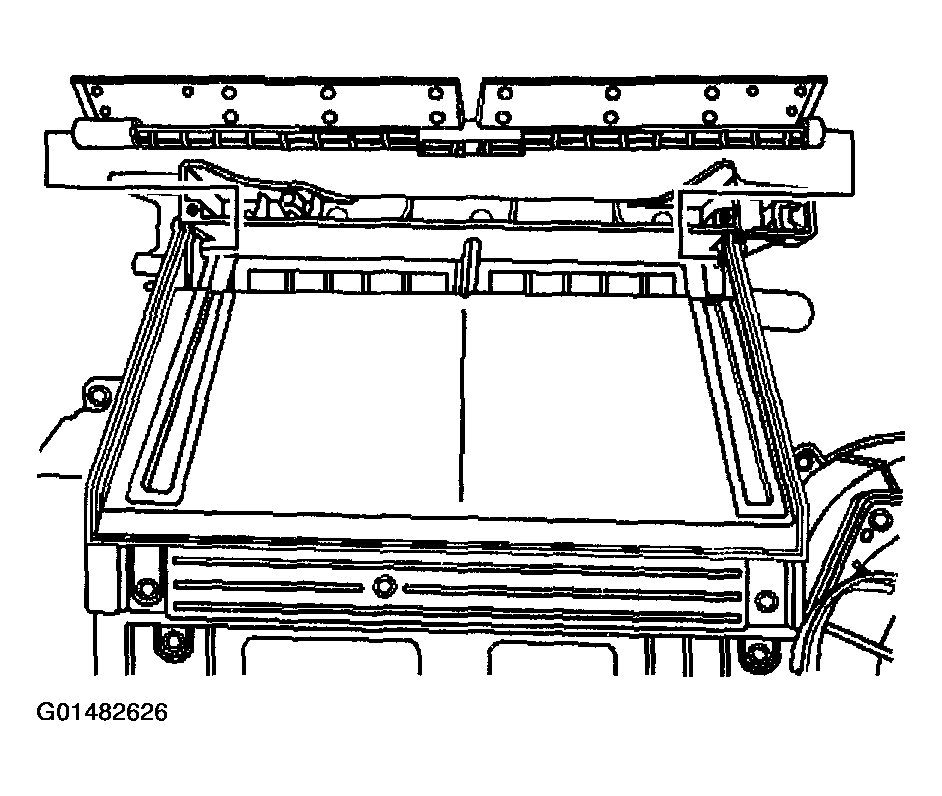

    Fig 3: Removing Floor Air Door From HVAC Module
    G01482626Courtesy of GENERAL MOTORS CORP.
