Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor air door into the HVAC module.

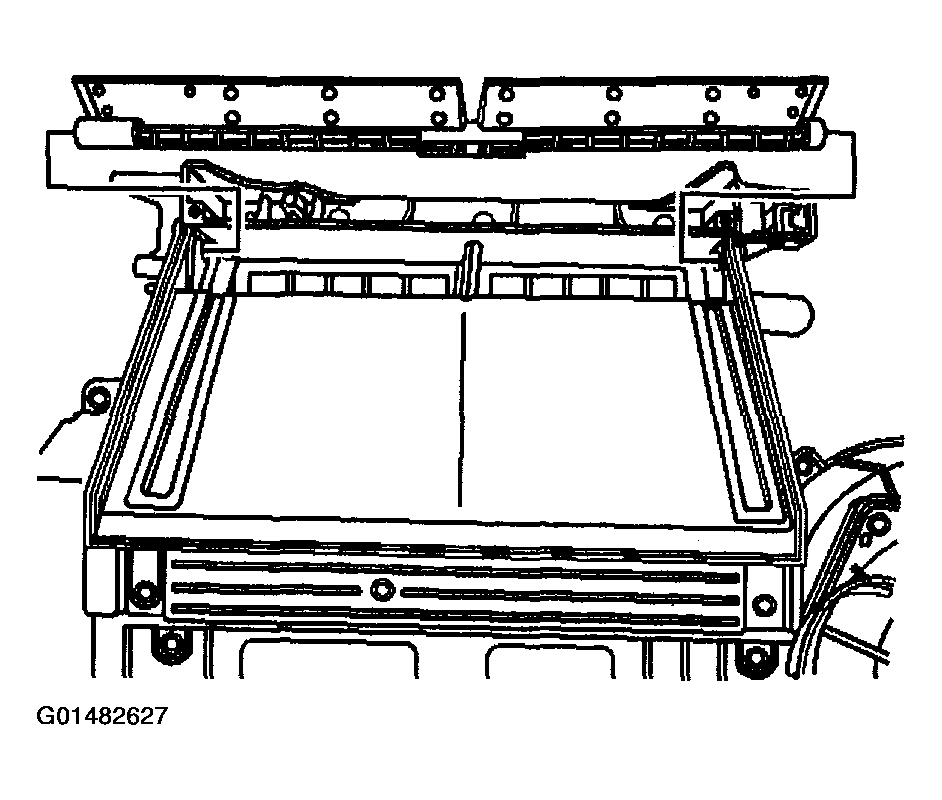

    Fig 1: Installing Floor Air Door Into HVAC Module
    G01482627Courtesy of GENERAL MOTORS CORP.

    Important:  Align the floor air door lever slot with the pin on the mode door main lever.

  2. Install the floor air door lever into the floor air door.

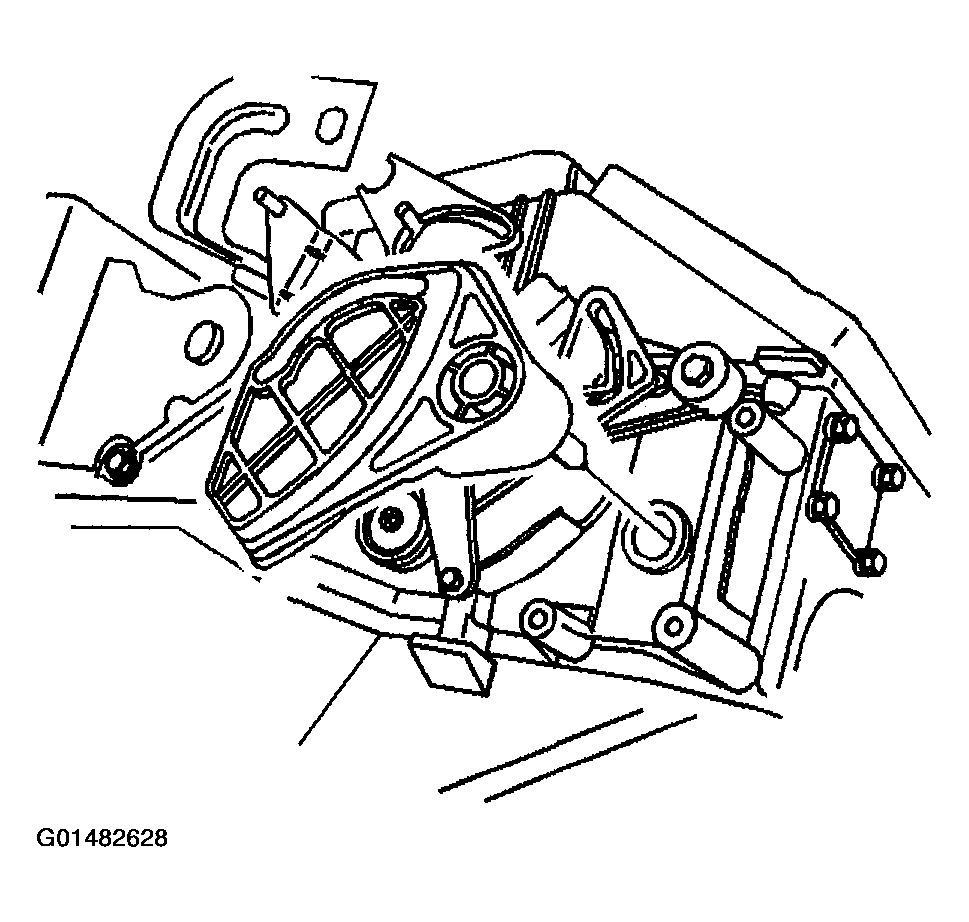

    Fig 2: Installing Floor Air Door Lever Into Floor Air Door
    G01482628Courtesy of GENERAL MOTORS CORP.
  3. Install the mode door actuator mounting bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the mode door actuator mounting bracket screws.

    Tighten

    Tighten the screws to 0.9 N.m (8 lb in).

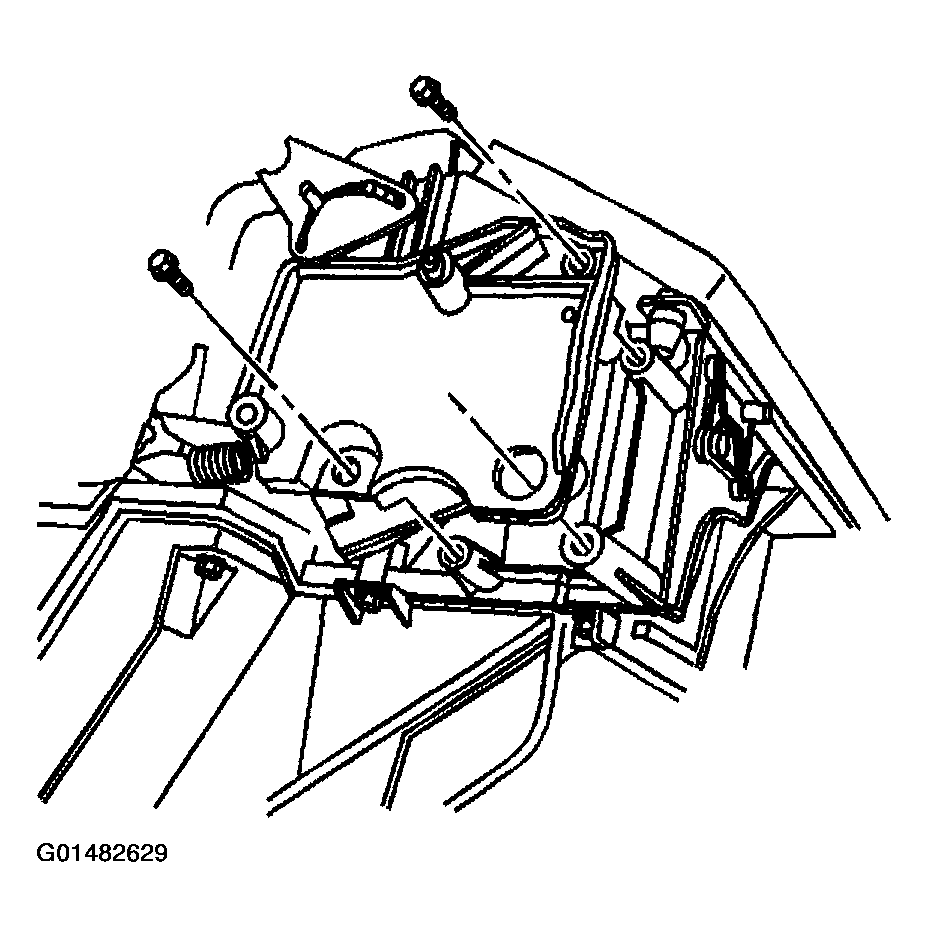

    Fig 3: Installing Mode Door Actuator Mounting Bracket & Screws
    G01482629Courtesy of GENERAL MOTORS CORP.
  5. Install the mode actuator. Refer to MODE ACTUATOR REPLACEMENT  .
  6. Install the heater outlet duct. Refer to AIR OUTLET REPLACEMENT - FLOOR   .
