Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporator core. Refer to EVAPORATOR CORE REPLACEMENT   .

    Important:  Carefully remove the evaporator temperature sensor using needle nose pliers.

  2. Remove the evaporator temperature sensor from the evaporator core.

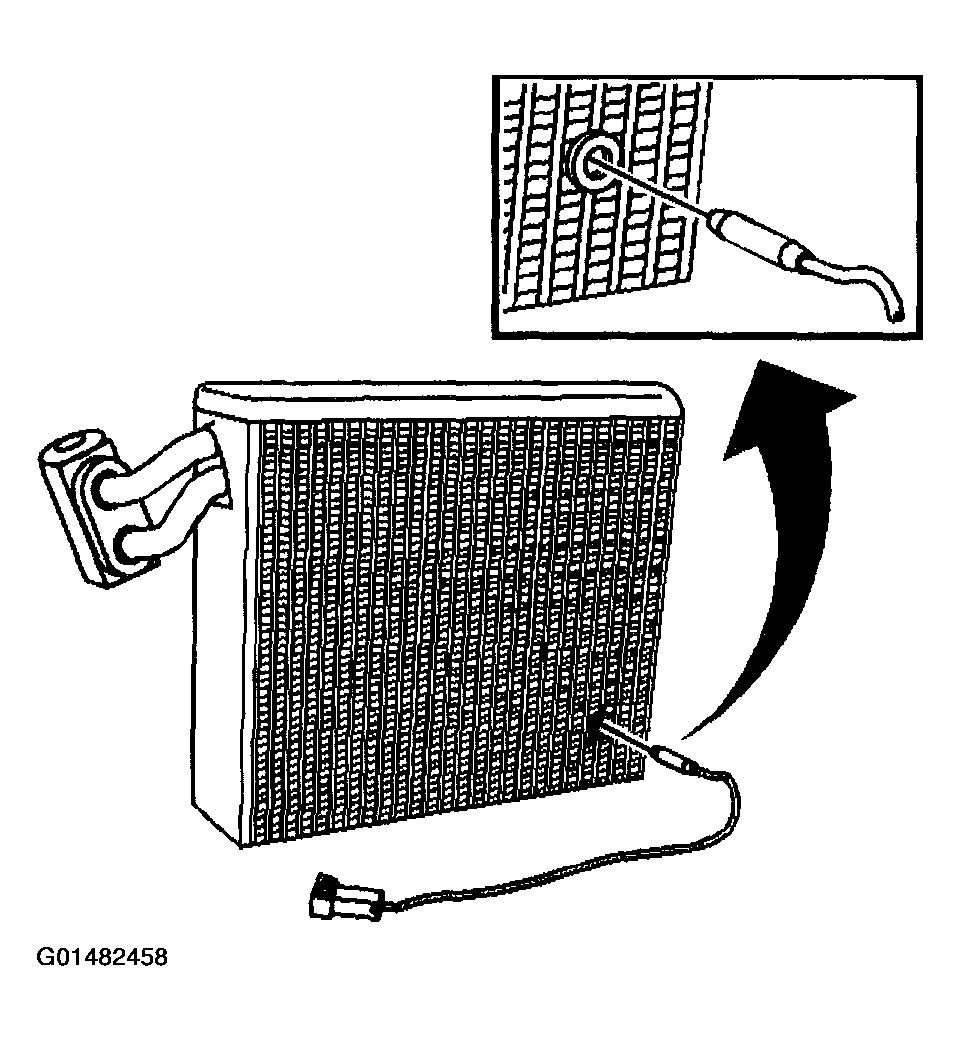

    Fig 1: Removing Evaporator Temperature Sensor From Evaporator Core
    G01482458Courtesy of GENERAL MOTORS CORP.
