Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel.
  2. Remove the auxiliary evaporator pipe clamp screw.
  3. Remove the auxiliary evaporator drain hose from the evaporator clamp.

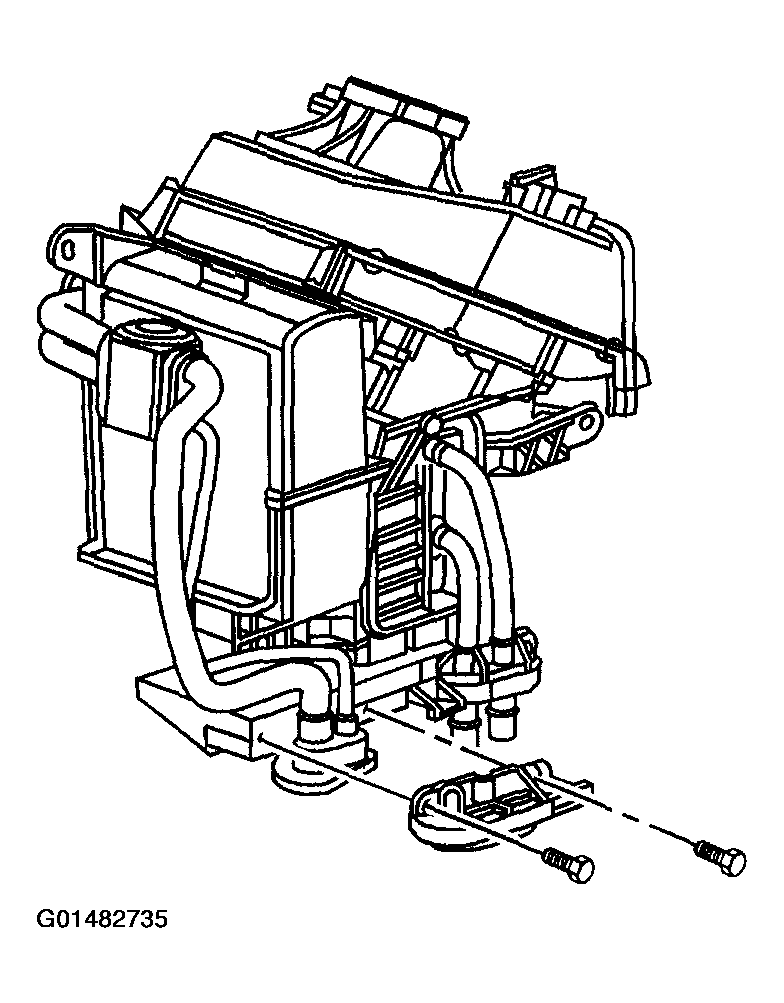

    Fig 1: Removing Auxiliary Evaporator Pipe Clamp & Screw
    G01482735Courtesy of GENERAL MOTORS CORP.
  4. Remove the evaporator drain hose from the auxiliary evaporator housing.
