Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the evaporator drain hose to the auxiliary evaporator housing.
  2. Install the auxiliary evaporator drain hose to the evaporator clamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the auxiliary evaporator pipe clamp screw.

    Tighten

    Tighten the screw to 1.6 N.m (14 lb in).

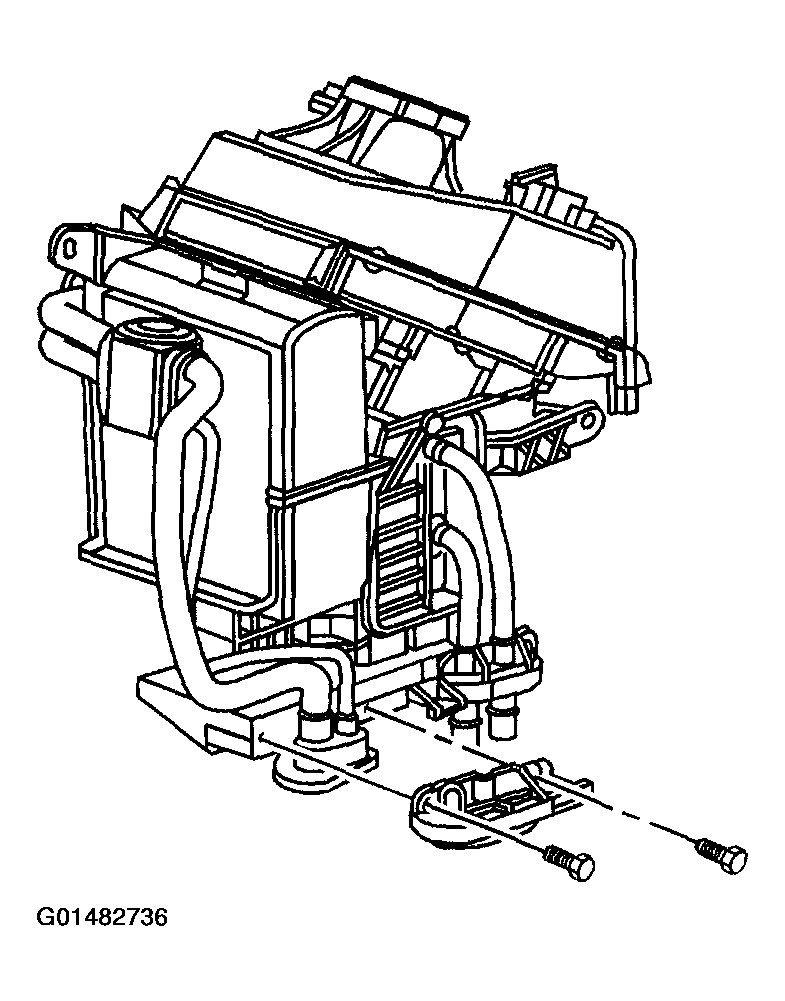

    Fig 1: Installing Auxiliary Evaporator Pipe Clamp & Screw
    G01482736Courtesy of GENERAL MOTORS CORP.
  4. Install the left rear quarter trim panel.
