Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Install the defroster door.

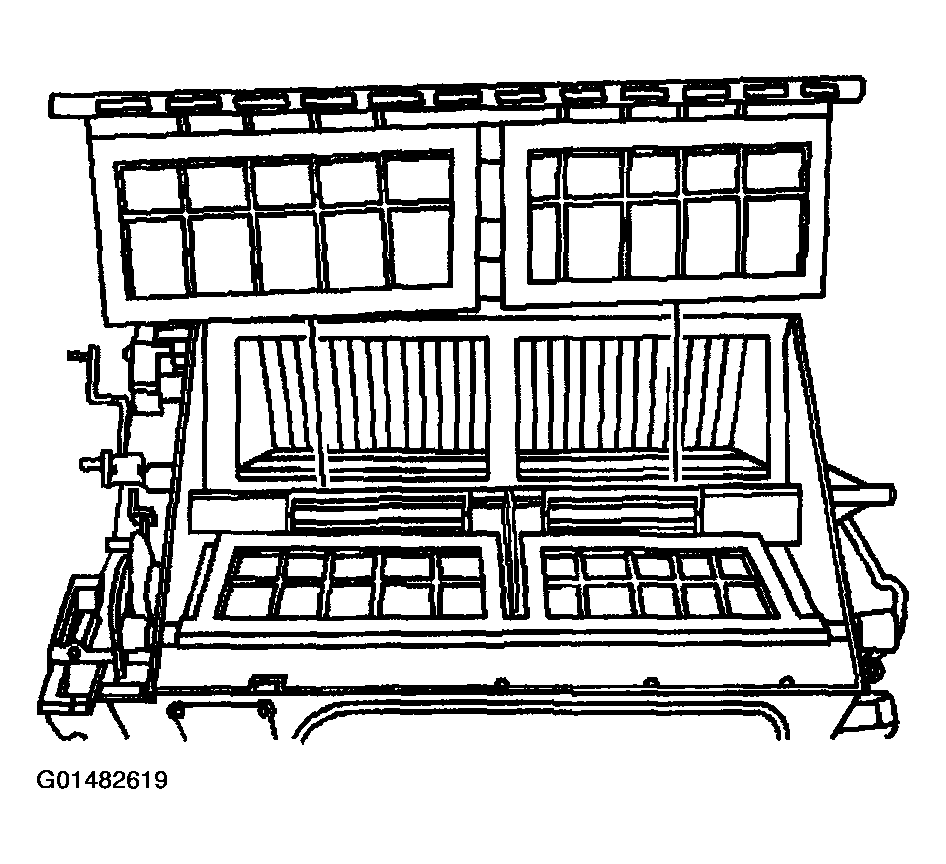

Fig 1: Installing Defroster Door
Courtesy of GENERAL MOTORS CORP.
Install the air distribution cover.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the air distribution cover screws.
Tighten

Tighten the screws to 0.9 N.m (8 lb in).

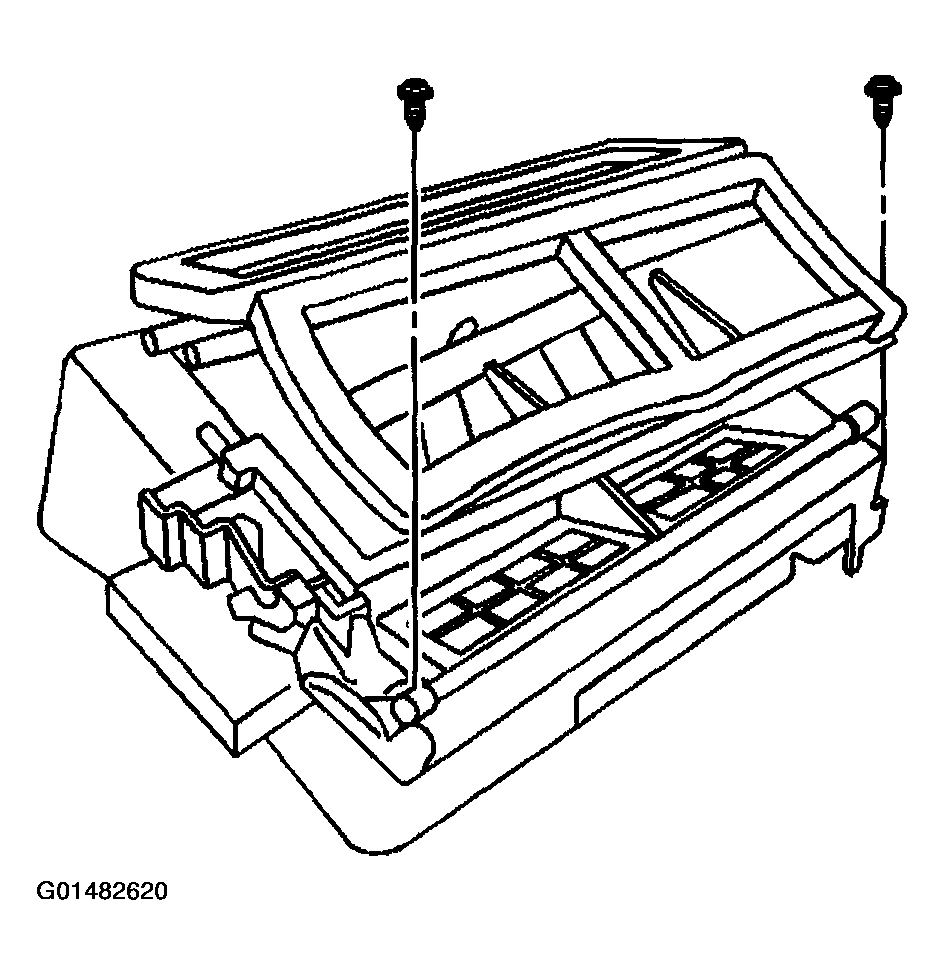

Fig 2: Installing Air Distribution Cover Screws
Courtesy of GENERAL MOTORS CORP.

Important: Align the slot on the defroster door lever with the pin on the mode door main lever.
Connect the defroster door lever (2) and the defroster door spring (1) to the defroster door.
Connect the defroster door spring (1) to the air distribution cover.

Fig 3: Connecting Defroster Door Lever & Spring
Courtesy of GENERAL MOTORS CORP.

Important: Align the slot on the secondary defroster door lever with the pin on the mode door main lever.
Connect the secondary defroster door lever to the secondary defroster door.

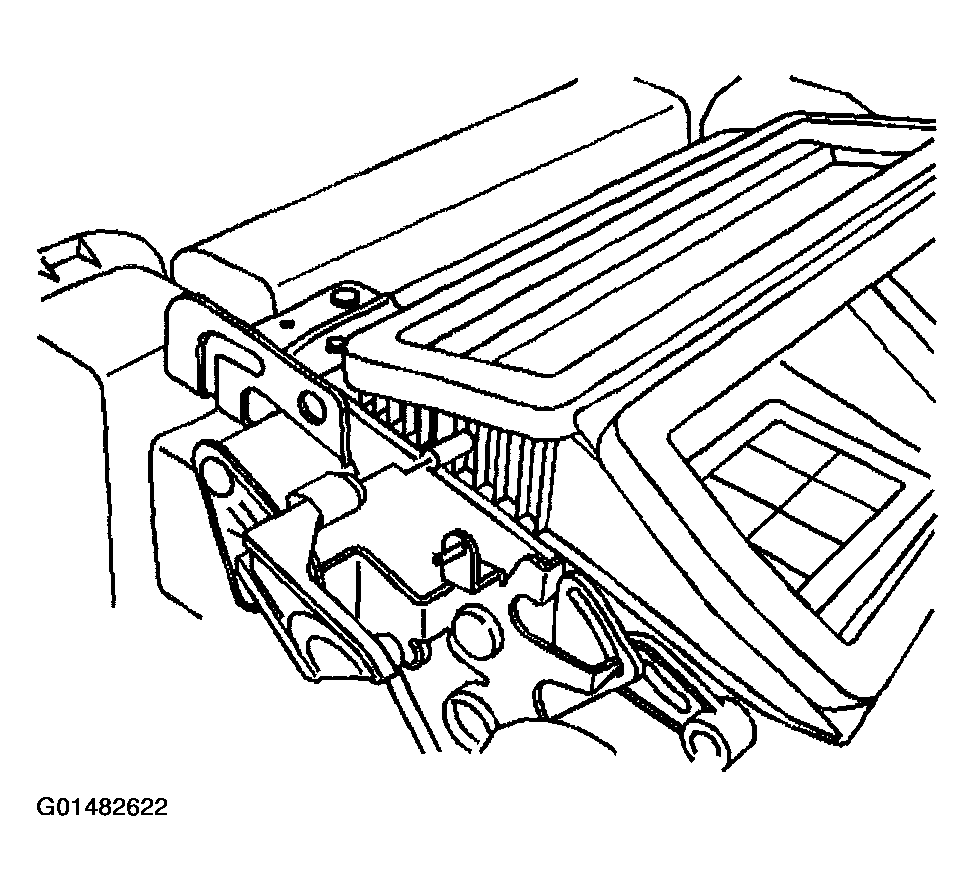

Fig 4: Connecting Secondary Defroster Door Lever To Secondary Defroster Door
Courtesy of GENERAL MOTORS CORP.
Install the right HVAC module mounting bracket to the HVAC module assembly.
Install the right HVAC module mounting bracket screws.
Tighten

Tighten the screws to 1.8 N.m (16 lb in).
Install the left HVAC module mounting bracket to the HVAC module assembly.
Install the left HVAC module mounting bracket screws.
Tighten

Tighten the screws to 1.8 N.m (16 lb in).

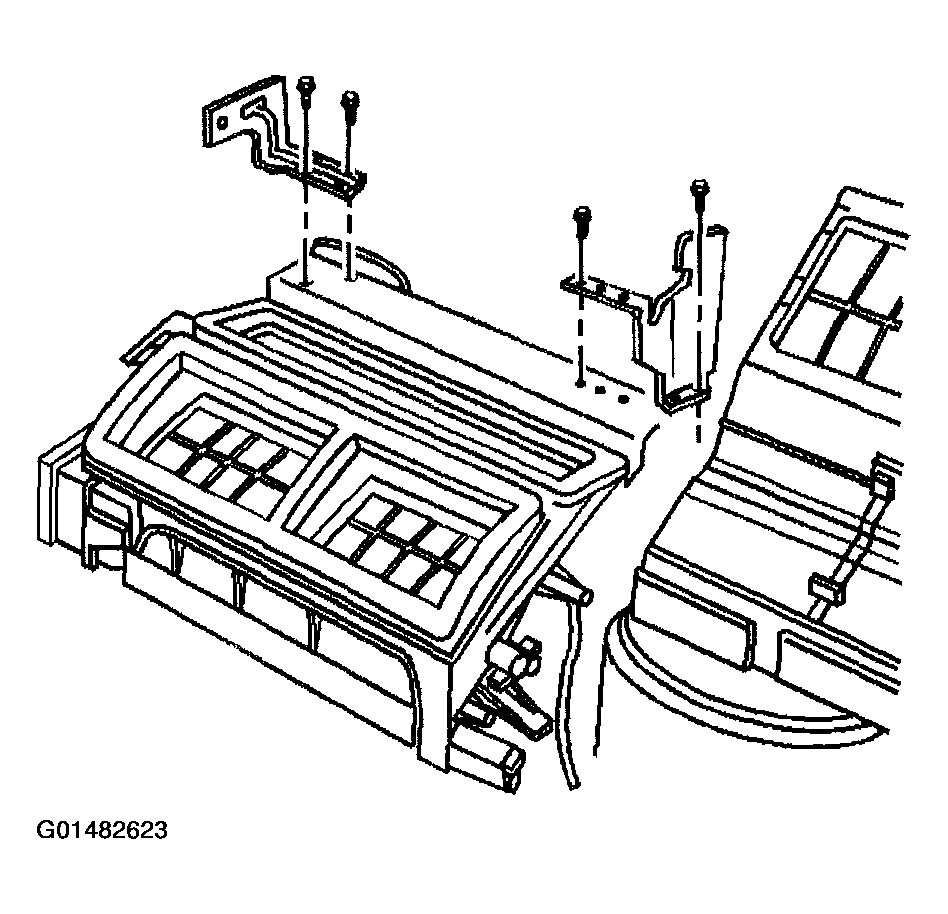

Fig 5: Installing Left & Right HVAC Module Mounting Brackets
Courtesy of GENERAL MOTORS CORP.
Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
