Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The defroster door must be closed to allow clearance during defroster duct removal.

  1. Set the HVAC controls in the vent setting to close the defroster door.
  2. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
  3. Remove the secondary defroster door lever.

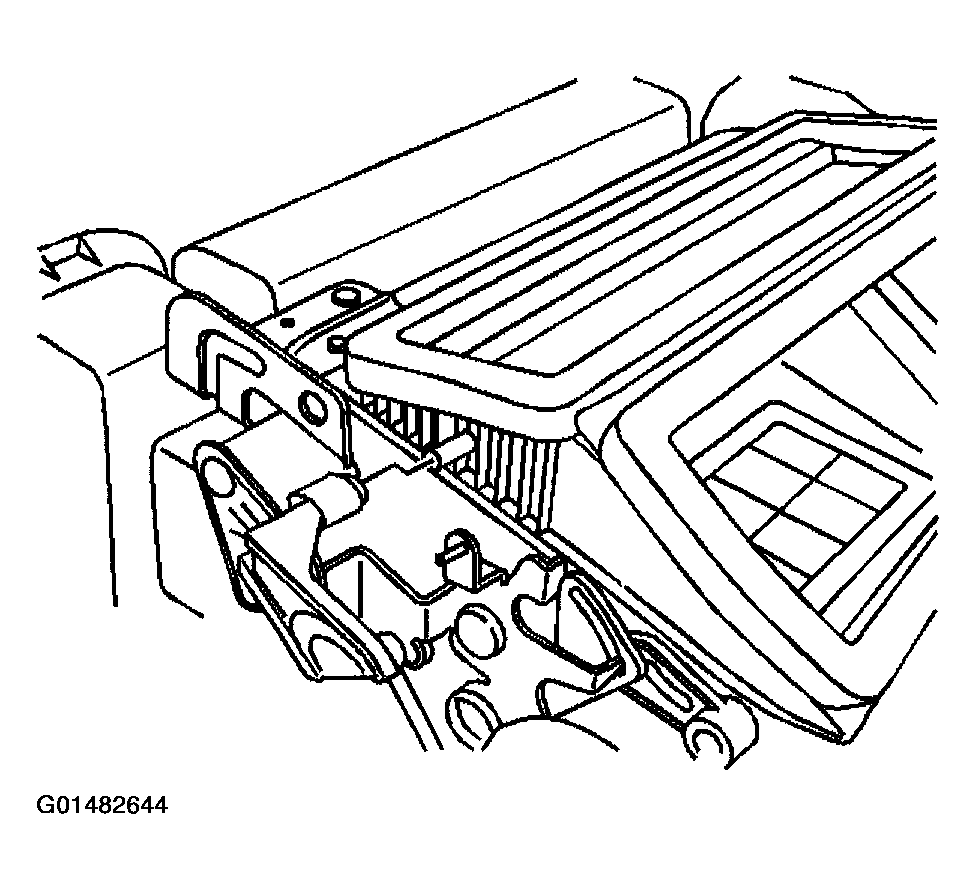

    Fig 1: Removing Secondary Defroster Door Lever
    G01482644Courtesy of GENERAL MOTORS CORP.
  4. Remove the secondary defroster door.

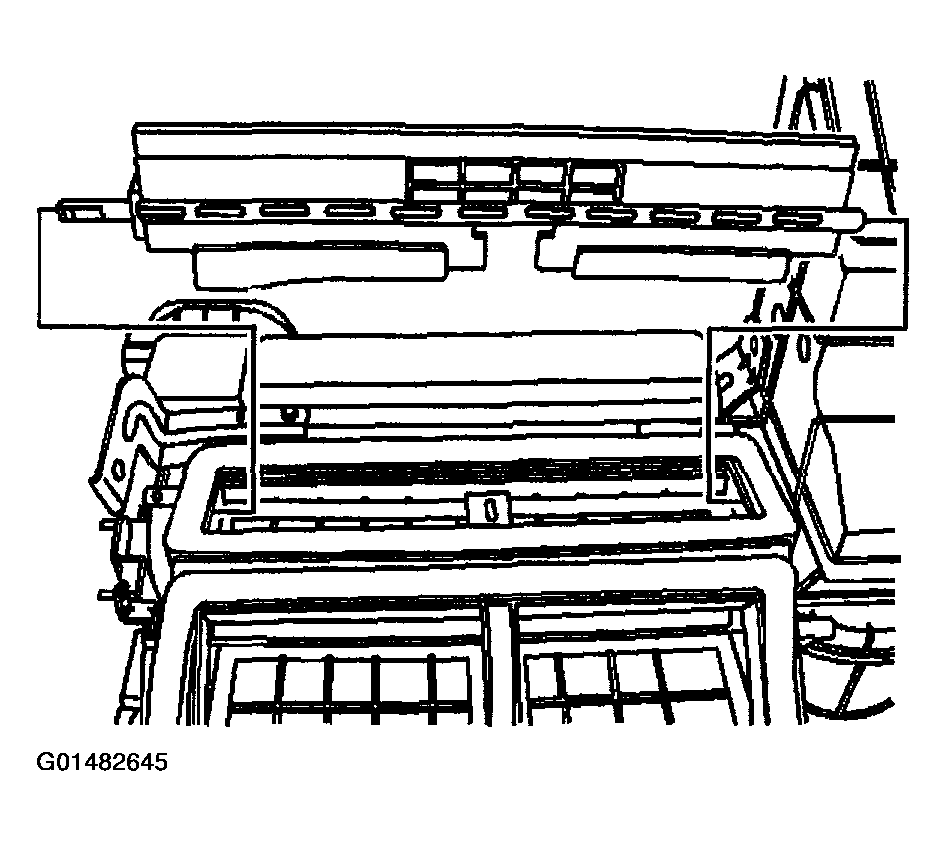

    Fig 2: Removing Secondary Defroster Door
    G01482645Courtesy of GENERAL MOTORS CORP.
