Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the secondary defroster door.

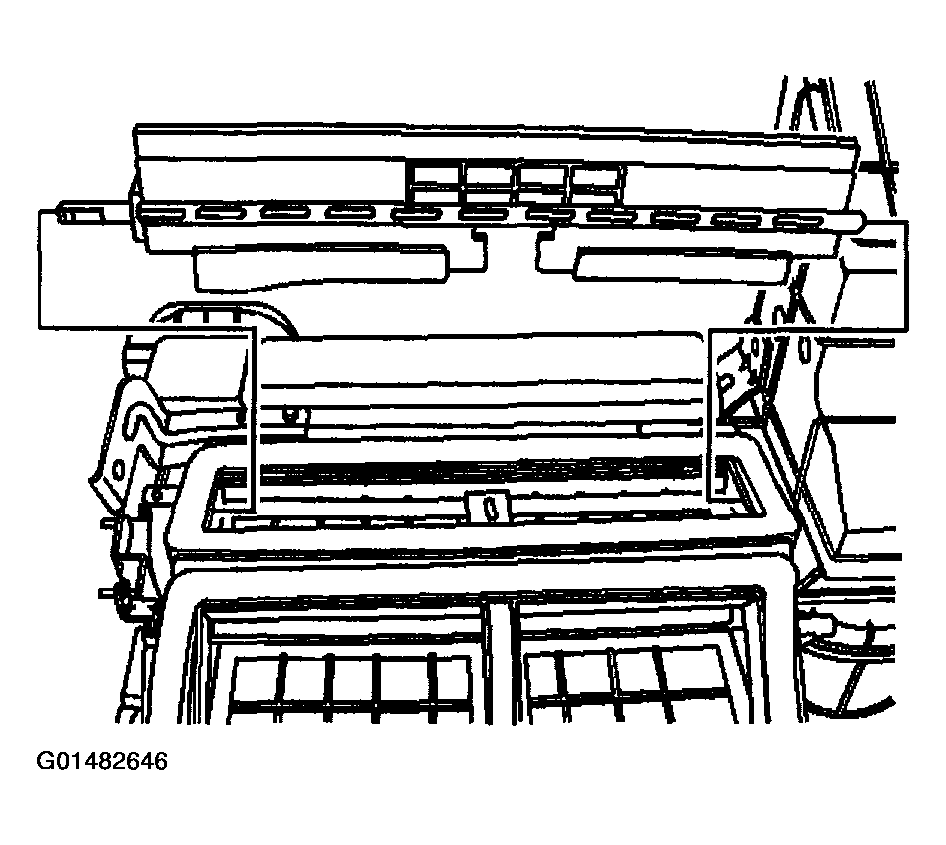

    Fig 1: Installing Secondary Defroster Door
    G01482646Courtesy of GENERAL MOTORS CORP.

    Important:  Align the slot in the secondary defroster door lever with the pin on the mode door main lever.

  2. Install the secondary defroster door lever.
  3. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.

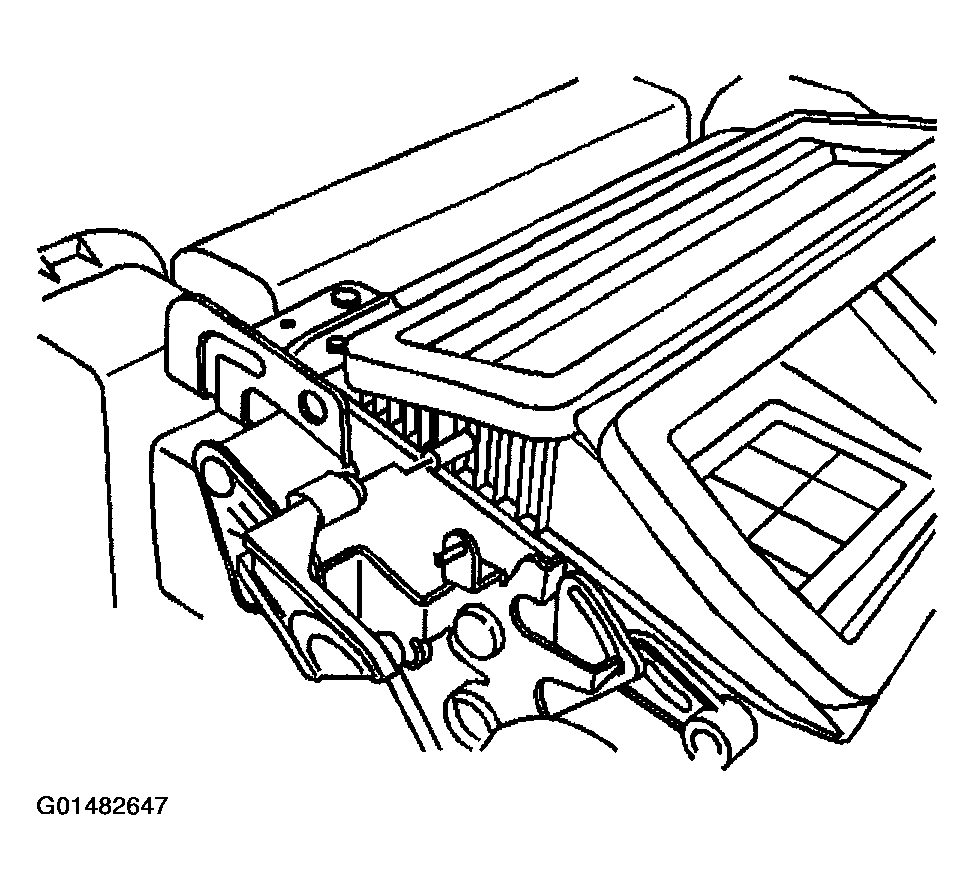

    Fig 2: Installing Secondary Defroster Door Lever
    G01482647Courtesy of GENERAL MOTORS CORP.
