Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Pull the side window duct from the I/P carrier.
  3. Remove side window duct from defroster duct.

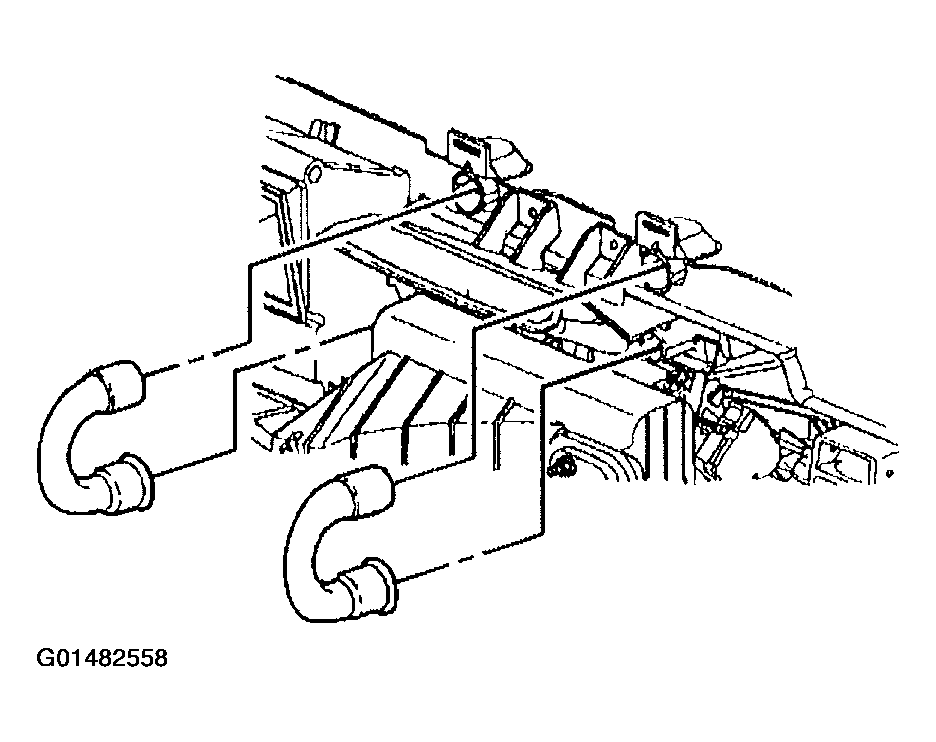

    Fig 1: Removing Side Window Duct From Defroster Duct
    G01482558Courtesy of GENERAL MOTORS CORP.
