Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the side window duct to the defroster duct.
  2. Push the side window duct to snap duct into the I/P carrier.
  3. Install the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.

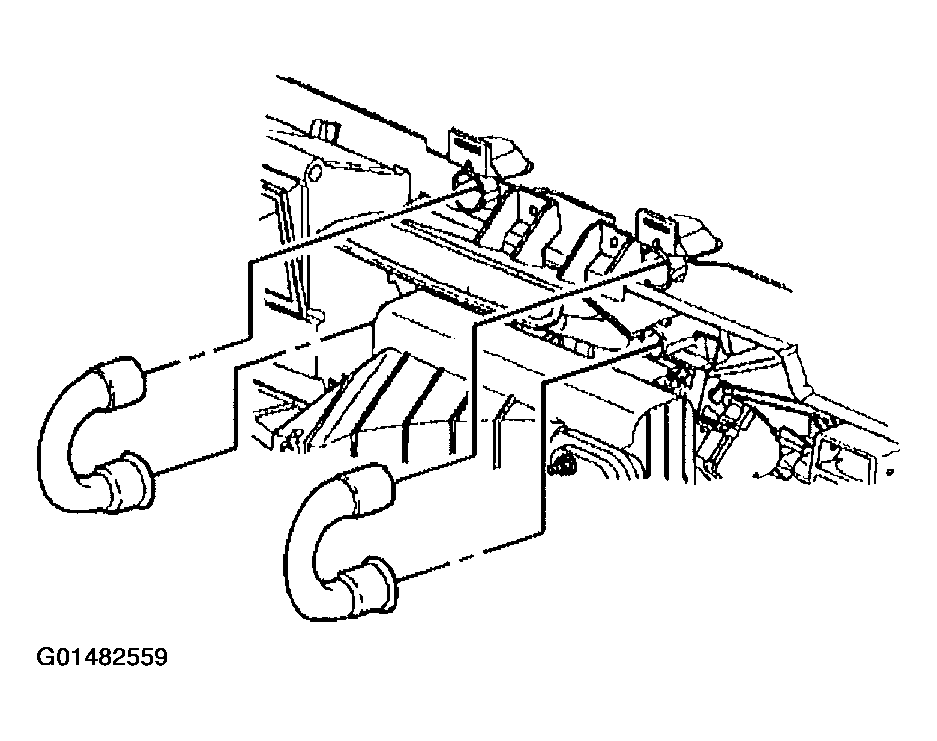

    Fig 1: Installing Side Window Duct To Defroster Duct
    G01482559Courtesy of GENERAL MOTORS CORP.
