Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER  in Instrument Panel, Gages, and Console.
  2. Use a small, flat-bladed tool to depress the retainers.
  3. Remove the deflector housing from the I/P outer air outlet.

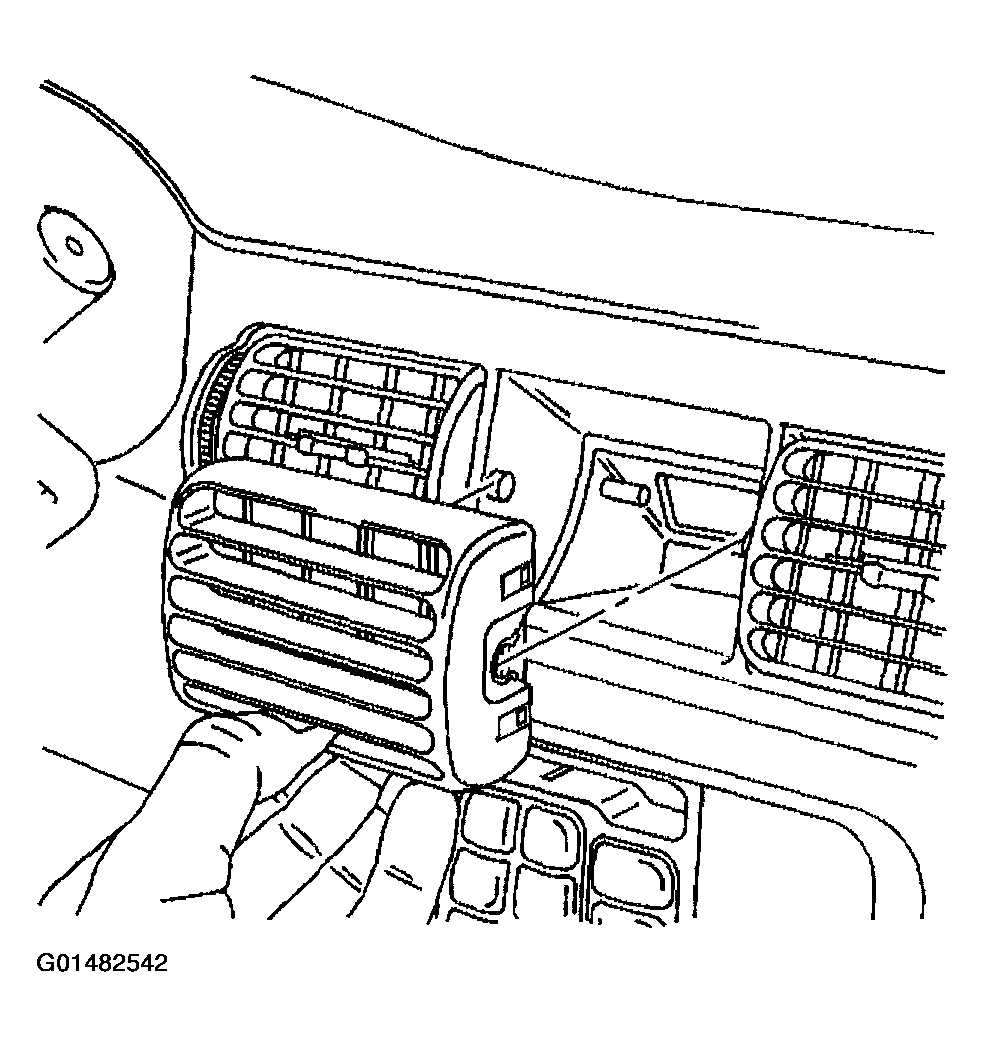

    Fig 1: Removing Deflector Housing From I/P Outer Air Outlet
    G01482542Courtesy of GENERAL MOTORS CORP.
  4. Press from the back side of the I/P cluster trim plate to remove the deflector from the I/P outer air outlet.
  5. Pull off the deflector thumbwheel from the pivot point on the I/P trim plate.
