Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. If replacing the condenser add the specified amount of PAG oil directly to the condenser. Refer to REFRIGERANT SYSTEM CAPACITIES   .
  2. Install the new sealing washers to the receiver dehydrator. Refer to SEALING WASHER REPLACEMENT   .
  3. Install the receiver dehydrator to the condenser.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the receiver dehydrator lower mounting bolts.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

  5. Install the receiver dehydrator upper bracket bolt.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

    Fig 1: Installing Receiver Dehydrator Upper Bracket & Bolt
    G01482465Courtesy of GENERAL MOTORS CORP.
  6. Install the condenser to the radiator.
  7. Install the condenser to radiator mounting bolts.

    Tighten

    Tighten the bolt to 6 N.m (53 lb in).

  8. Install the condenser tube clip.
  9. Install the condenser tube clip bolt.

    Tighten

    Tighten the bolt to 2.5 N.m (22 lb in).

  10. Install the radiator and condenser assembly.

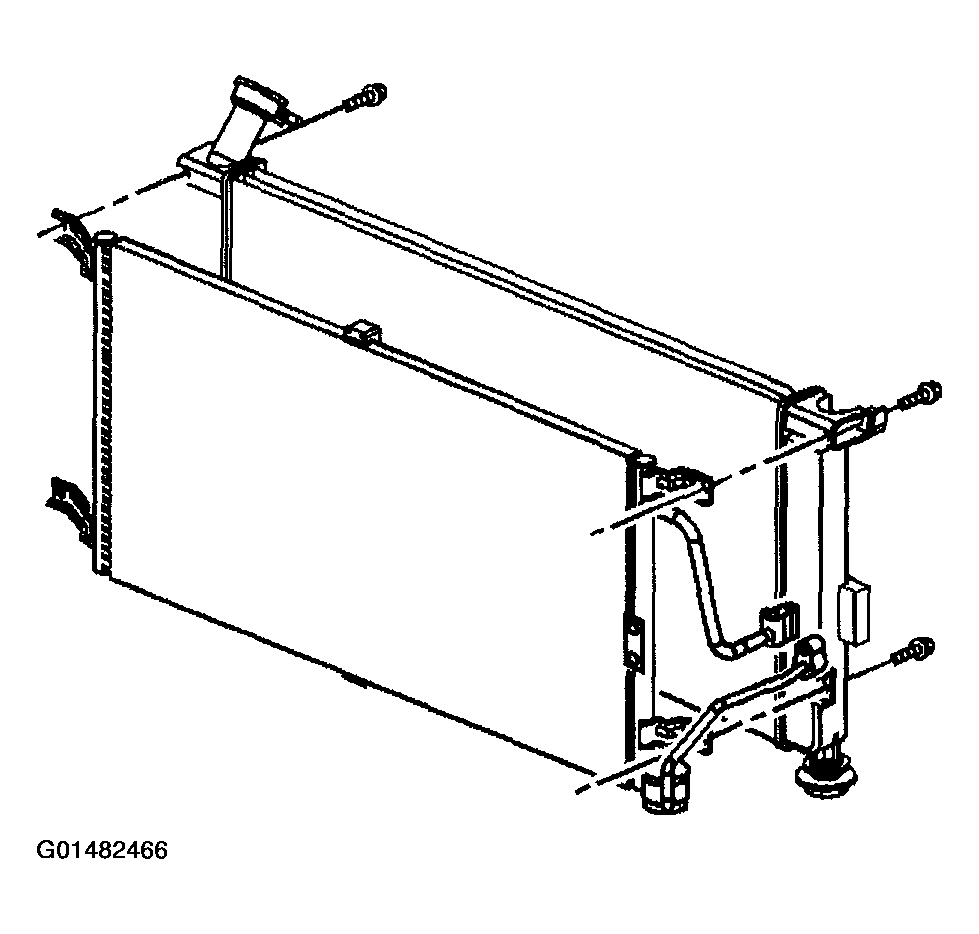

    Fig 2: Installing Radiator & Condenser Assembly
    G01482466Courtesy of GENERAL MOTORS CORP.
  11. Remove cap or tape from the evaporator inlet tube.
  12. Install a new sealing washer to the evaporator inlet fitting. Refer to SEALING WASHER REPLACEMENT   .
  13. Install the evaporator inlet tube and bolt to the condenser block.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

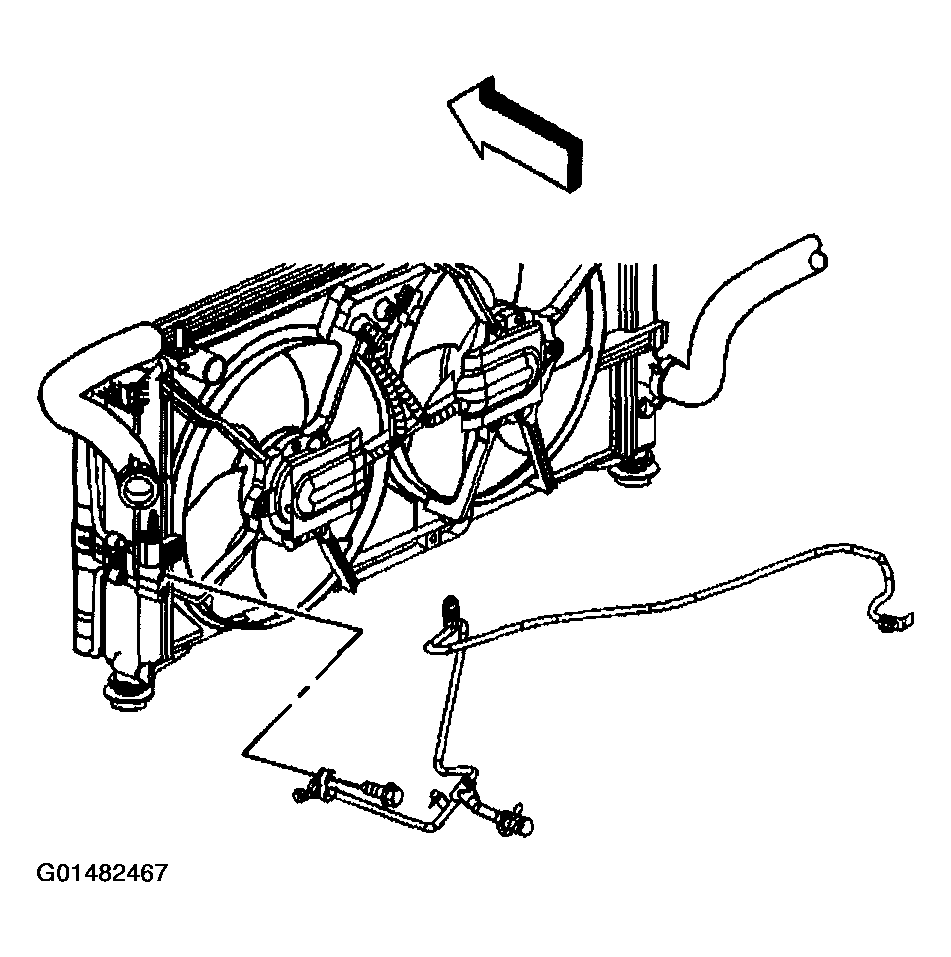

    Fig 3: Installing Evaporator Inlet Tube & Bolt To Condenser Block
    G01482467Courtesy of GENERAL MOTORS CORP.
  14. Remove cap or tape from the A/C discharge hose.
  15. Install a new sealing washer to the A/C discharge hose fitting. Refer to SEALING WASHER REPLACEMENT   .
  16. Install the A/C discharge hose and nut to the condenser block.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

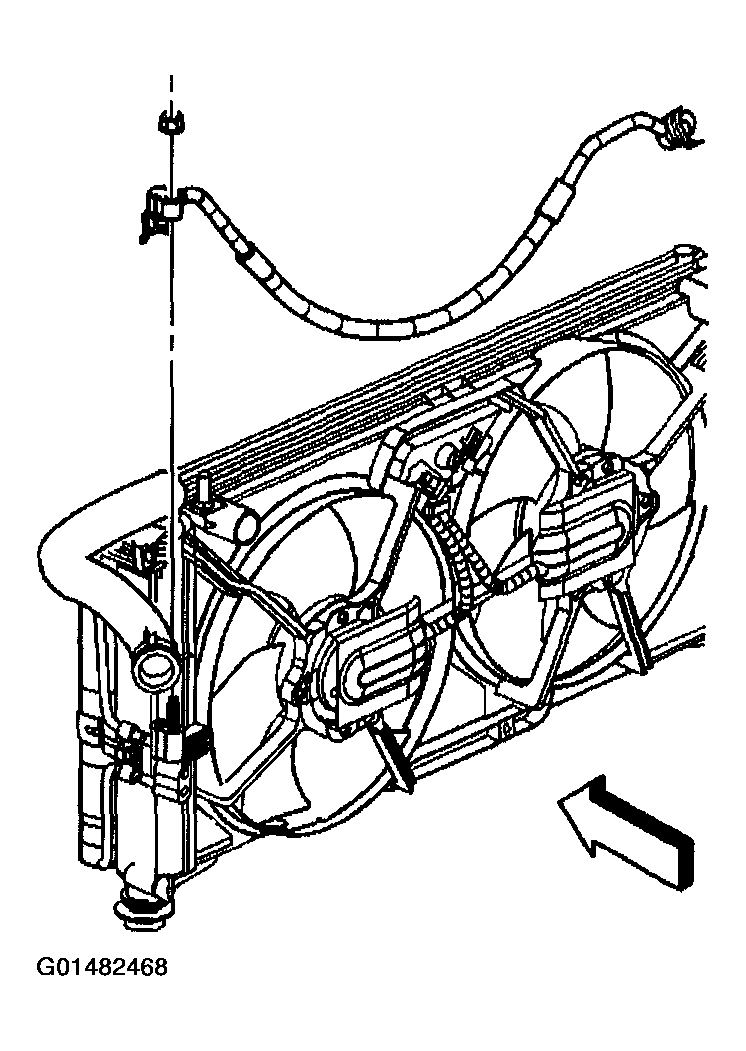

    Fig 4: Installing A/C Discharge Hose & Nut To Condenser Block
    G01482468Courtesy of GENERAL MOTORS CORP.
  17. Connect the lower TOC line to the radiator. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING  in Automatic Transaxle - 4T65-E.
  18. Install the radiator lower hose.

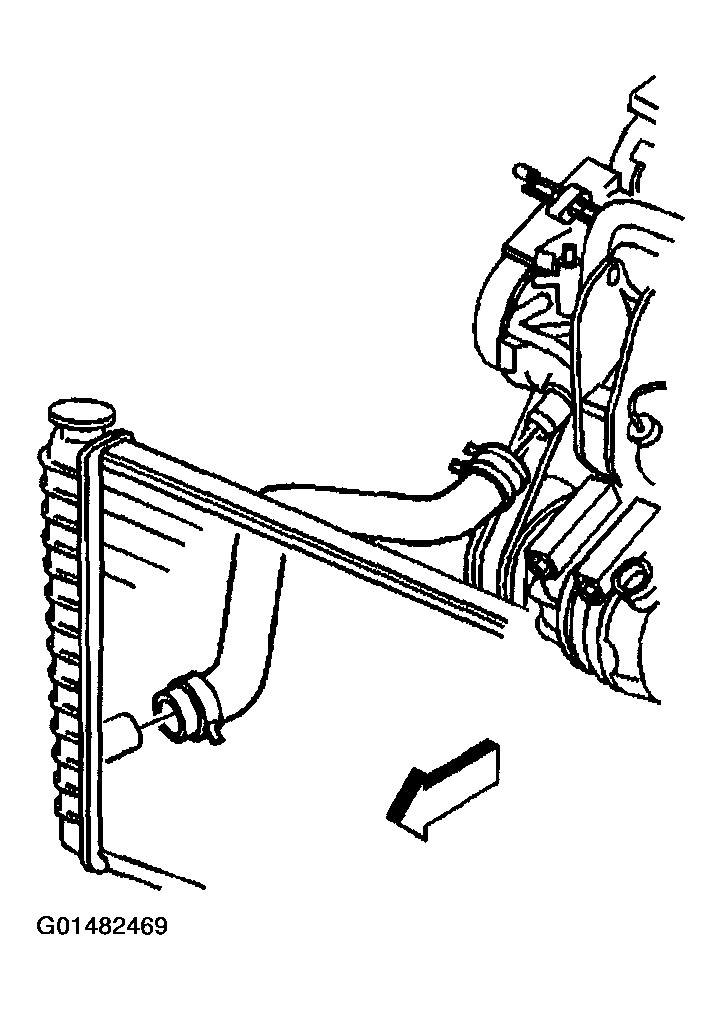

    Fig 5: Installing Radiator Lower Hose
    G01482469Courtesy of GENERAL MOTORS CORP.
  19. Reposition the hose clamps to secure radiator lower hose using the J 38185.
  20. Install the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - ELECTRIC in Engine Cooling.
  21. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
  22. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  23. Leak test the fittings using the J 39400-A.
