Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Recover the refrigerant from the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  2. Remove the discharge hose to compressor nut.

    Important:

    Cap or tape the open A/C hoses and A/C refrigerant component immediately to prevent system contamination.

  3. Disconnect the discharge hose from the compressor.

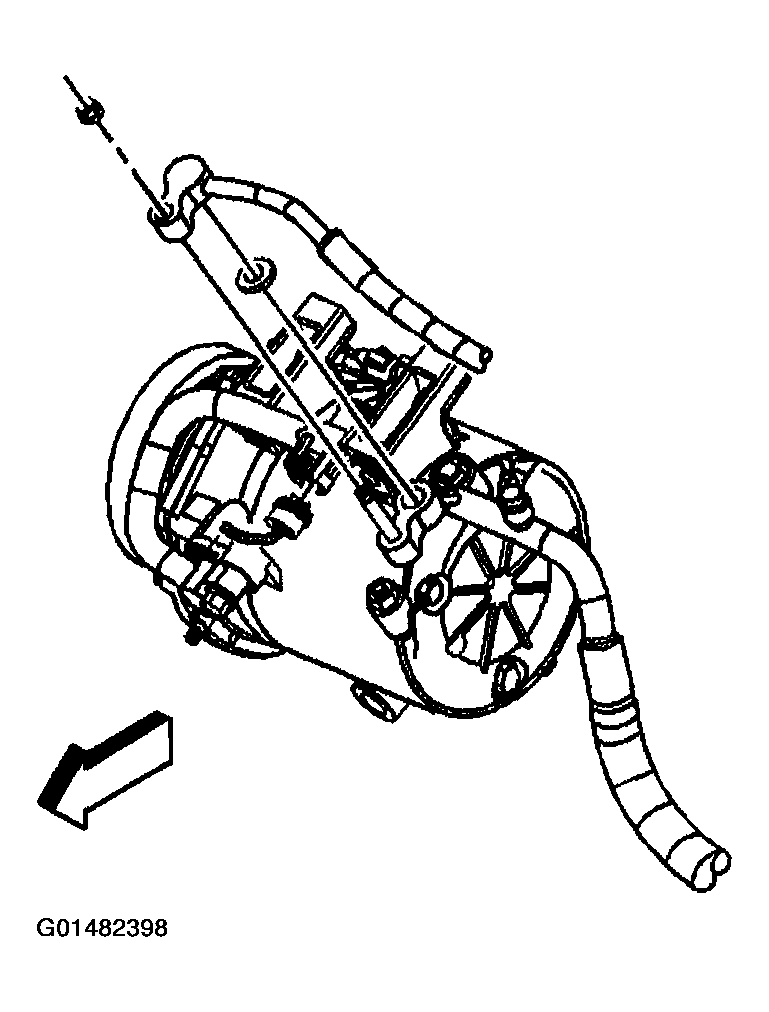

    Fig 1: Removing Discharge Hose To Compressor
    G01482398Courtesy of GENERAL MOTORS CORP.
  4. Remove the discard the sealing washer.
  5. Cap or tape off the compressor discharge port.
  6. Cap or tape off the discharge hose.
  7. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information. .
  8. Remove the air baffle bolts.
  9. Remove the air baffle.

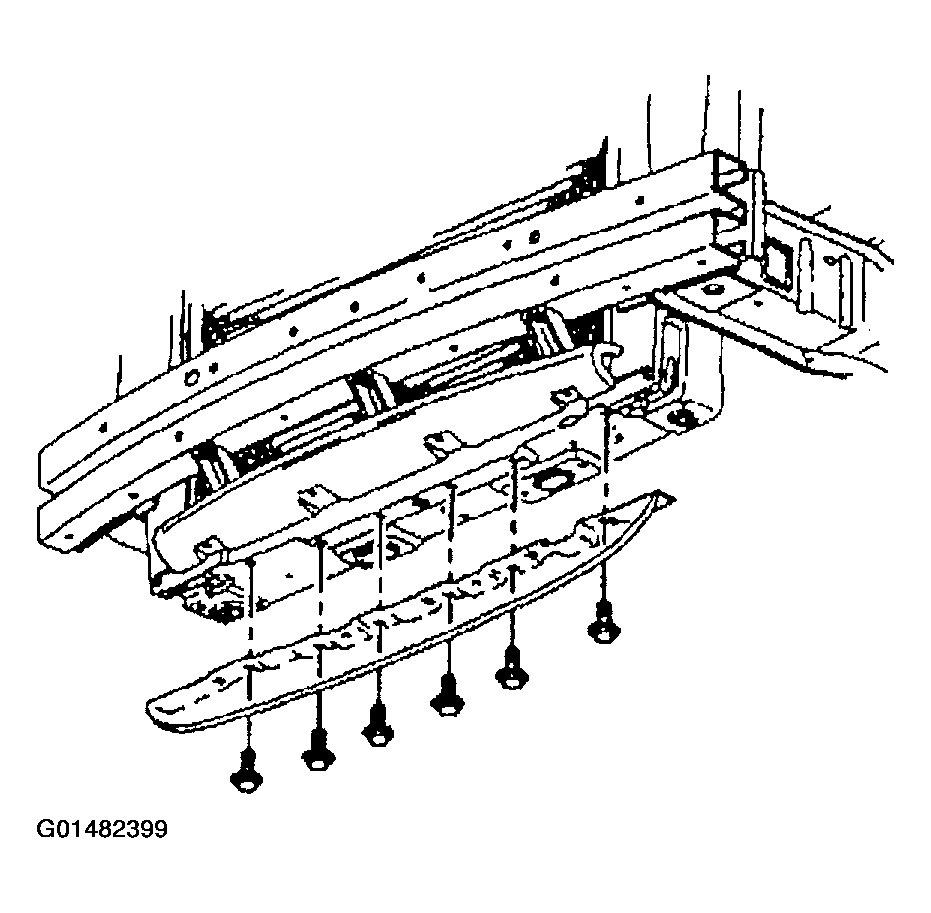

    Fig 2: Removing Air Baffle & Bolts
    G01482399Courtesy of GENERAL MOTORS CORP.
  10. Remove the suction hose to compressor nut.
  11. Disconnect the suction hose from the compressor.
    Fig 3: Disconnecting Suction Hose To Compressor
    G01482400Courtesy of GENERAL MOTORS CORP.
  12. Cap or tape off the compressor suction port.
  13. Remove the discard the sealing washer.
  14. Cap or tape off the suction hose.
