Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the high pressure relief valve O-ring. Refer to O-RING REPLACEMENT   .
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the high pressure relief valve to the A/C compressor.

    Tighten

    Tighten the valve to 12 N.m (9 lb ft).

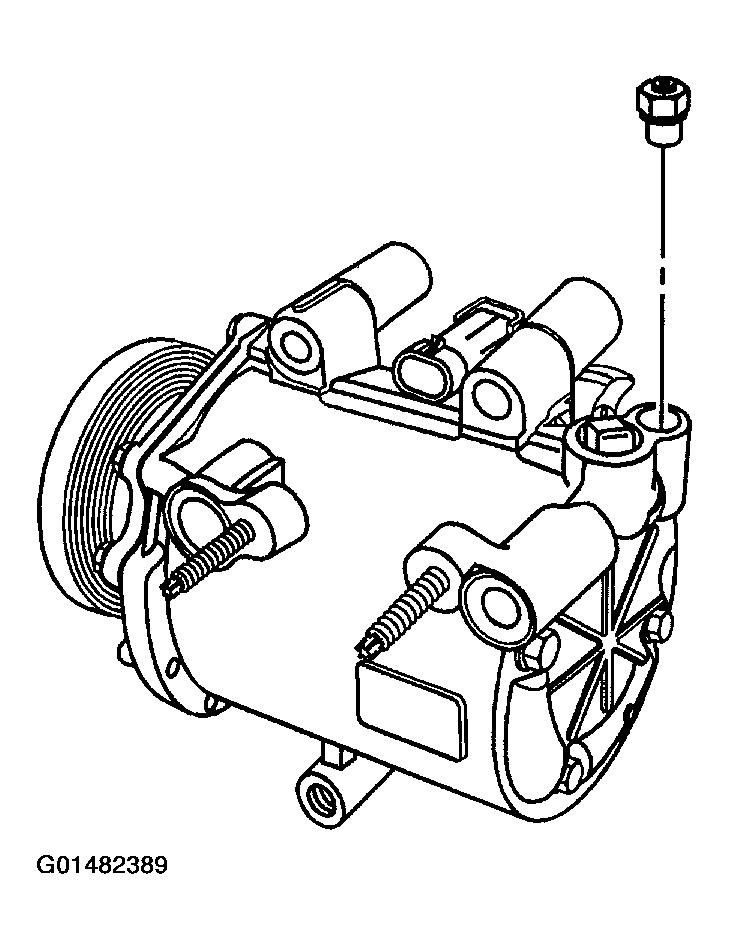

    Fig 1: Installing High Pressure Relief Valve To A/C Compressor
    G01482389Courtesy of GENERAL MOTORS CORP.
  3. Raise and support the vehicle.
  4. Remove the cap or tape from the A/C compressor suction port and suction hose end fitting.
  5. Install a new seal washer to the suction hose end fitting. Refer to SEALING WASHER REPLACEMENT   .
  6. Connect the suction hose to the A/C compressor.

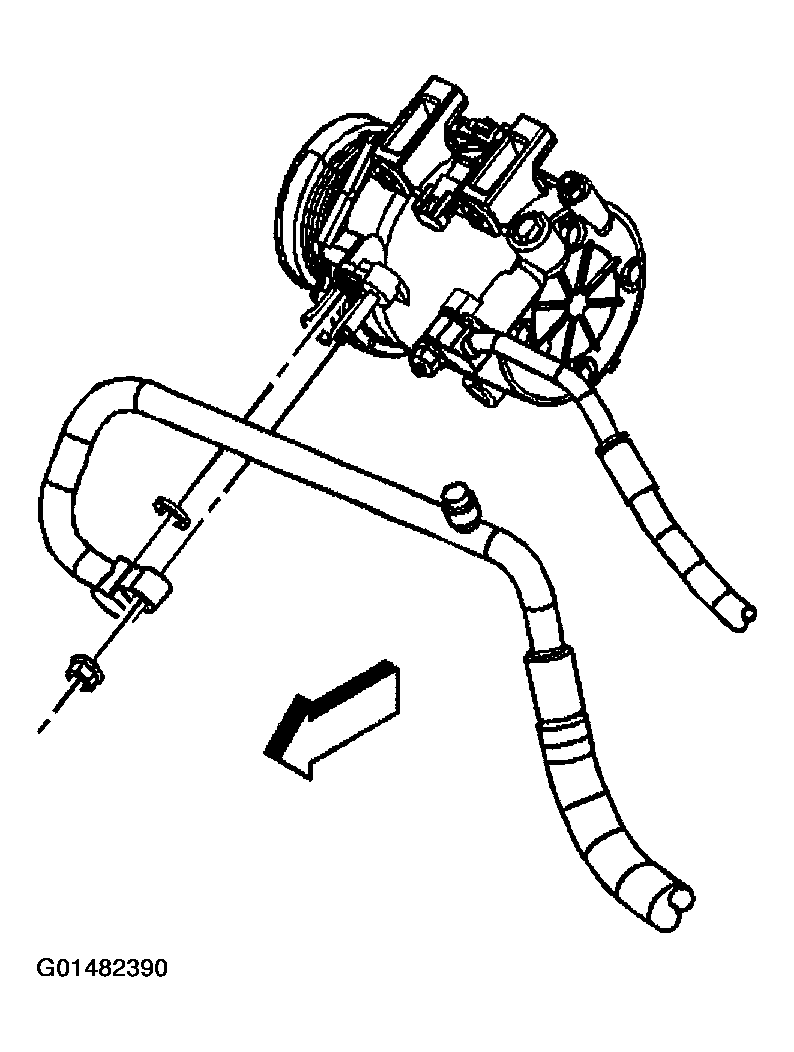

    Fig 2: Installing Suction Hose To A/C Compressor
    G01482390Courtesy of GENERAL MOTORS CORP.
  7. Install the suction hose to A/C compressor nut.

    Tighten

    Tighten the nut to 16 N.m (12 lb ft).

  8. Install the air baffle.
  9. Install the air baffle bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

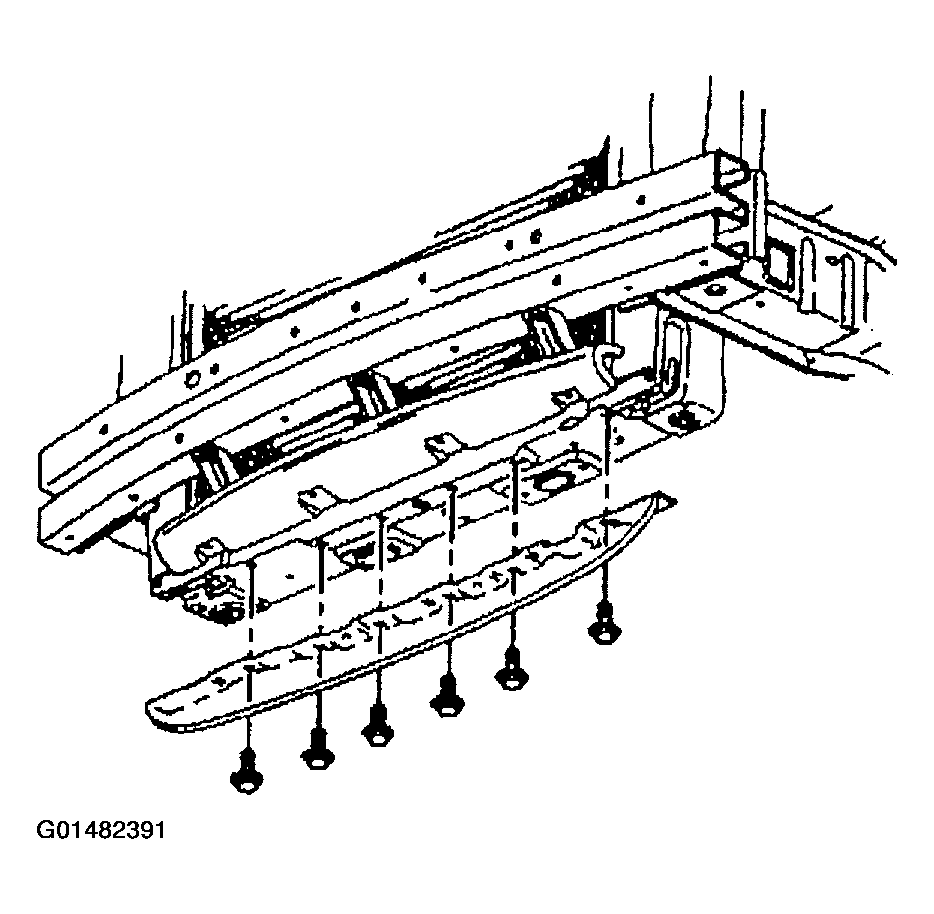

    Fig 3: Installing Air Baffle & Bolts
    G01482391Courtesy of GENERAL MOTORS CORP.
  10. Lower the vehicle.
  11. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING   .
  12. Leak test the fittings of the component using J 39400-A.
