Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the blower motor.
  3. Remove the blower motor mounting screws.
  4. Remove the blower motor from the HVAC module assembly.

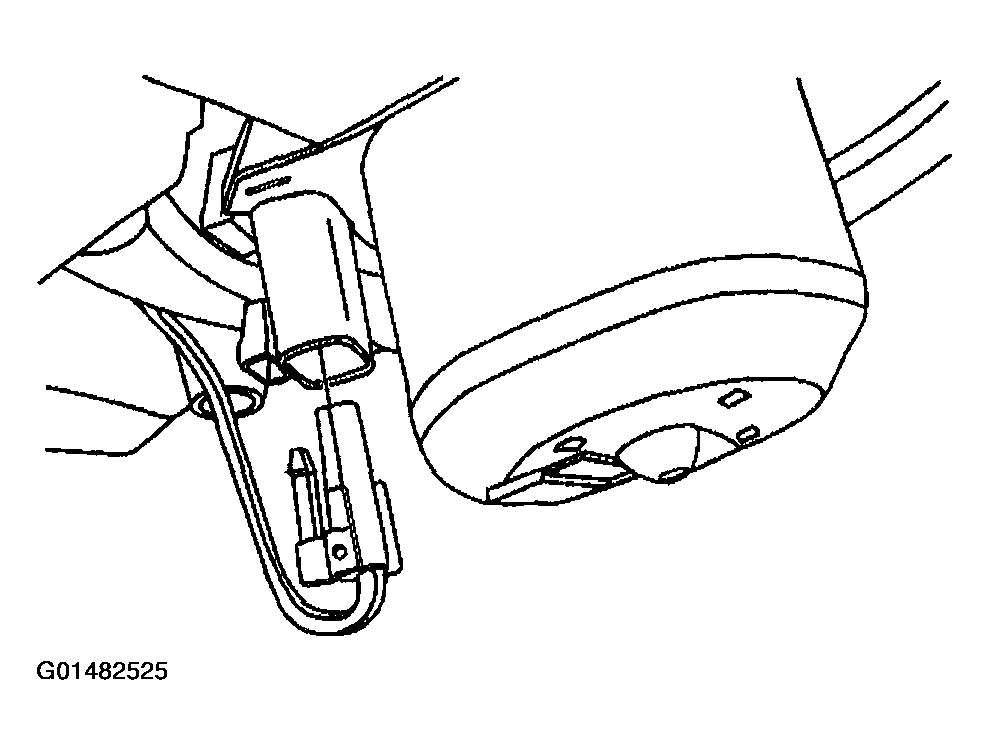

    Fig 1: Disconnecting Electrical Connector From HVAC Module Assembly
    G01482525Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the blower motor resistor.

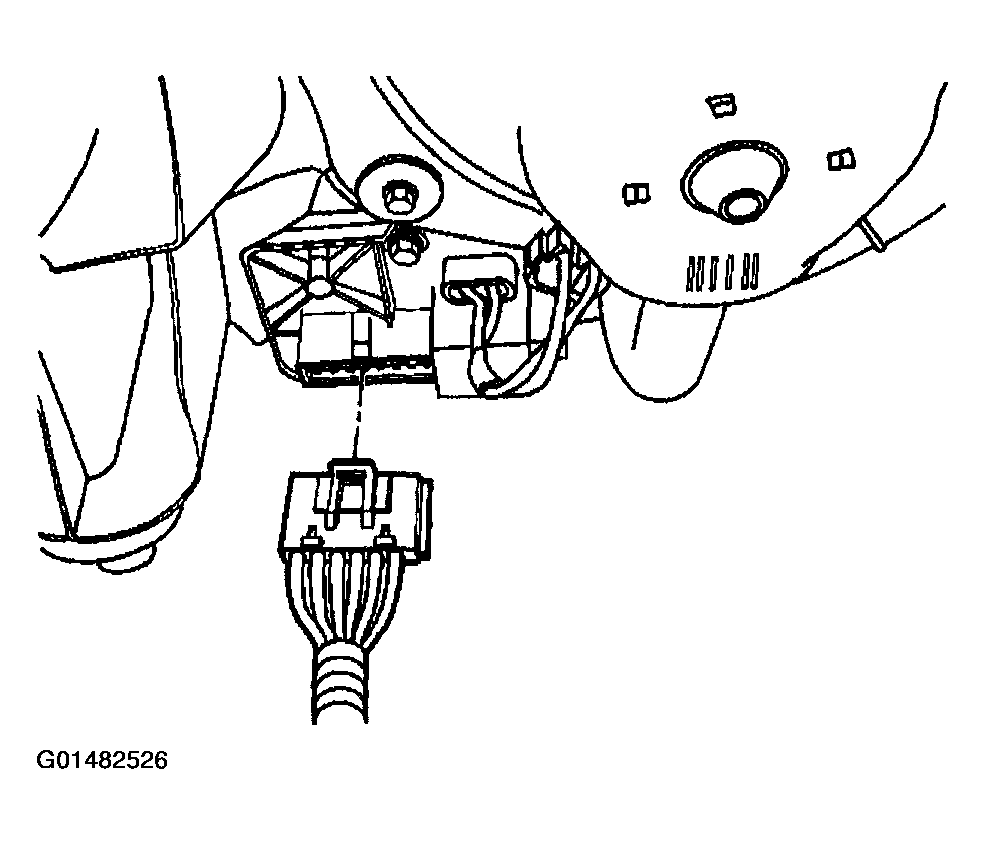

    Fig 2: Disconnecting Electrical Connector From Blower Motor Resistor
    G01482526Courtesy of GENERAL MOTORS CORP.

    Important:  Only loosen both of the forward blower motor resistor mounting screws. The blower motor resistor mounting holes are slotted.

  6. Loosen the forward blower motor resistor mounting screws.
  7. Remove the rearward blower motor resistor mounting screw.
  8. Remove the blower motor resistor from the HVAC module assembly.

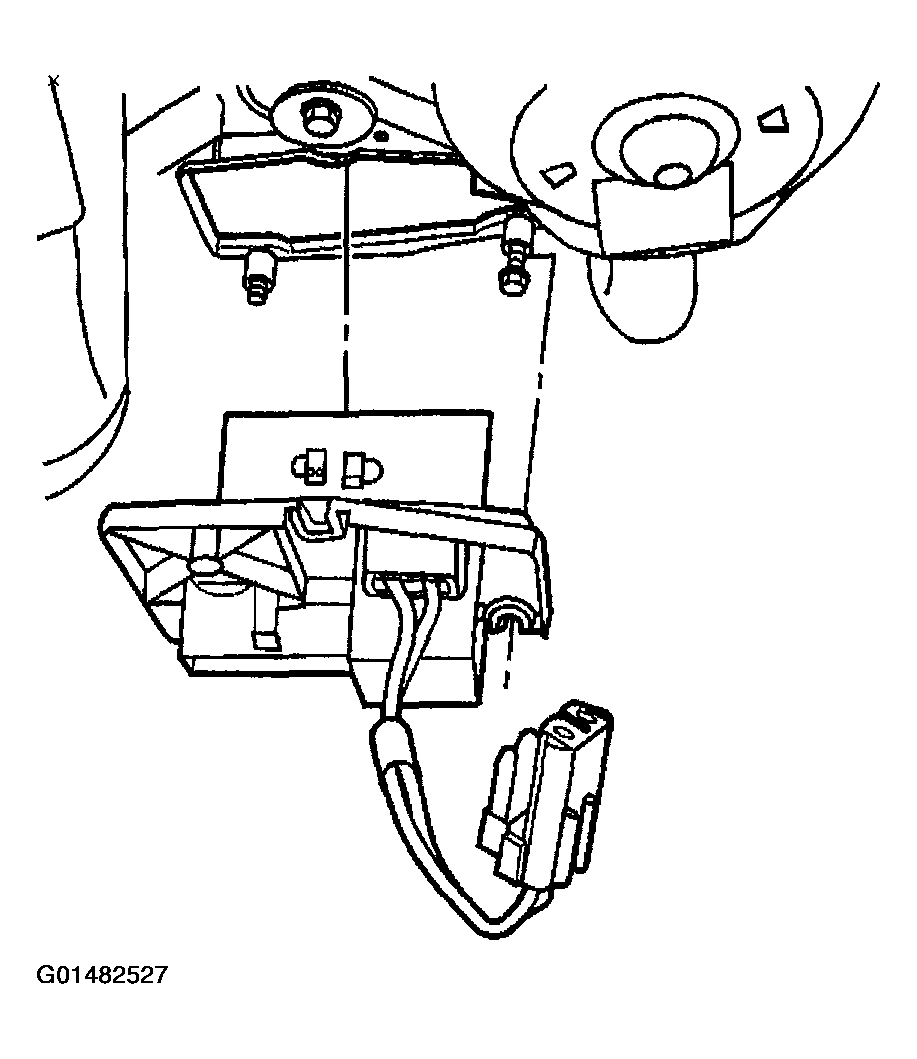

    Fig 3: Removing Blower Motor Resistor From HVAC Module Assembly
    G01482527Courtesy of GENERAL MOTORS CORP.
